Automatic Transmission (U151E)
›
Differential Case
›
Components
Differential Case: Components

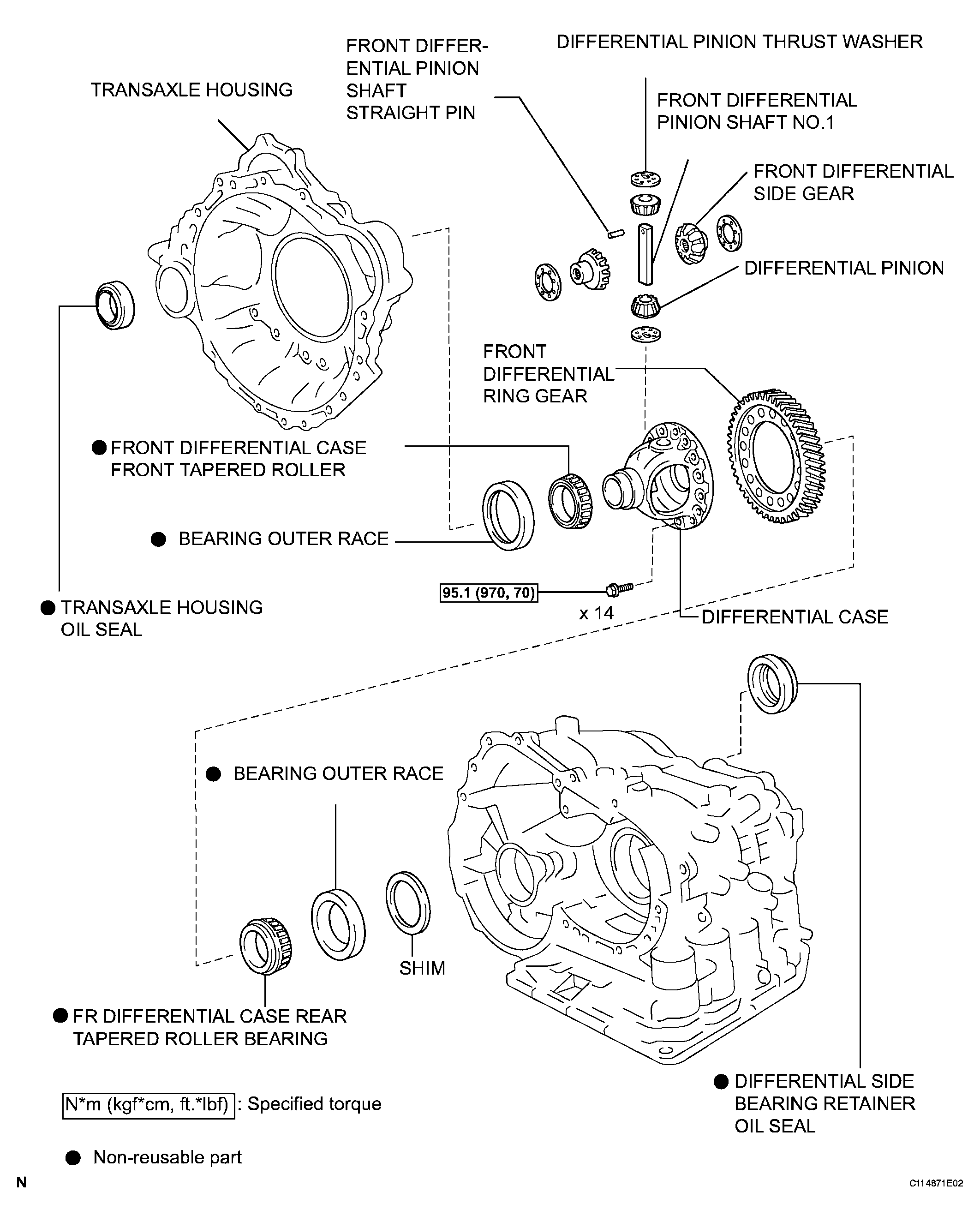

Fig 1: Differential Case Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
