Automatic Transmission (U151E)
›
Direct Clutch
›
Components
Direct Clutch: Components

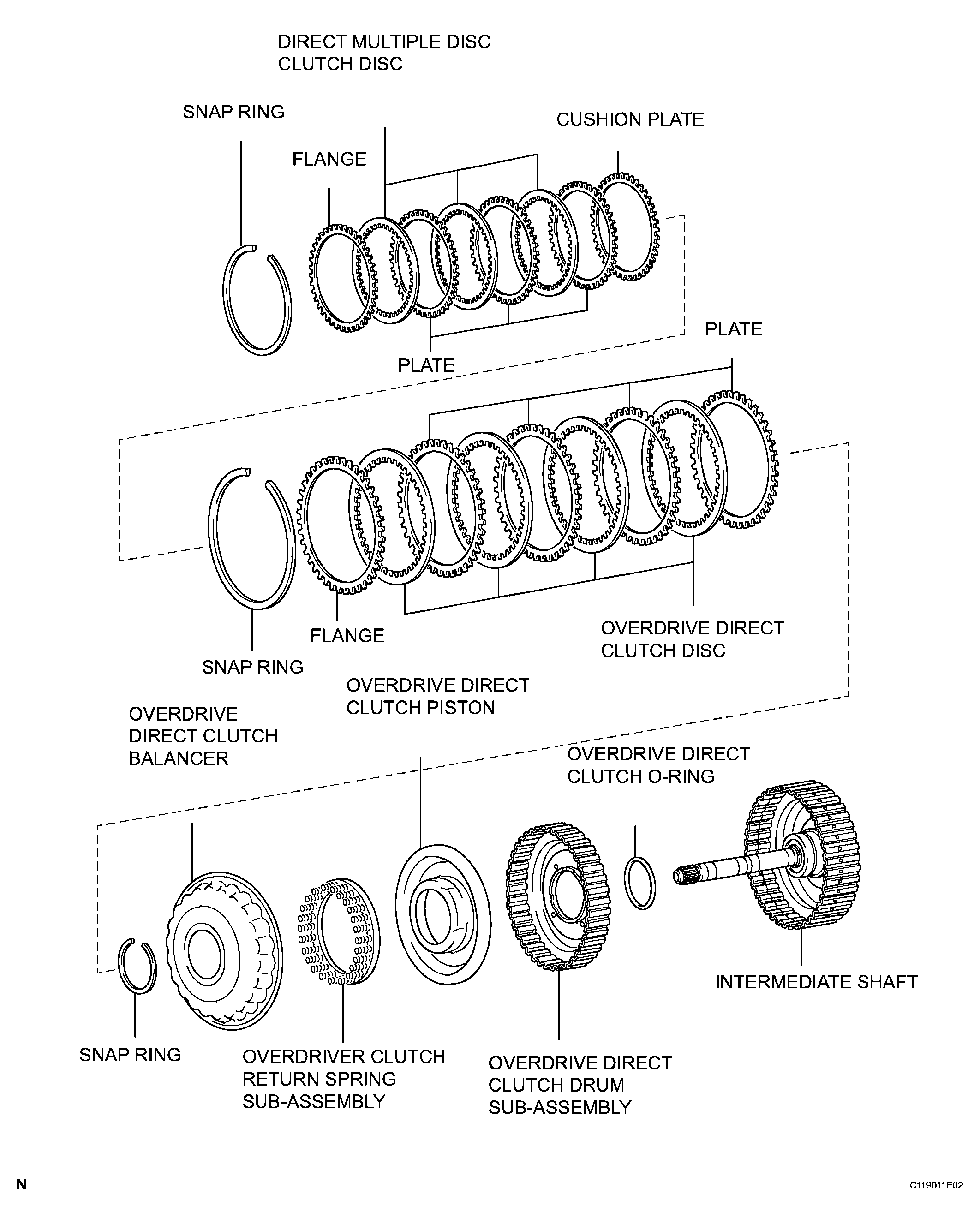

Fig 1: Identifying Direct Clutch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
