Transmission Control Cable Assembly: Installation

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the socket of the transmission control cable assembly to the shift lever assembly.
2. Connect the control cable end to the shift lever assembly.
3. Push the stopper cap to the socket as shown in the illustration.
4. Turn the socket of the transmission control cable assembly clockwise and install the stopper cap.

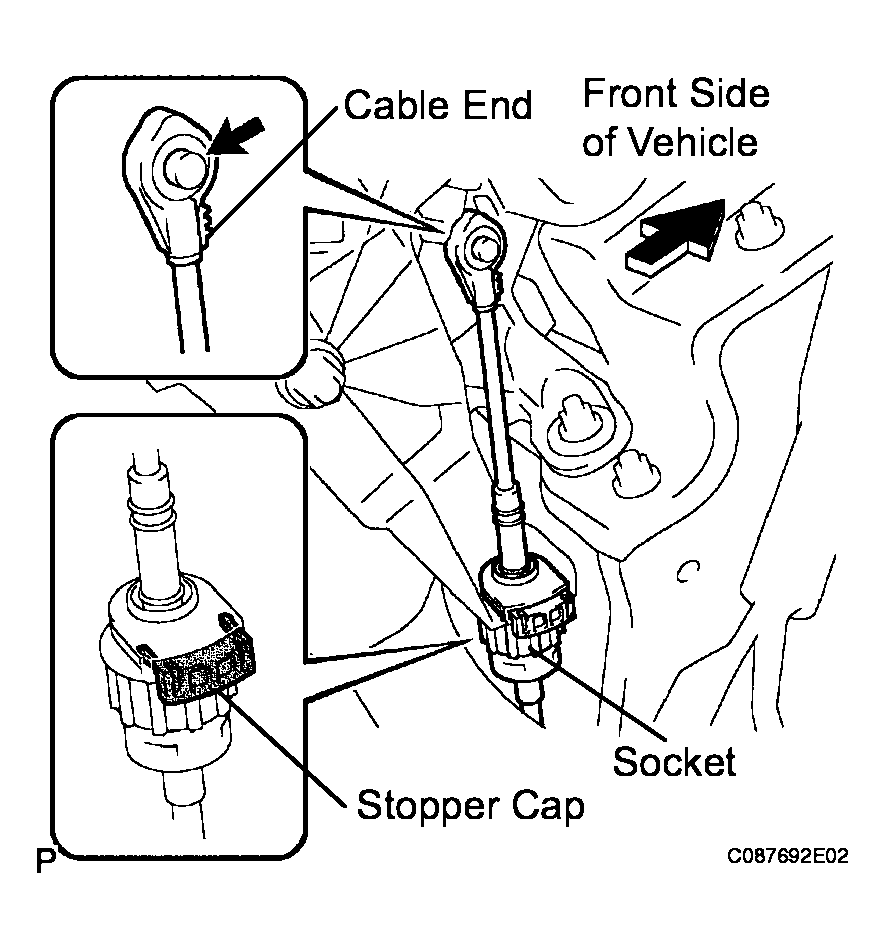

  Fig 1: Installing Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - To prevent torsion of the inner cable, the end with the eye should face up.
  - Push the cable end to the bottom of the pin.
  - Confirm that the connection between the socket and the shift lock control unit is fixed.
5. Install the transmission control cable assembly with the 3 bolts.
  Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

  Fig 2: Installing Transmission Control Cable Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the transmission control cable bracket No.2 with the bolt.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

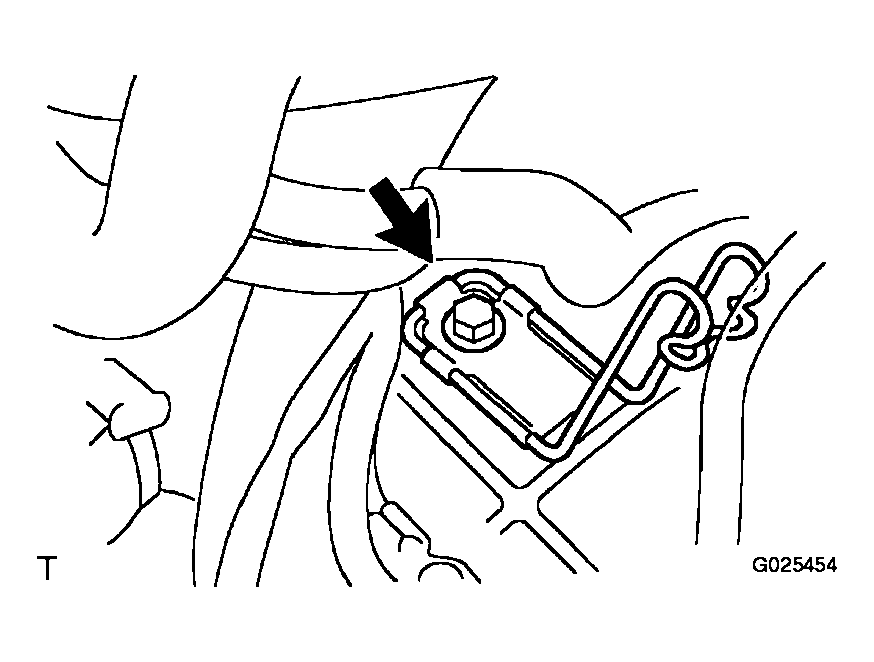

  Fig 3: Installing Transmission Control Cable Bracket No.2 With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Temporarily install the transmission control cable assembly to the control shaft lever with the nut.

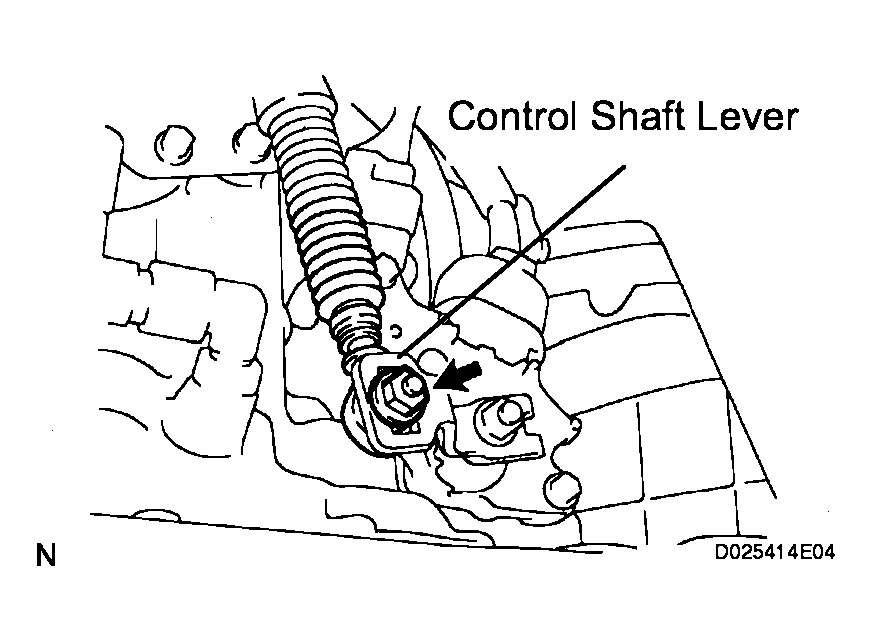

  Fig 4: Installing Transmission Control Cable Assembly To Control Shaft Lever With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

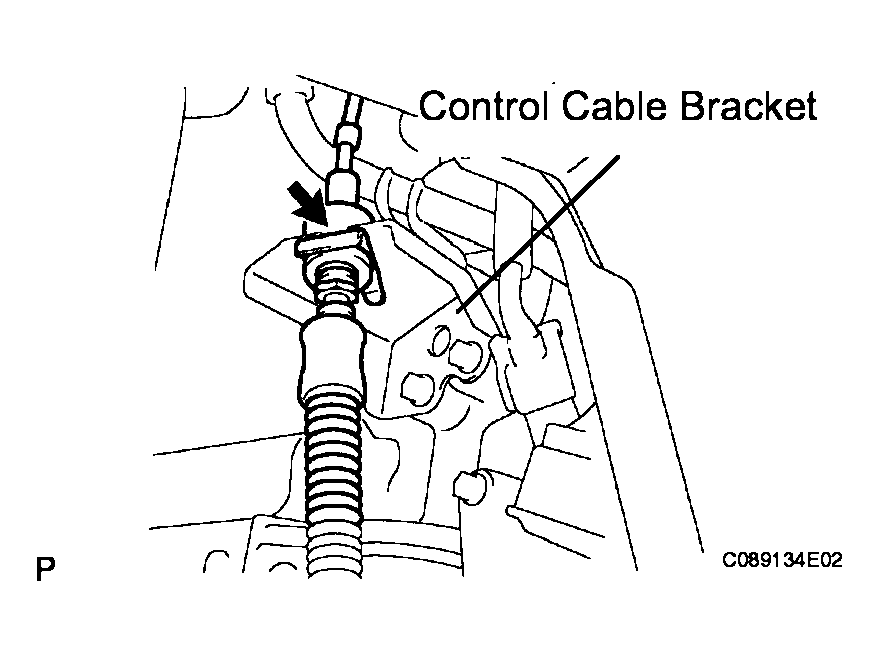

8. Connect the transmission control cable assembly with a new clip to the bracket.
INSTALL CENTER AIR BAG SENSOR ASSEMBLY
HINT:

(See INSTALLATION )

Fig 5: Installing Center Air Bag Sensor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CONDITIONER UNIT ASSEMBLY
HINT:

(See INSTALLATION )
INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY W/ PASSENGER AIR BAG ASSEMBLY
HINT:

(See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL ENGINE UNDER COVER NO.2
1. w/ Engine under cover No.2:
  Install the engine under cover No.2.
INSTALL ENGINE UNDER COVER NO. 1
INSTALL ENGINE UNDER COVER ASSEMBLY
1. w/ Engine under cover assembly:
  Install the engine under cover assembly.
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SRS WARNING LIGHT
HINT:

(See DIAGNOSIS SYSTEM )
