Transmission Control Cable Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE ENGINE UNDER COVER ASSEMBLY
1. w/ Engine under cover assembly:
  Remove the engine under cover assembly.
REMOVE ENGINE UNDER COVER NO. 1
REMOVE ENGINE UNDER COVER NO.2
1. w/ Engine under cover No.2:
  Remove the engine under cover No.2.
REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY W/ PASSENGER AIR BAG ASSEMBLY
HINT:

(See REMOVAL )
REMOVE AIR CONDITIONER UNIT ASSEMBLY
HINT:

(See REMOVAL )
REMOVE CENTER AIR BAG SENSOR ASSEMBLY
HINT:

(See REMOVAL )
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the nut from the control shaft lever.
2. Disconnect the transmission control cable assembly from the control shaft lever.

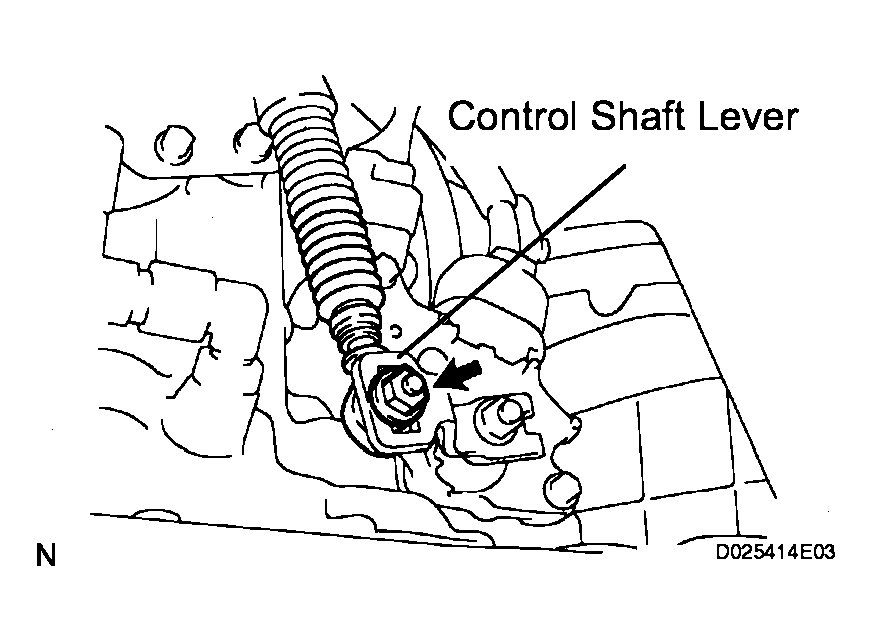

  Fig 1: Removing Nut From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the transmission control cable assembly from the control cable bracket.

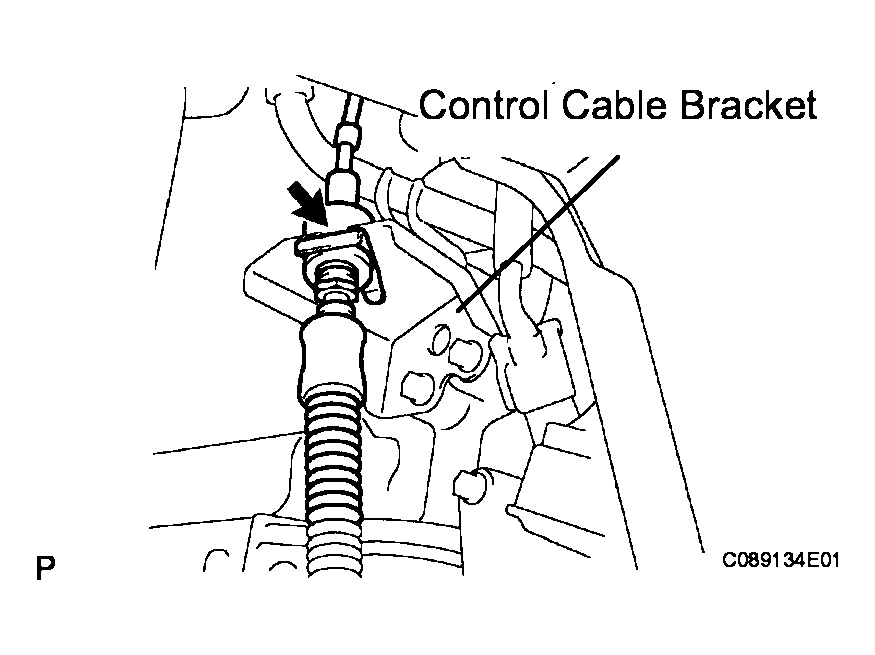

  Fig 2: Disconnecting Transmission Control Cable Assembly From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and transmission control cable bracket No.2.

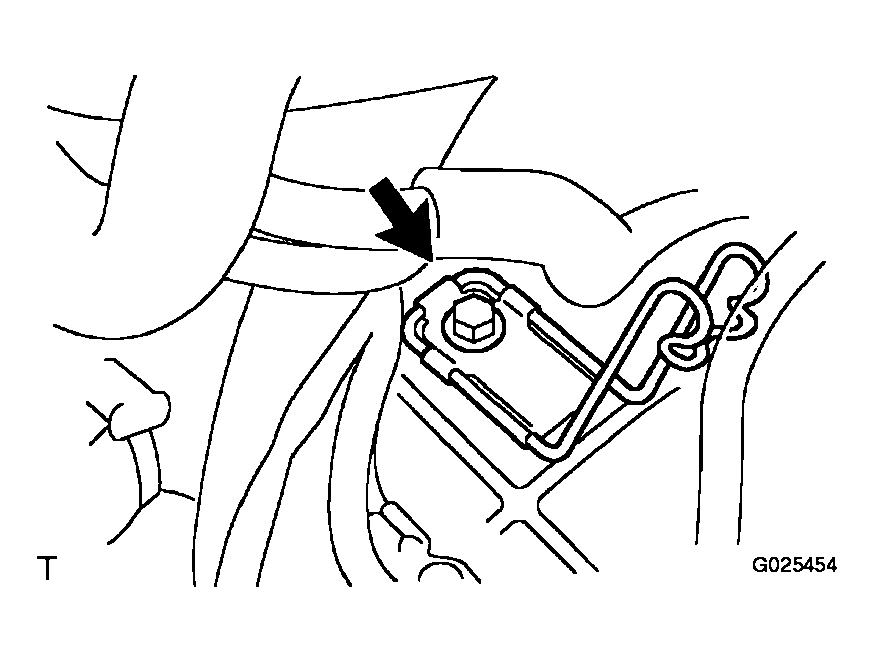

  Fig 3: Removing Bolt And Transmission Control Cable Bracket No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 bolts and disconnect the transmission control cable assembly from the vehicle.

  Fig 4: Disconnecting Transmission Control Cable Assembly From Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disconnect the cable end from the shift lever assembly.
7. Turn the socket of the transmission control cable assembly counterclockwise and remove the stopper cap.
8. Disconnect the transmission control cable assembly from the shift lever assembly.

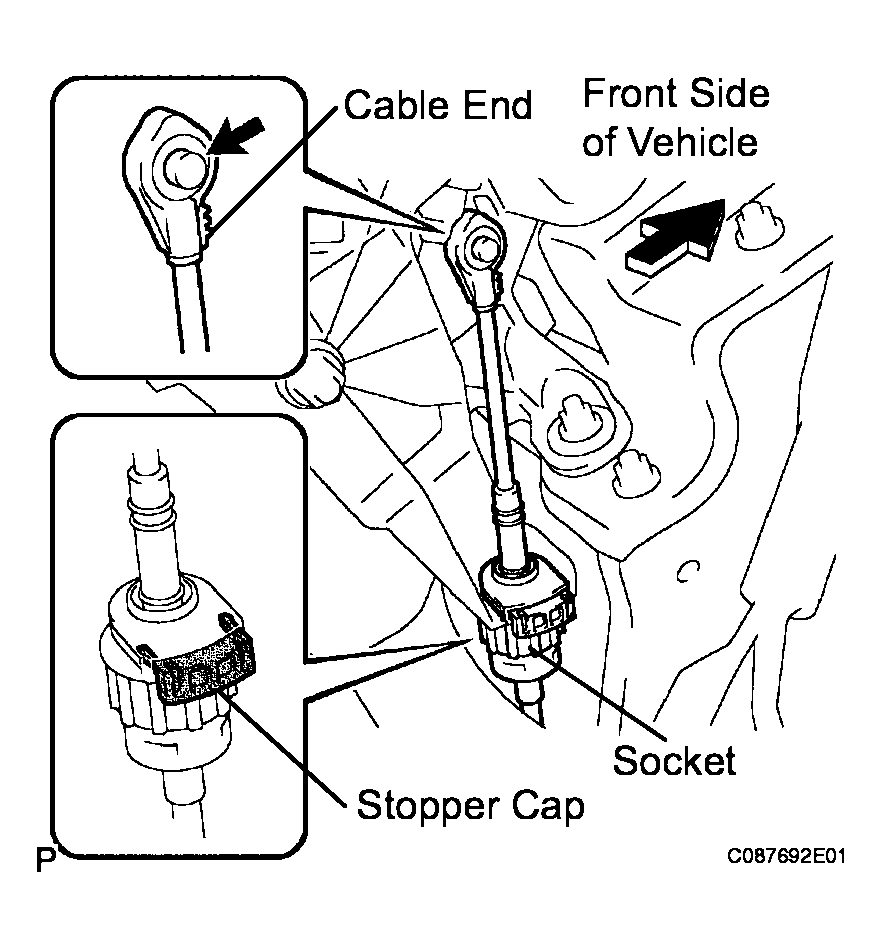

Fig 5: Disconnecting Transmission Control Cable Assembly From Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
