Valve Body Assembly: Components

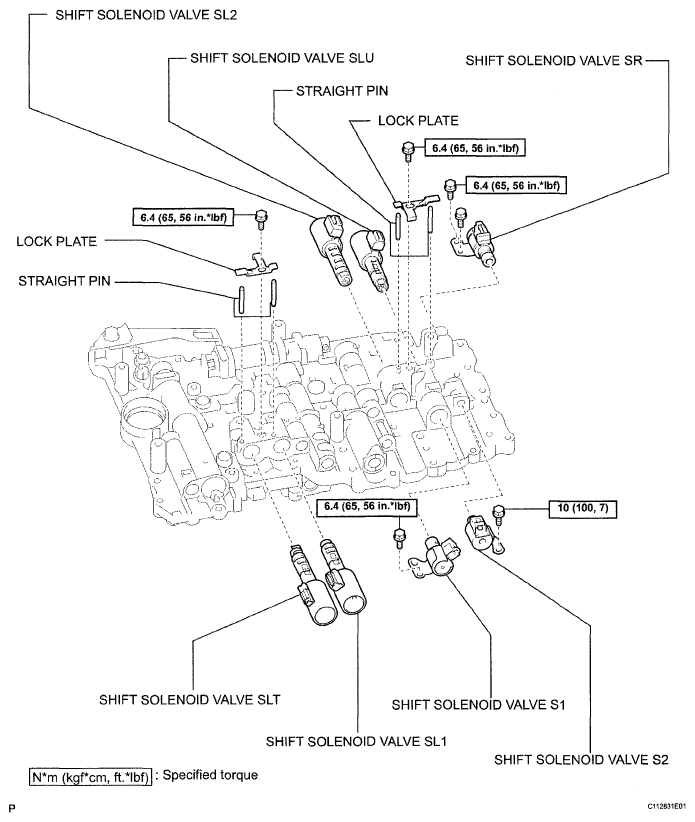

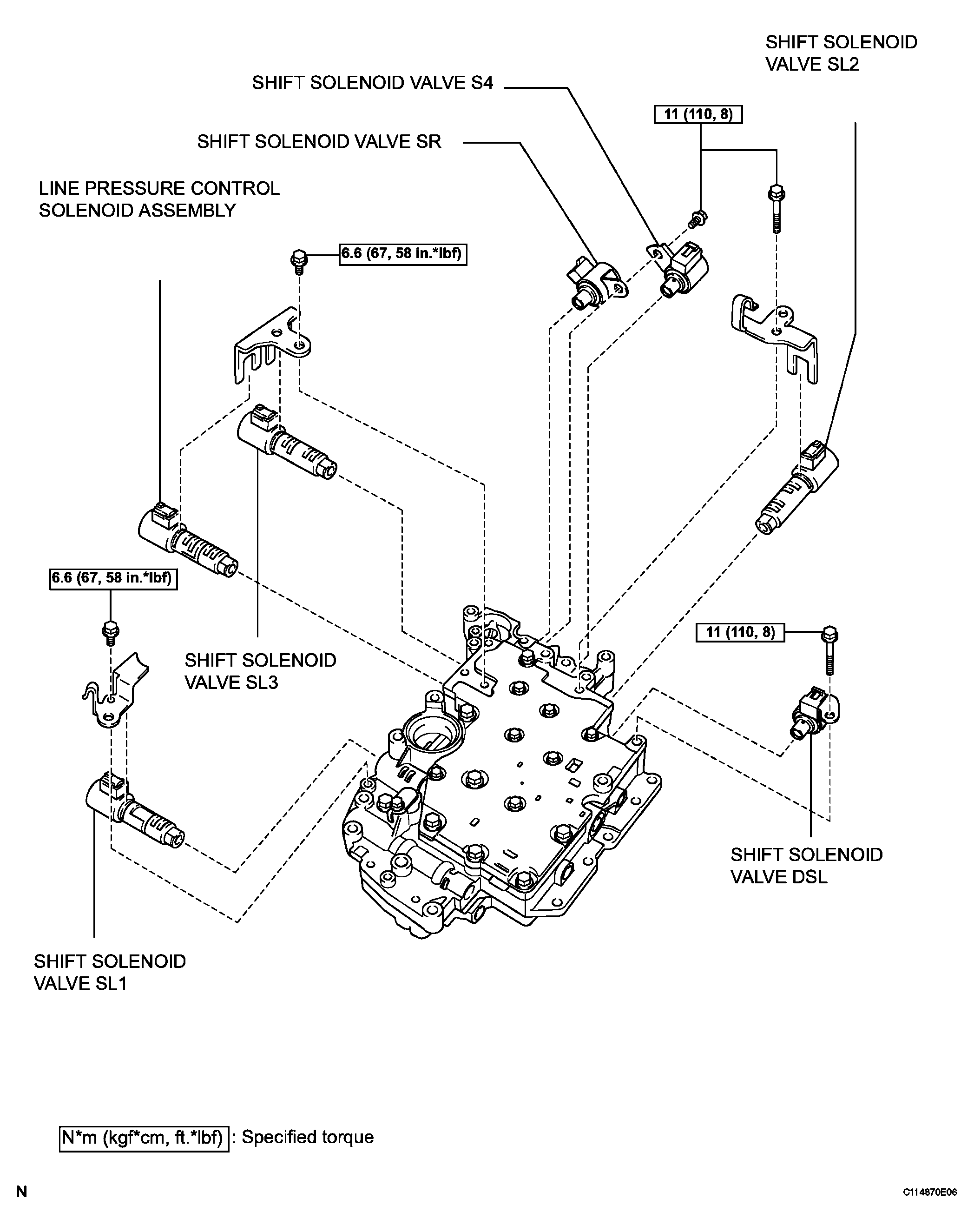

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications(1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

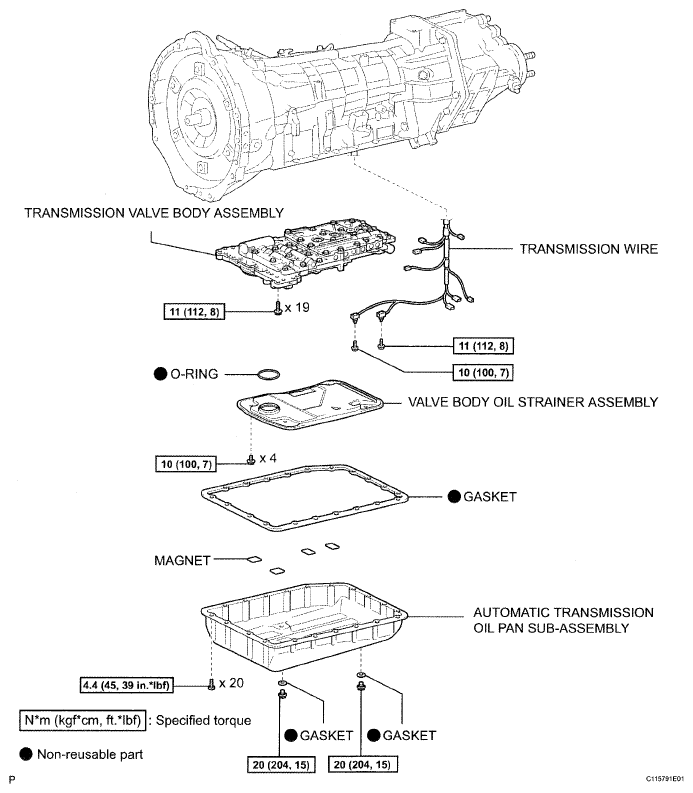

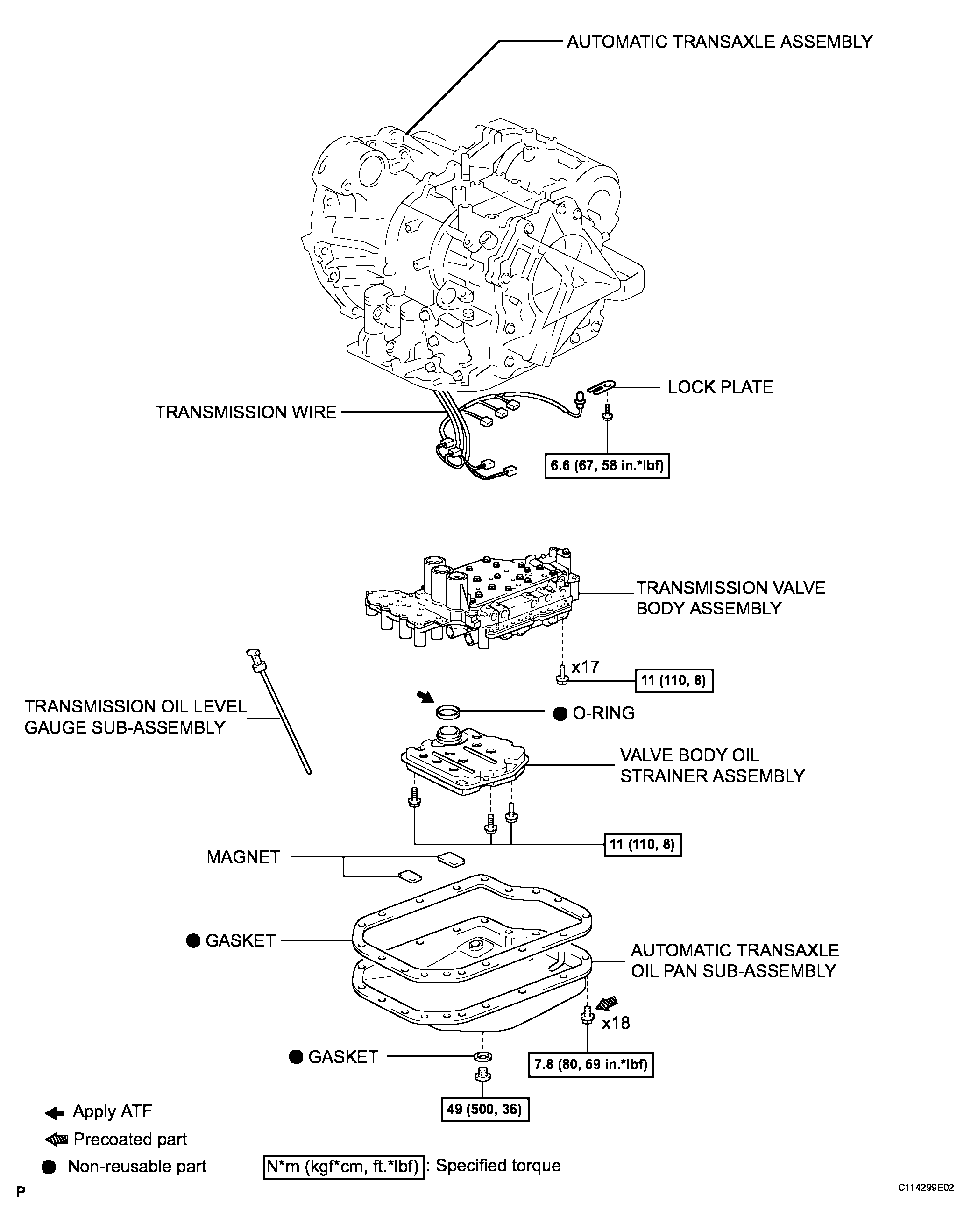

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
