Door Control Receiver: Components

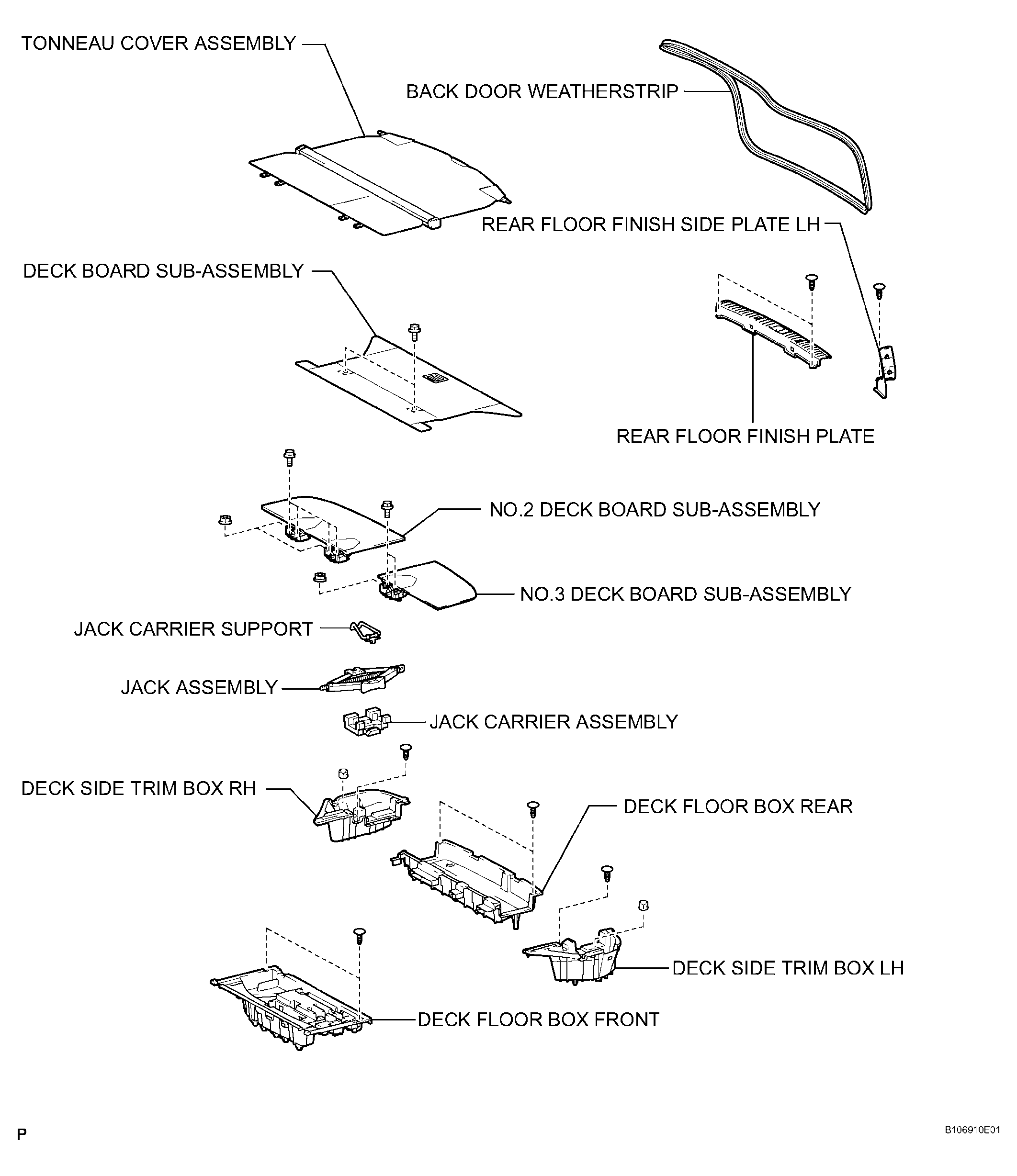

Fig 1: Identifying Door Control Receiver Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

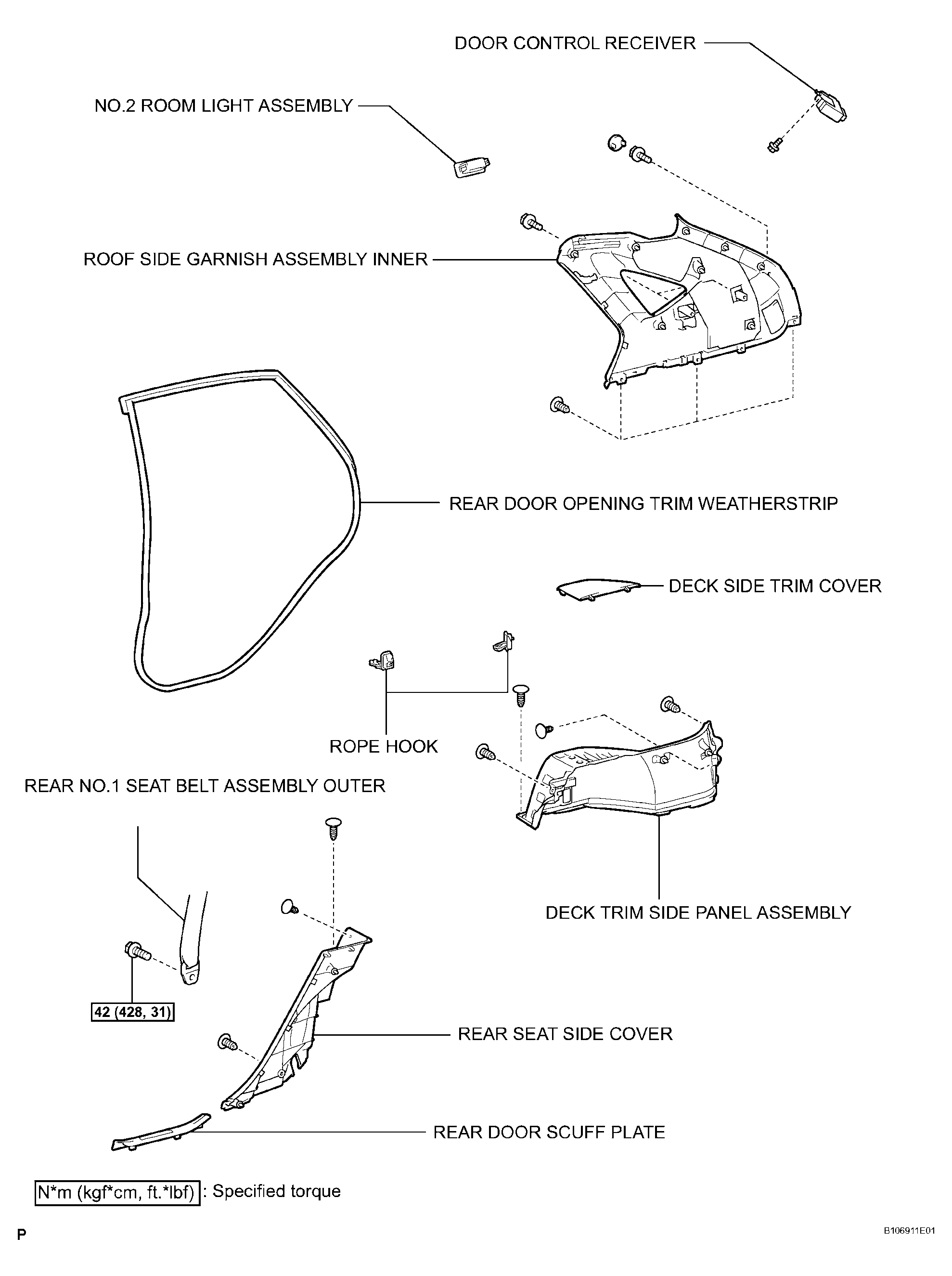

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVAL

1. REMOVE TONNEAU COVER ASSEMBLY
2. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
3. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
4. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
5. REMOVE NO.3 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
6. REMOVE NO.2 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
7. REMOVE BACK DOOR WEATHERSTRIP
8. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
9. REMOVE DECK SIDE TRIM BOX LH (See  REMOVAL  )
10. REMOVE DECK SIDE TRIM BOX RH
11. REMOVE REAR DOOR SCUFF PLATE (See  REMOVAL  )
12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
13. REMOVE DECK SIDE TRIM COVER (See  REMOVAL  )
14. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER (See  REMOVAL  )
15. REMOVE REAR SEAT SIDE COVER (See  REMOVAL  )
16. REMOVE REAR FLOOR FINISH SIDE PLATE (See  REMOVAL  )
17. REMOVE ROPE HOOK (See  REMOVAL  )
18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY (See  REMOVAL  )
19. REMOVE NO.2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
20. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER (See  REMOVAL  )
21. REMOVE DOOR CONTROL RECEIVER
    1. Disconnect the connector.
    2. Remove the bolt and the door control receiver.

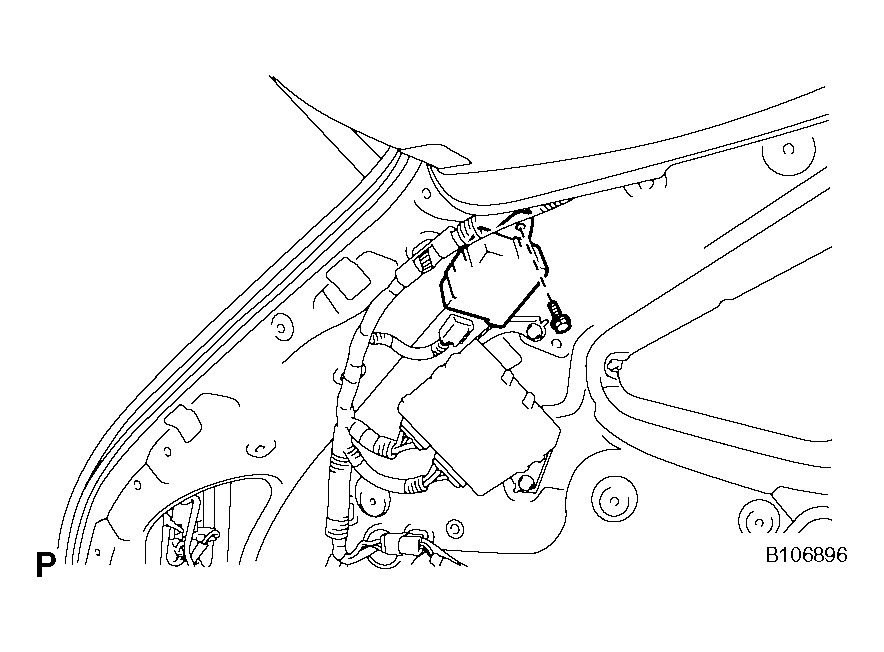

       Fig 3: Identifying Door Control Receiver

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
