Door Control Receiver: Installation

  1. INSTALL DOOR CONTROL RECEIVER
    1. Install the door control receiver with the bolt.
    2. Connect the connector.
  2. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER (See  INSTALLATION  )
  3. INSTALL NO.2 ROOM LIGHT ASSEMBLY (See  INSTALLATION  )
  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY (See  INSTALLATION  )
  5. INSTALL ROPE HOOK (See  INSTALLATION  )
  6. INSTALL REAR FLOOR FINISH SIDE PLATE (See  INSTALLATION  )
  7. INSTALL REAR SEAT SIDE COVER (See  INSTALLATION  )
  8. INSTALL REAR NO.1 SEAT BELT ASSEMBLY OUTER (See  INSTALLATION  )
  9. INSTALL DECK SIDE TRIM COVER (See  INSTALLATION  )
  10. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP
  11. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  12. INSTALL DECK SIDE TRIM BOX LH (See  INSTALLATION  )
  13. INSTALL DECK SIDE TRIM BOX RH
  14. INSTALL REAR FLOOR FINISH PLATE (See  INSTALLATION  )
  15. INSTALL BACK DOOR WEATHERSTRIP
  16. INSTALL NO.3 DECK BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  17. INSTALL NO.2 DECK BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  18. INSTALL DECK FLOOR BOX REAR (See  INSTALLATION  )
  19. INSTALL DECK FLOOR BOX FRONT (See  INSTALLATION  )
  20. INSTALL DECK BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  21. INSTALL TONNEAU COVER ASSEMBLY

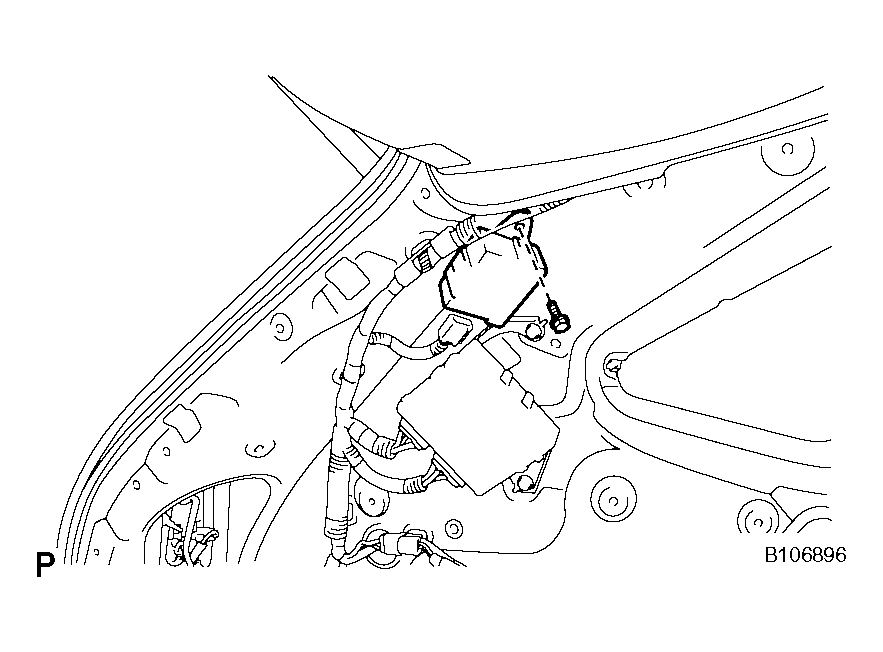

    Fig 1: Identifying Door Control Receiver With Bolt
    G04115353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
