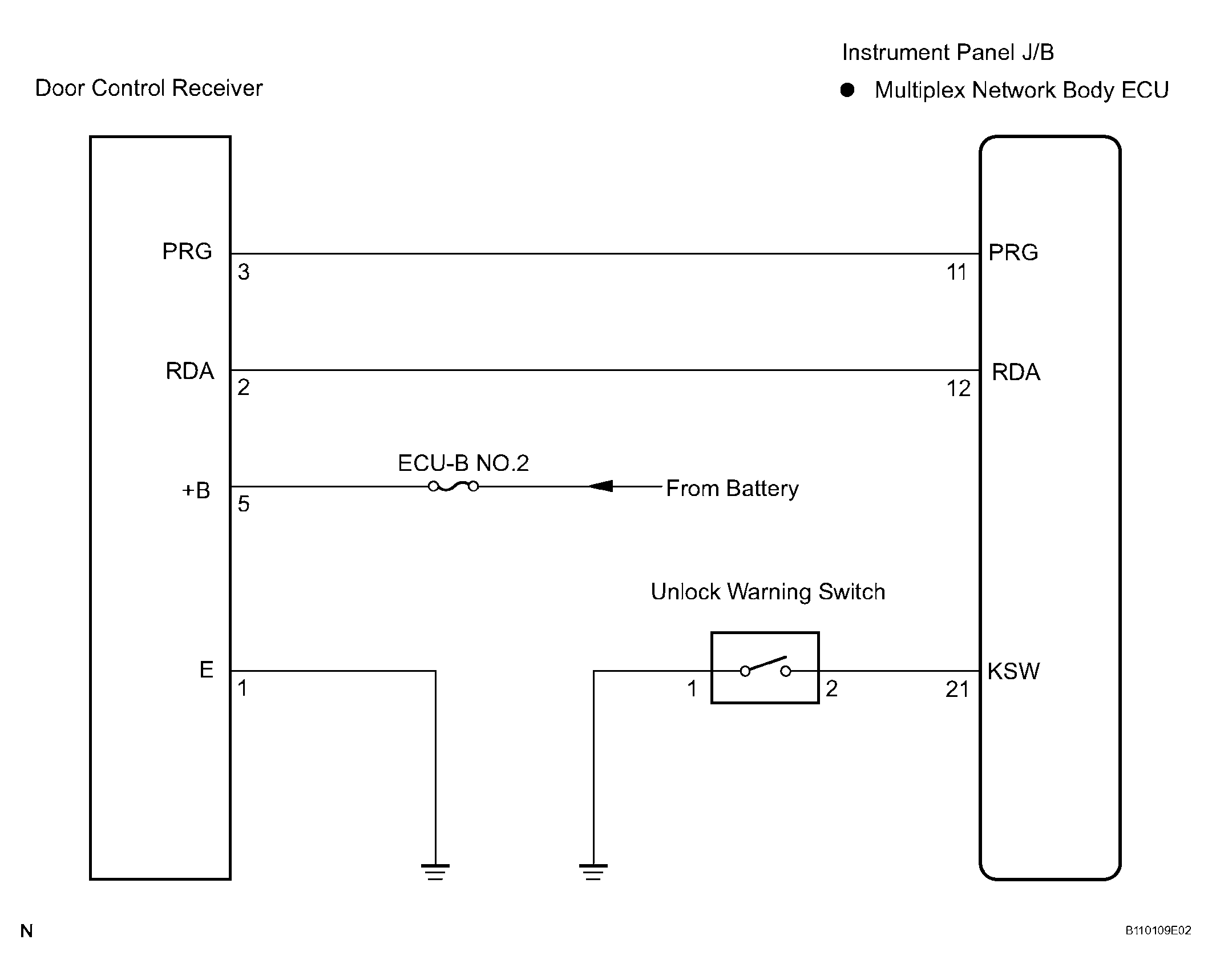

Only Wireless Control Function is Inoperative: Wiring Diagram

1. Check the wireless door lock control system (See OPERATION CHECK  ).

NG : Go to step 2

OK : END

1. Check that the door control transmitter's LED comes on 3 times when the switch is pressed 3 times.

   OK: The door control transmitter's LED comes on 3 times when the switch is pressed 3 times.

NG : Go to step   8

OK : GO TO NEXT STEP

1. Check that UNLOCK-LOCK operates in normal operation.

   HINT:

   Standardized test procedure: Press the transmitter switch for 1 second, directing the beam to the driver's door outside handle from a distance of 1 m (3.28 ft). The transmitter should be pointed directly at the door handle, i.e. at 90° angle to the vehicle body.

NG : REPLACE TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

OK : GO TO NEXT STEP

1. Check if the wireless door lock buzzer sounds.

   Result

   RESULT REFERENCE



   Condition	Proceed to
   Buzzer sounds	A
   Buzzer does not sound	B (See NO ANSWER-BACK (HAZARD WARNING LIGHT AND WIRELESS DOOR LOCK BUZZER)  )

B : GO TO FLOW CHART

A : GO TO NEXT STEP

1. Switch to self-diagnostic mode using the intelligent tester.
   1. Connect the intelligent tester to the DLC3.
   2. Turn the ignition switch to the ON position and turn the intelligent tester main switch on.

      HINT:

      Refer to the intelligent tester operator's manual for further details.

2. Switch to self-diagnostic mode by performing the following:
   1. Put the vehicle under the initial condition (See OPERATION CHECK  ).
   2. Insert the key into the ignition key cylinder and remove it.
   3. Within 5 seconds after the key is removed, insert the key into the ignition key cylinder again.
   4. Turn the ignition switch to the ON position and turn it back to the LOCK position.
   5. Within 30 seconds of turning the ignition switch off again, perform the following 9 times: Turn the ignition switch to the ON position and turn it back to the LOCK position.

      HINT:

      • Turning the ignition switch to the ON position after step 5 has been completed will end the self-diagnostic mode.
      • Do not lock or unlock doors during the self-diagnostic mode.
      NOTE: If the self-diagnostic mode cannot be achieved, the system will return to normal mode.
3. Check that the system has switched to self-diagnostic mode by checking the sound of the wireless door lock buzzer.

   OK: The sound pattern of the wireless door lock buzzer should be the same as the patterns shown in the timing chart on the left.

NG : Go to step   10

Fig 2: Identifying Sound Pattern Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Check the diagnostic outputs when the door control transmitter switch is held down. The diagnostic outputs can be checked by the sound of the wireless door lock buzzer.

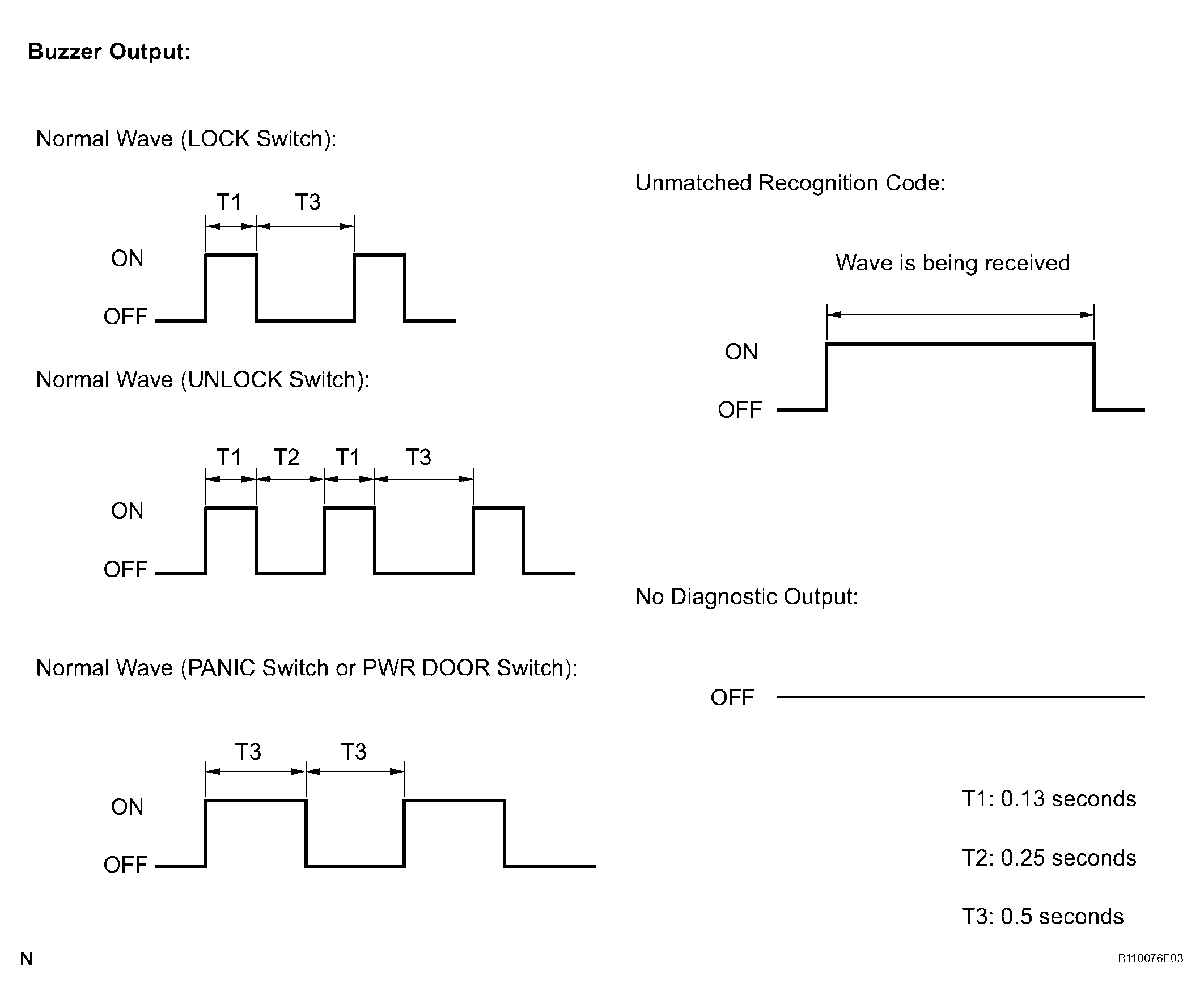

   Fig 3: Identifying Sound Pattern Graph Of Wireless Door Lock Buzzer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   RESULT REFERENCE



   Condition	Proceed to
   Unmatched recognition code is output	A
   Normal waves patterns from the wireless door lock buzzer are output for LOCK, UNLOCK, PANIC and PWR DOOR	B
   No diagnostic outputs are recorded	C

B : REPLACE INSTRUMENT PANEL JUNCTION BLOCK

C : Go to step   9

A : GO TO NEXT STEP

1. Check that the system can switch to the rewrite mode or add mode and whether a recognition code can be registered.

   OK: The system can switch to the rewrite mode or add mode, and a recognition code can be registered.

NG : Go to step   17

OK : END

1. Replace the existing battery with a new or normally functioning one and check that the transmitter LED comes on 3 times when the switch is pressed 3 times.

NG : REPLACE TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

OK : REPLACE TRANSMITTER BATTERY

1. Press and hold down any switch on a new or normal door control transmitter for the same vehicle type and check that an unmatched recognition code is output.

   OK: Unmatched recognition code is output.

NG : Go to step   14

OK : REPLACE TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

1. Confirm input method for self-diagnostic mode.

   Result

   RESULT REFERENCE



   Condition	Proceed to
   Method for changing system self-diagnostic mode works	A
   Method for changing system self-diagnostic mode does not work	B

B : Go to step   5

A : GO TO NEXT STEP

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to the ON position and turn the intelligent tester main switch on.
3. Select the item below in the DATA LIST and read the display on the intelligent tester.

   BODY:

   DATA LIST REFERENCE CHART



   Item (Display)	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   KEY UNLK WRN SW	Unlock warning switch / ON or OFF	ON: Ignition key is inserted OFF: Ignition key is not inserted	-

   OK: When the ignition key is operated, the display changes as shown above.

OK : Go to step   14

NG : GO TO NEXT STEP

1. Disconnect the unlock warning switch connector.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   1 - 2	Switch pressed (Key set)	Below 1 Ω
   1 - 2	Switch free (Key removed)	10 kΩ or higher

NG : REPLACE UNLOCK WARNING SWITCH

Fig 4: Inspecting Unlock Warning Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the multiplex network body ECU (B4) connector.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   B4-21 (KSW) - K4-2	Always	Below 1 Ω
   B4-21 (KSW) - Body ground	Always	10 kΩor higher
   K4-1 - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

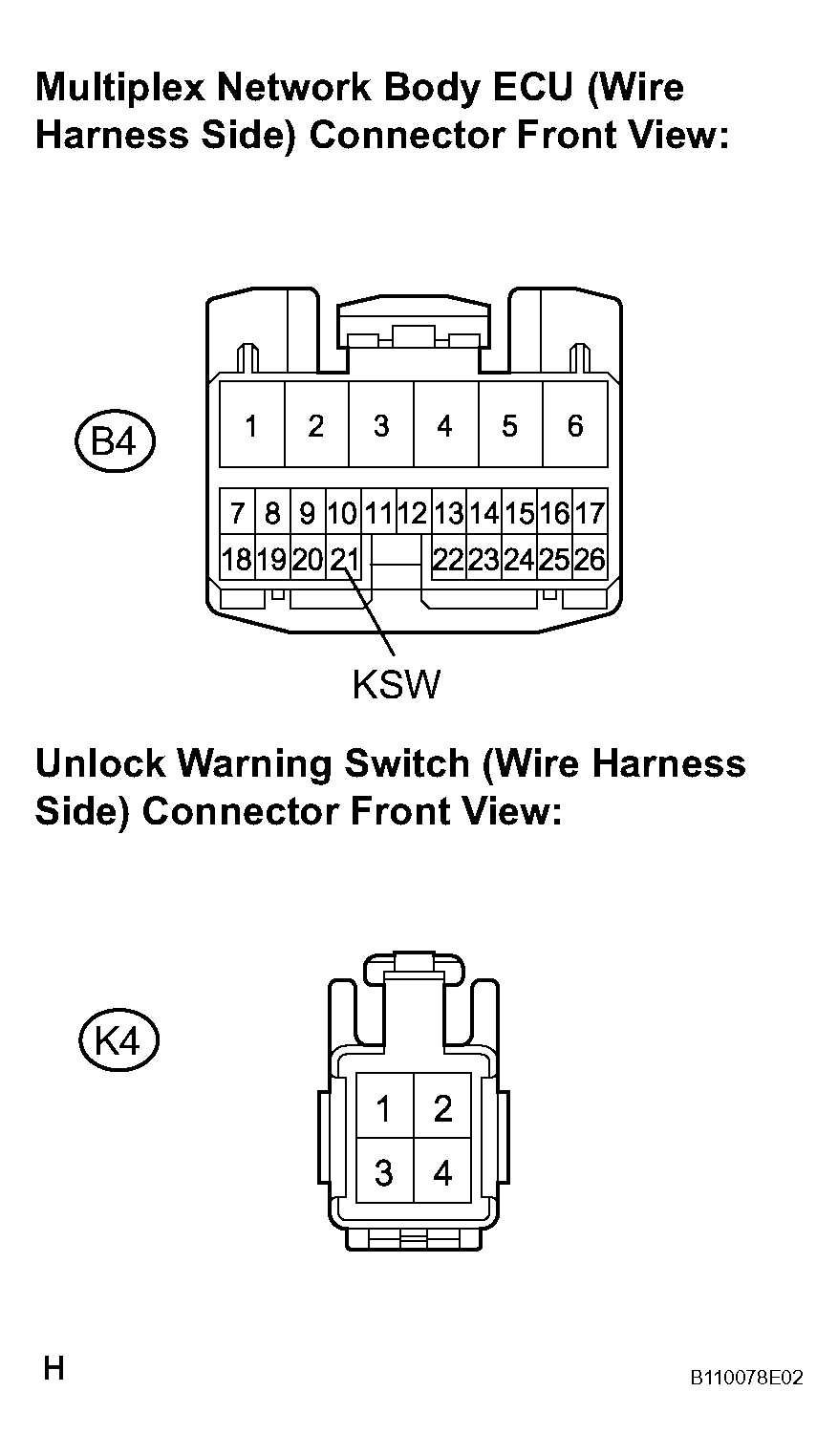

Fig 5: Identifying Multiplex Network Body ECU To Unlock Warning Switch Connectors Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the door control receiver connector.
2. Measure the voltage according to the value(s) in the table below.

   Voltage

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D3-5 (+B) - Body ground	Always	10 to 14 V

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (+B CIRCUIT)

Fig 6: Identifying Door Control Receiver Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D3-1 (E) - Body ground	Always	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (E CIRCUIT)

Fig 7: Identifying Door Control Receiver Connector (E Terminal)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the multiplex network body ECU (B6) connector.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   B6-11 (PRG) - D3-3 (PRG)	Always	Below 1 Ω
   B6-11 (PRG) - Body ground	Always	10 kΩor higher
   B6-12 (RDA) - D3-2 (RDA)	Always	Below 1 Ω
   B6-12 (RDA) - Body ground	Always	10 kΩor higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

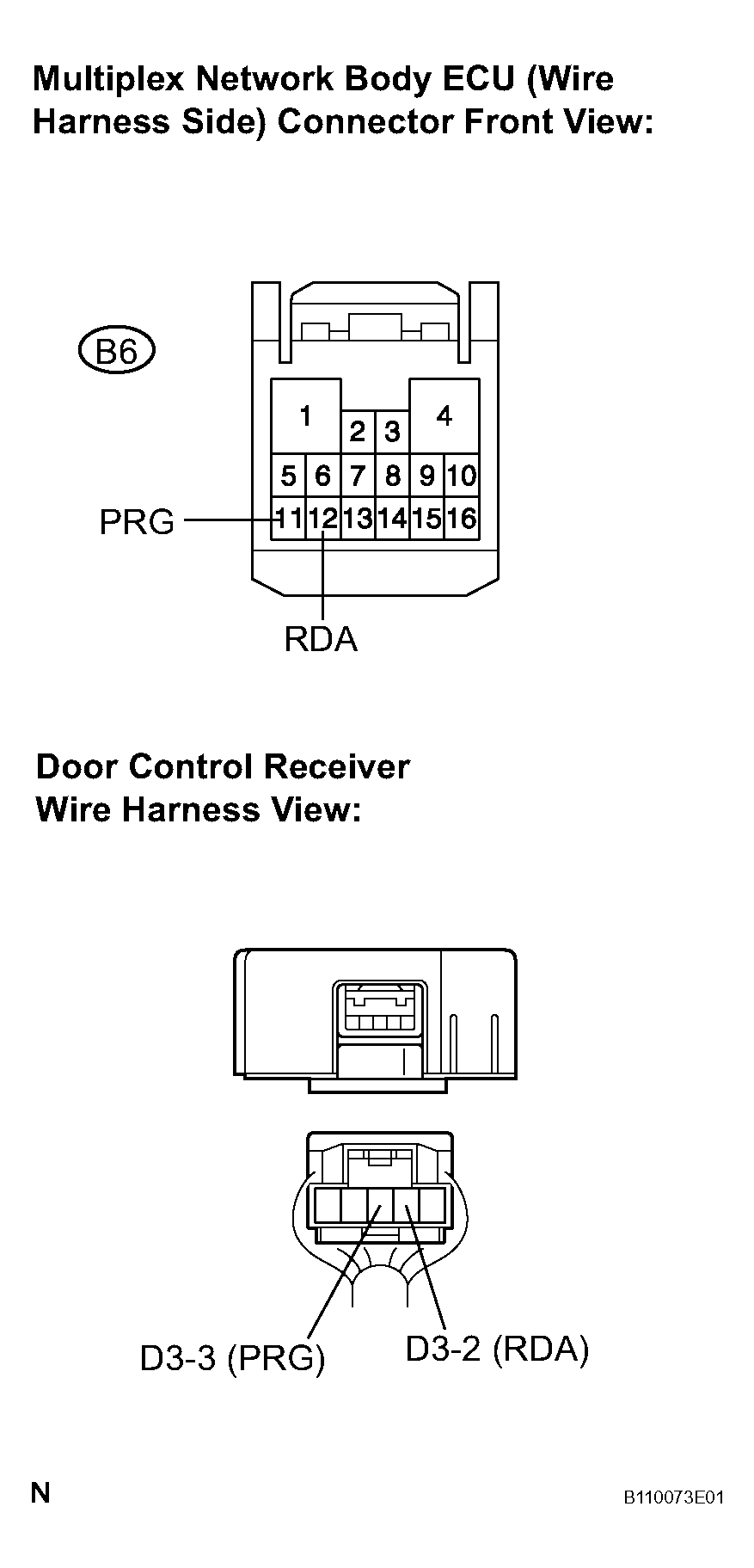

Fig 8: Identifying Multiplex Network Body ECU (B6) Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

OK: The system returns to normal operation.

NG : REPLACE INSTRUMENT PANEL JUNCTION BLOCK

OK : REPLACE DOOR CONTROL RECEIVER
