Power Point Socket: Installation

  1. INSTALL POWER POINT SOCKET COVER
    1. Engage the 2 claws and install the power point socket cover.
      Fig 1: Identifying Power Point Socket Cover
      G04115998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER POINT SOCKET
    1. Place the power point socket with the notch on the power point socket cover, and push in the power point socket as hard as possible to install it.

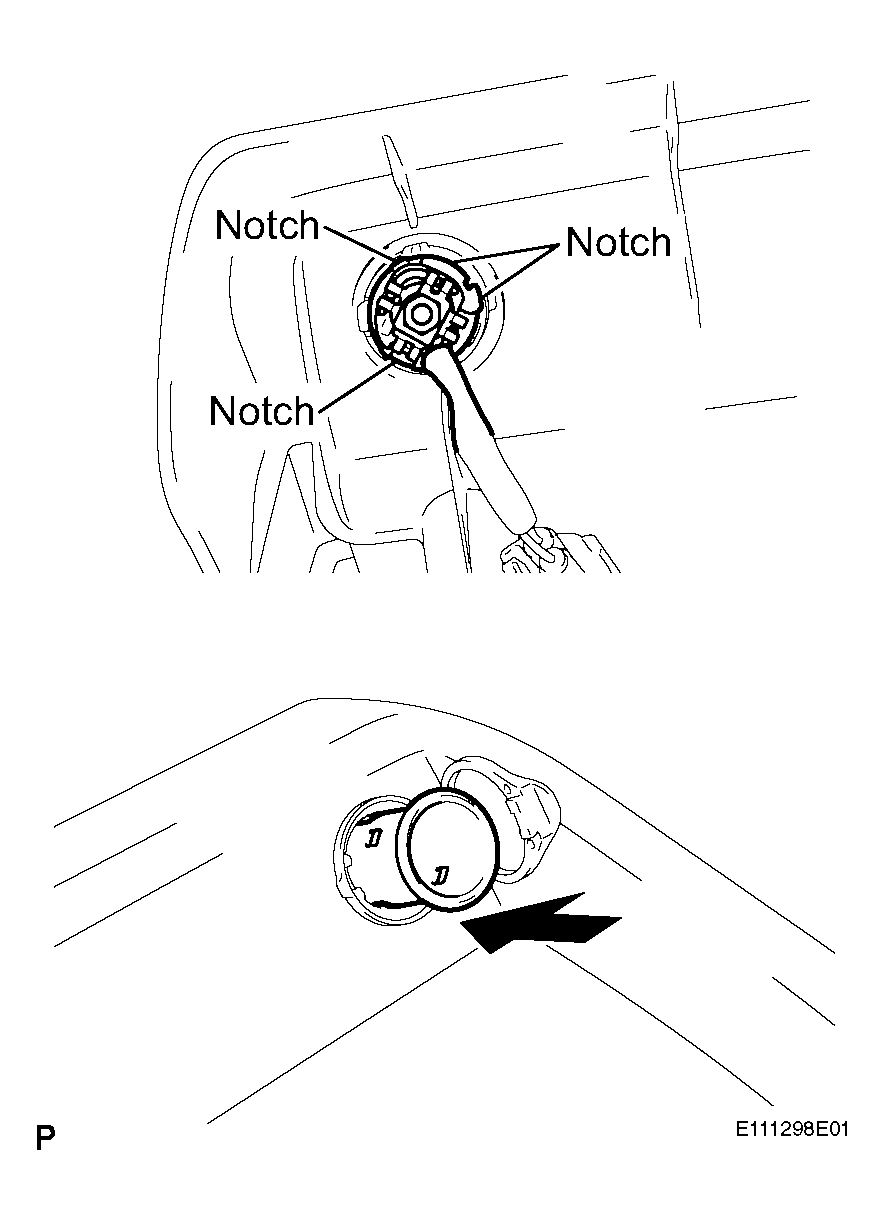

    Fig 2: Identifying Power Point Socket
    G04115999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CONSOLE COVER LOWER
  4. INSTALL REAR CONSOLE BOX (See  INSTALLATION  )
  5. INSTALL NO. 2 CONSOLE BOX HOLE COVER (See  INSTALLATION  )
  6. INSTALL CONSOLE BOX HOLE COVER (See  INSTALLATION  )
