Ground Point: Notes

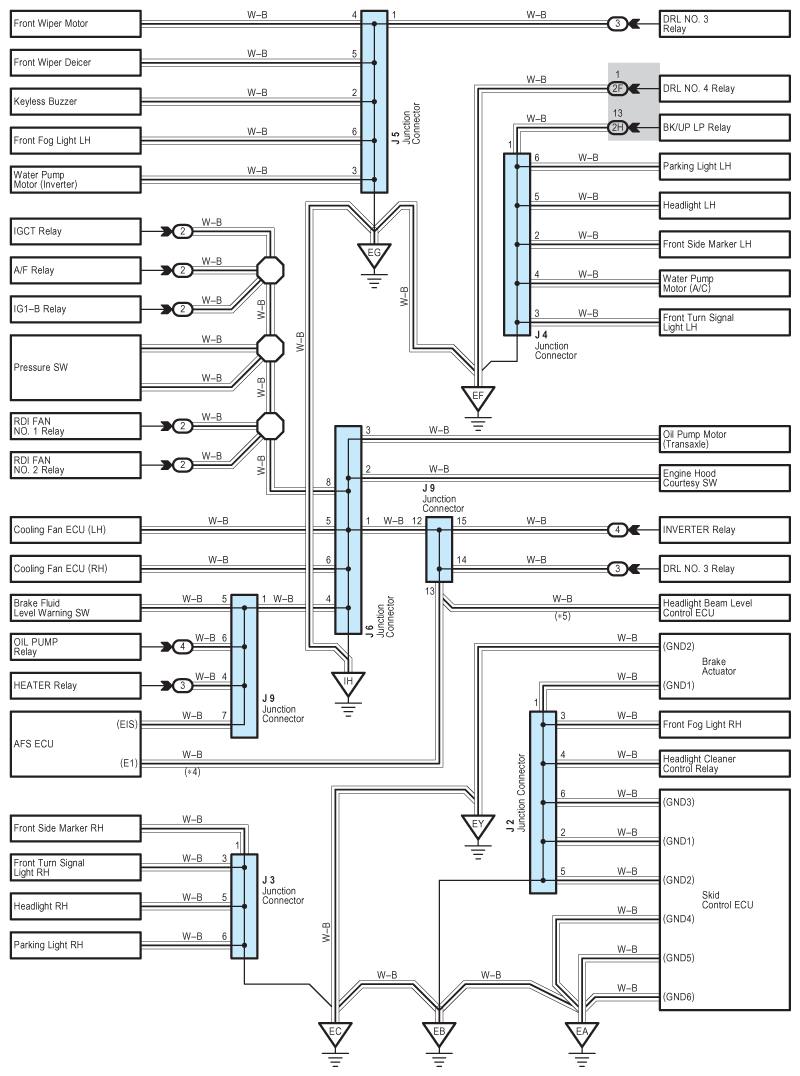

Fig 1: Ground Point System Wiring Diagram (1 Of 5)
G08914921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

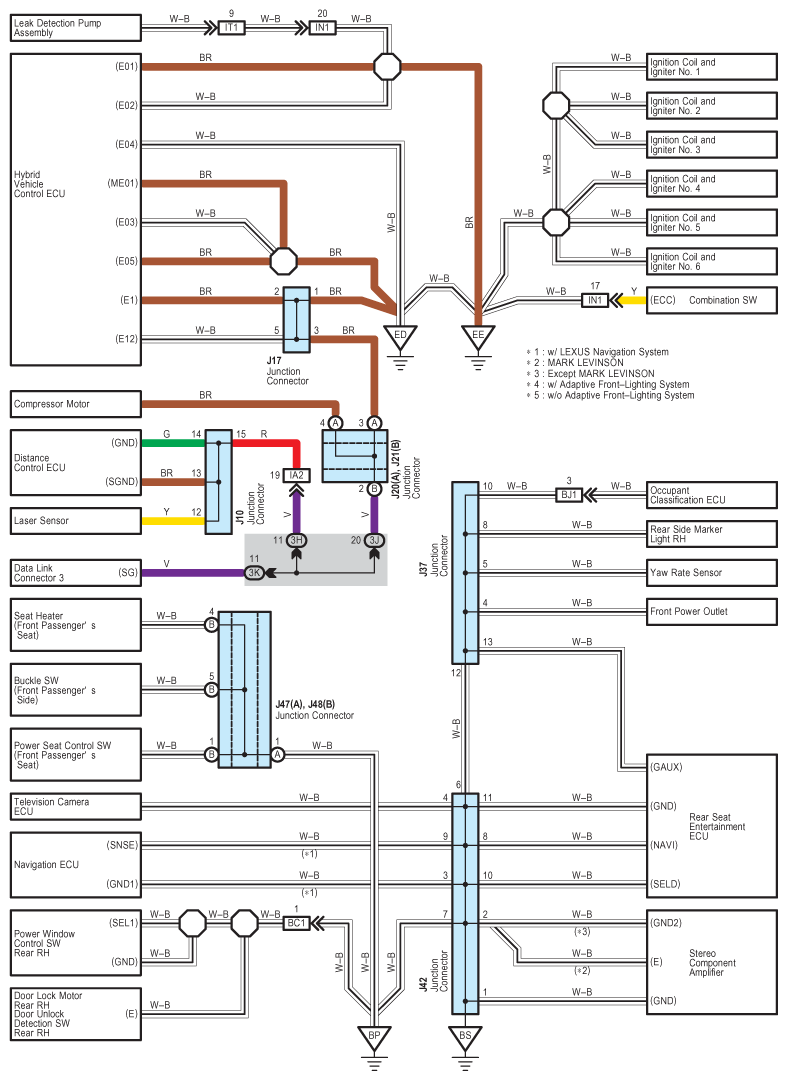

Fig 2: Ground Point System Wiring Diagram (2 Of 5)
G08914922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

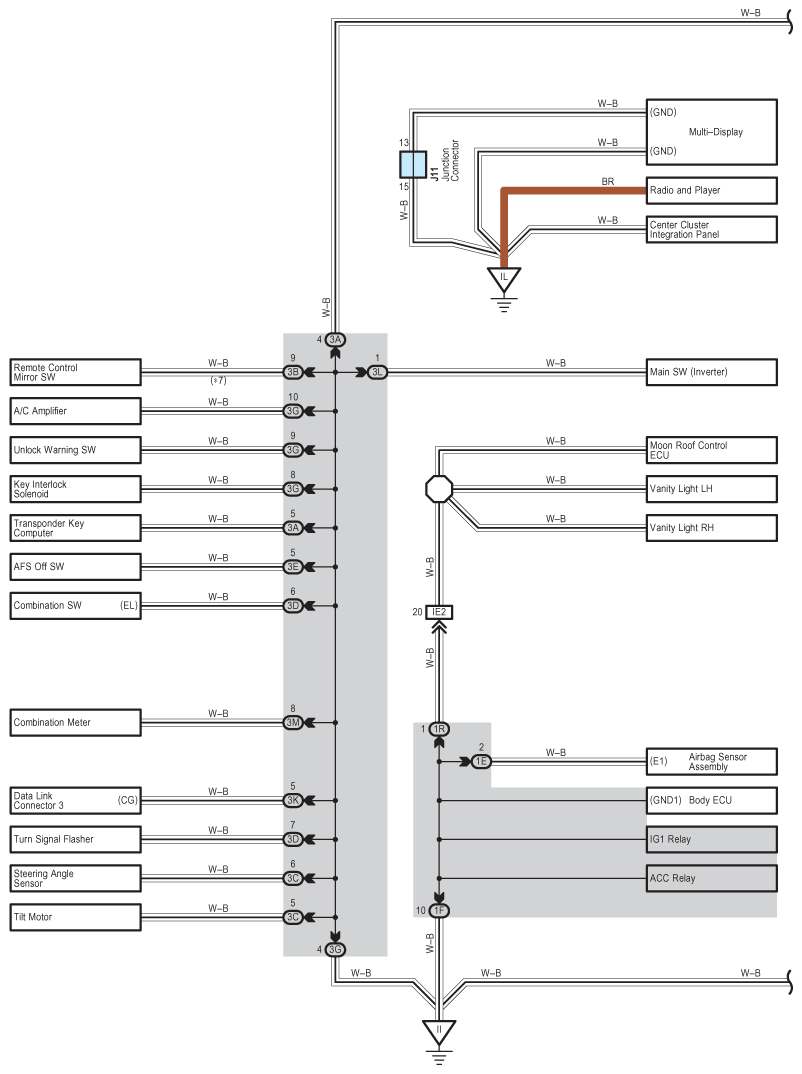

Fig 3: Ground Point System Wiring Diagram (3 Of 5)
G08914923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

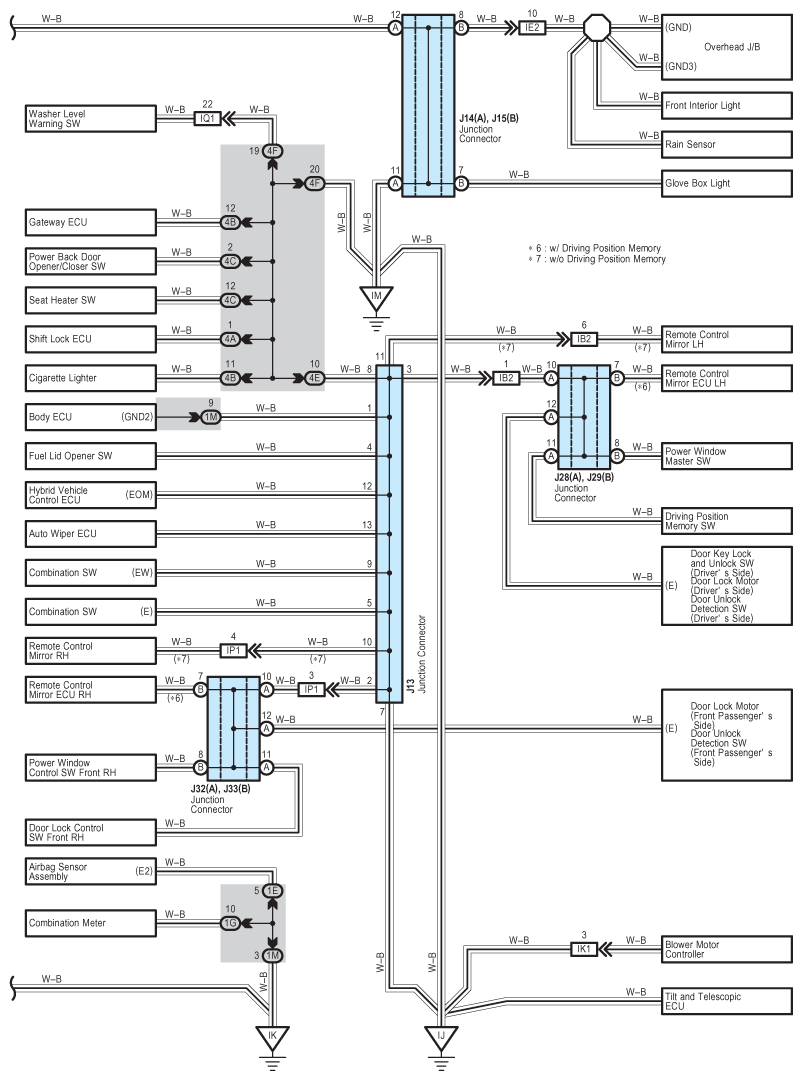

Fig 4: Ground Point System Wiring Diagram (4 Of 5)
G08914924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

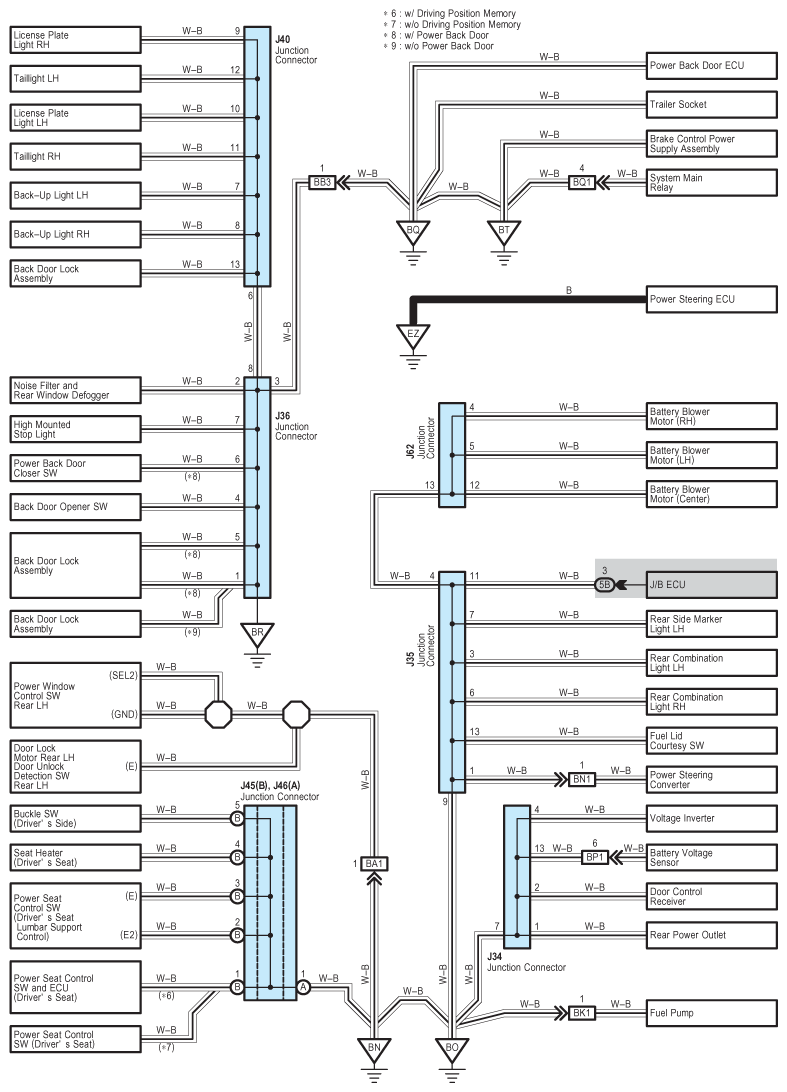

Fig 5: Ground Point System Wiring Diagram (5 Of 5)
G08914925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
