Front Fog Light: Notes

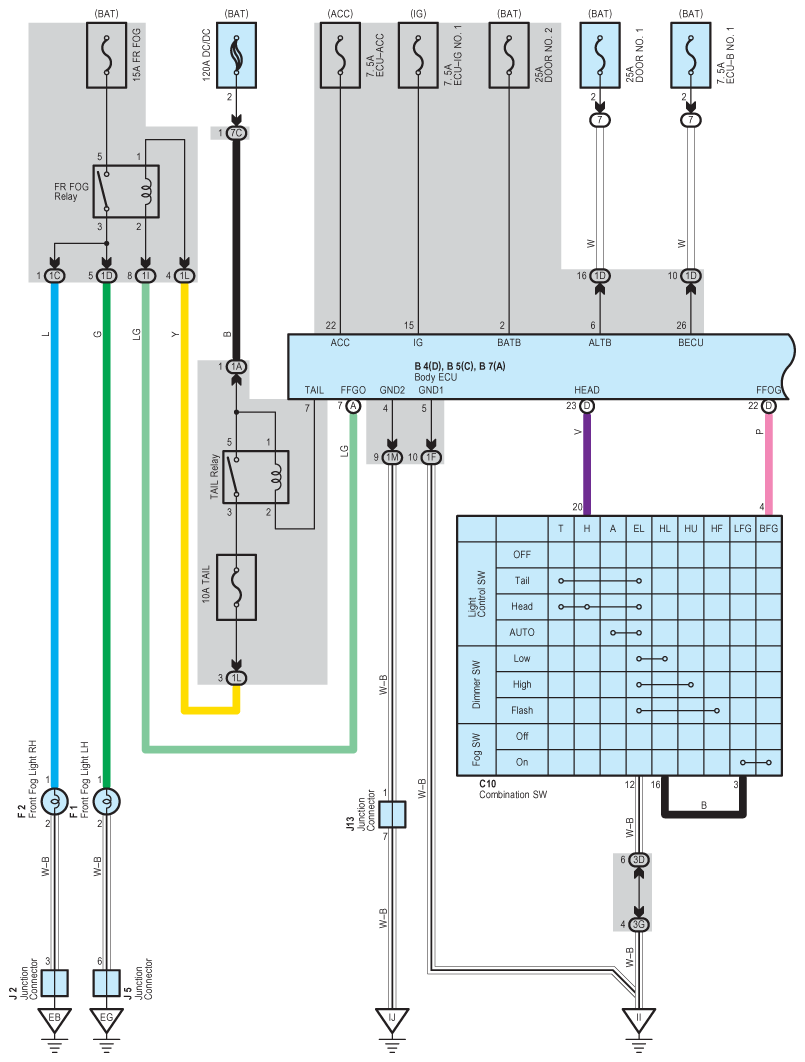

Fig 1: Front Fog Light Wiring Diagram (1 Of 3)
G08914753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Fog Light Wiring Diagram (2 Of 3)
G08914754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

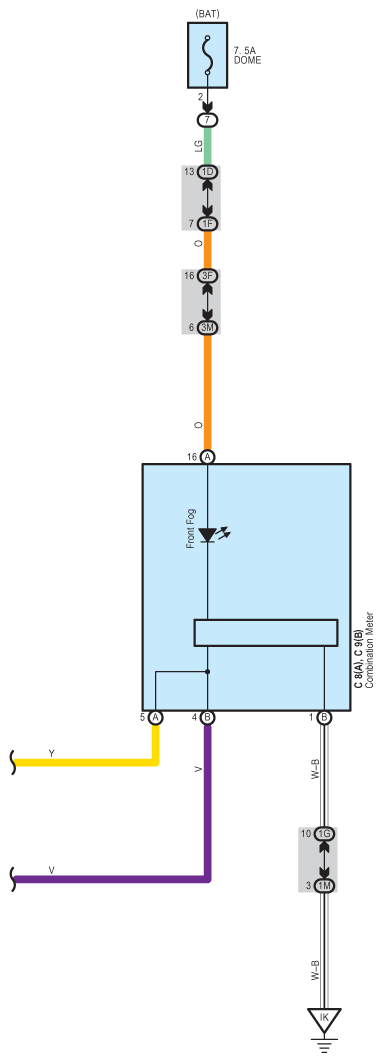

Fig 3: Front Fog Light Wiring Diagram (3 Of 3)
G08914755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
