Garage Door Opener: Notes

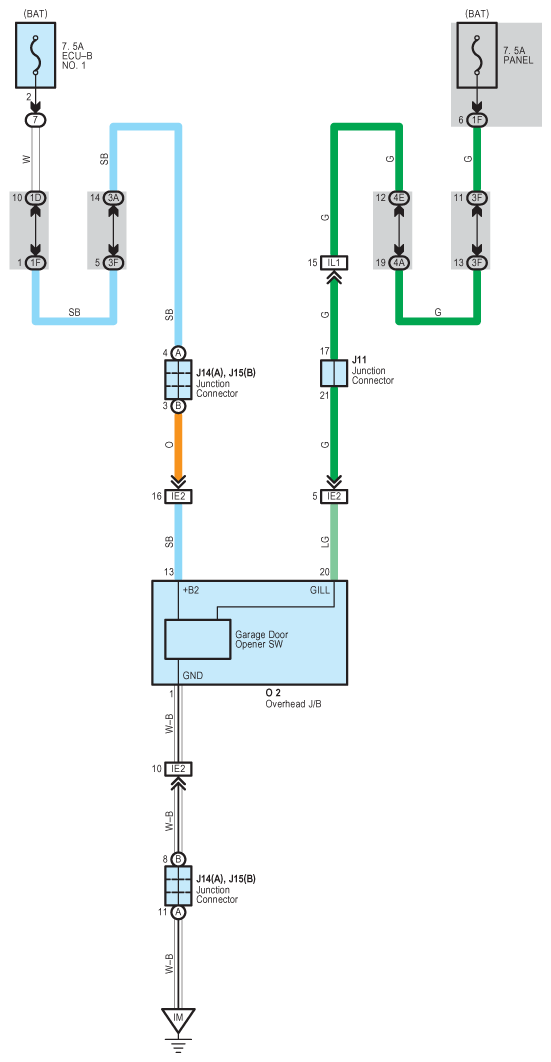

Fig 1: Garage Door Opener Wiring Diagram

G08914878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
