Headlight Cleaner: Notes

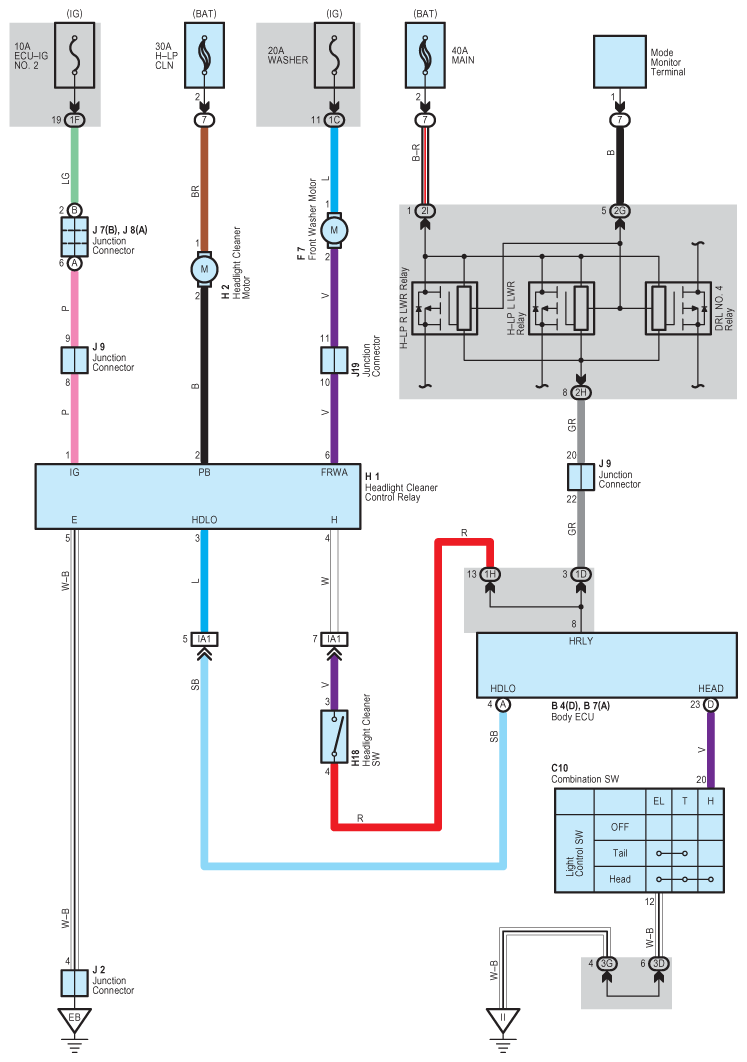

Fig 1: Headlight Cleaner Wiring Diagram
G08914848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
