Power Seat for Driver's Seat with Memory: Notes

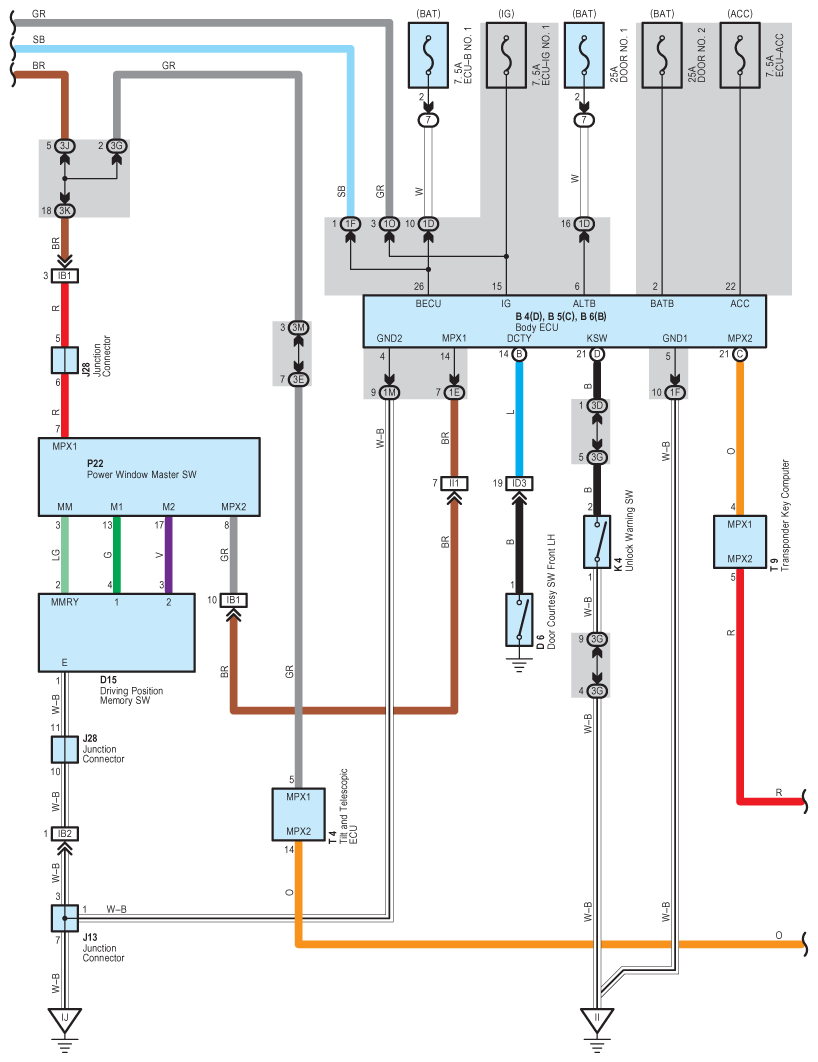

Fig 1: Power Seat For Driver's Seat With Memory Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Seat For Driver's Seat With Memory Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Seat For Driver's Seat With Memory Wiring Diagram (3 Of 4)

Fig 4: Power Seat For Driver's Seat With Memory Wiring Diagram (4 Of 4)
