Radiator Fan: Notes

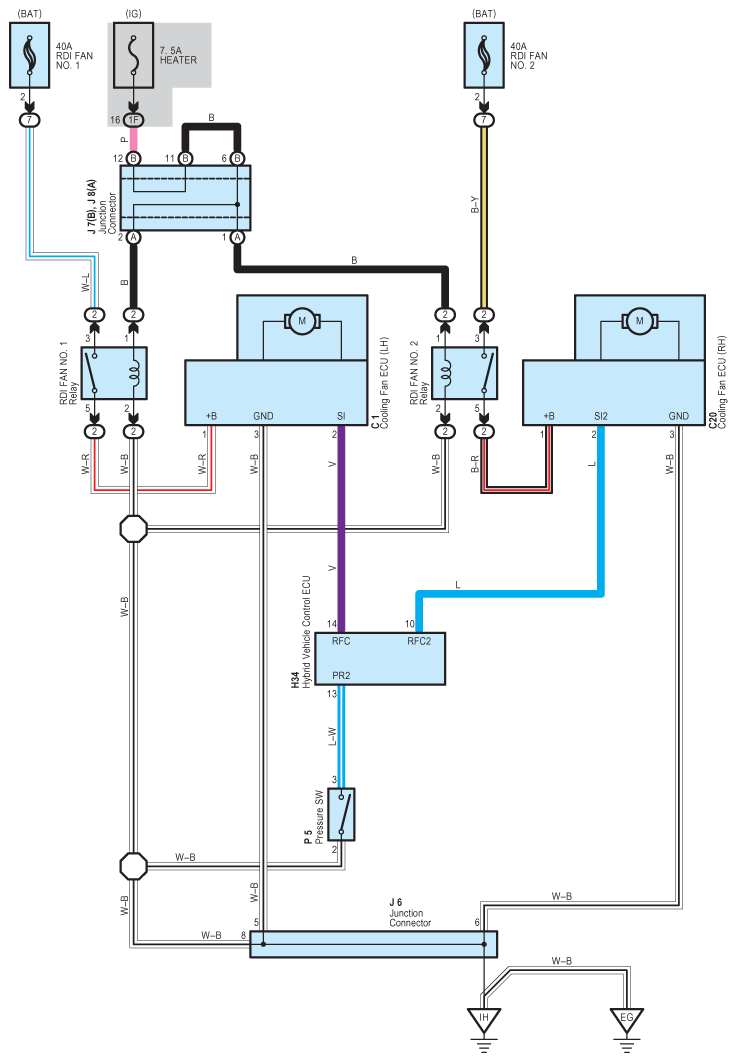

Fig 1: Radiator Fan Wiring Diagram

G08914915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
