Rear Console Box: Reassembly

INSTALL CONSOLE UPPER PANEL GARNISH REAR

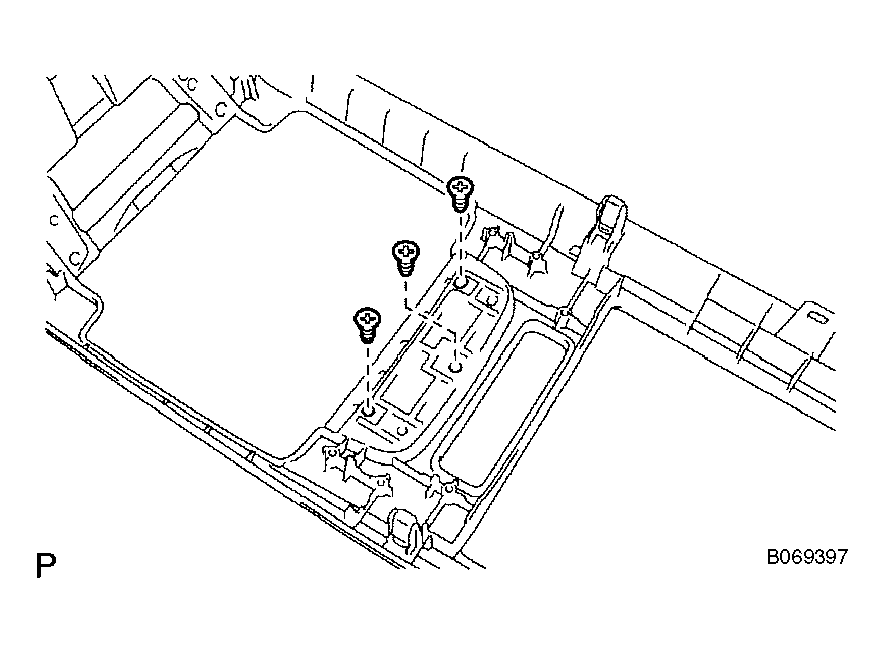

1. Install the 3 screws and the console upper panel garnish rear.

  Fig 1: Identifying Console Upper Panel Garnish Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR LOCK

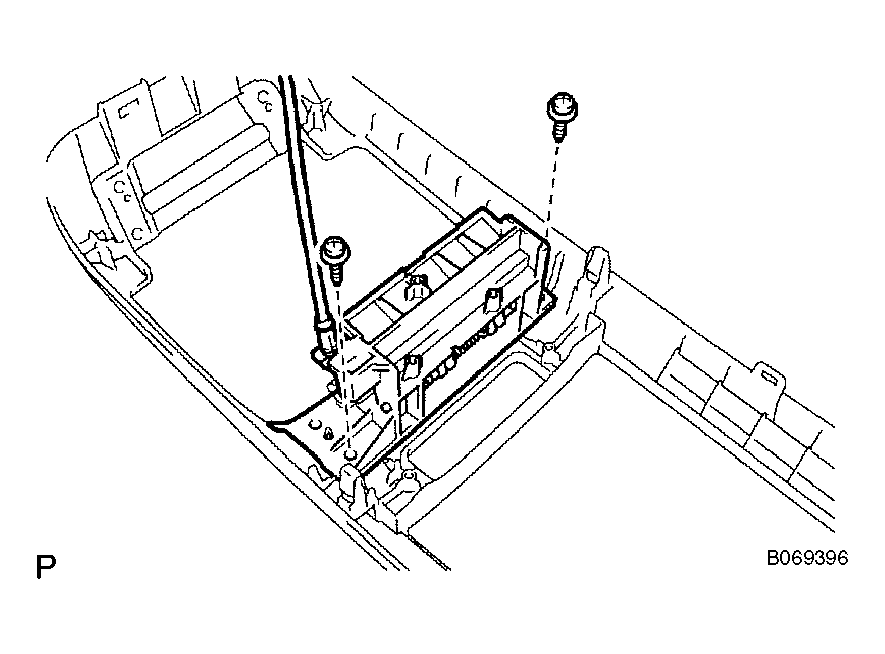

1. Install the 2 screws and the console compartment door lock.

  Fig 2: Identifying Console Compartment Door Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER

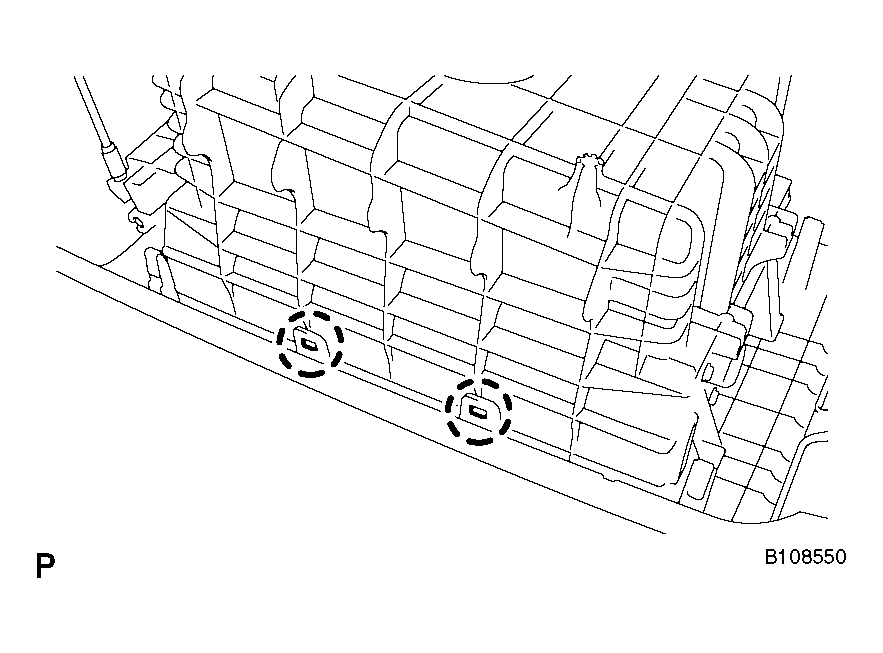

1. Engage the 2 claws.

  Fig 3: Identifying Console Box Sub-Assembly Upper - 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

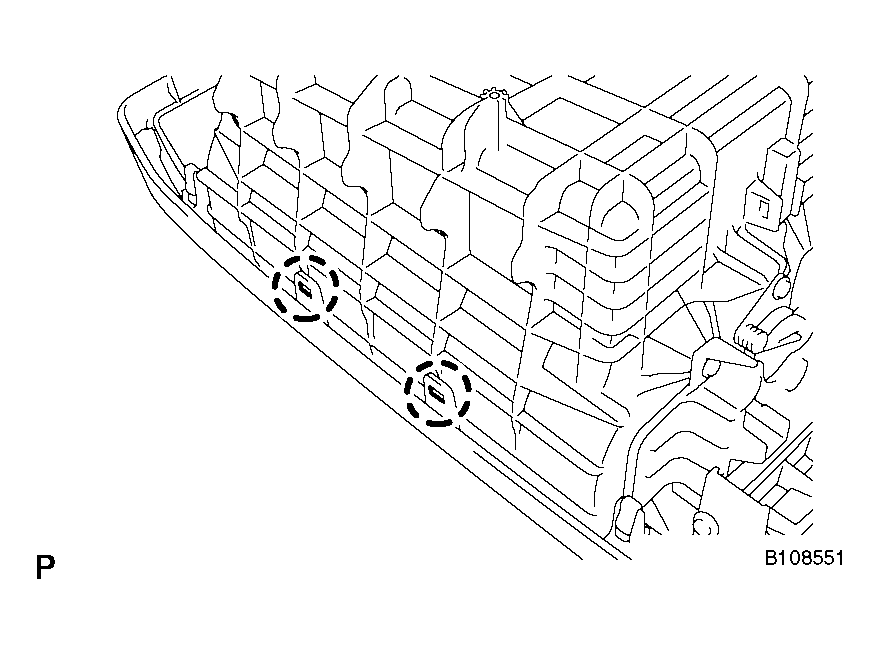

2. Engage the 2 claws.

  Fig 4: Identifying Console Box Sub-Assembly Upper - 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

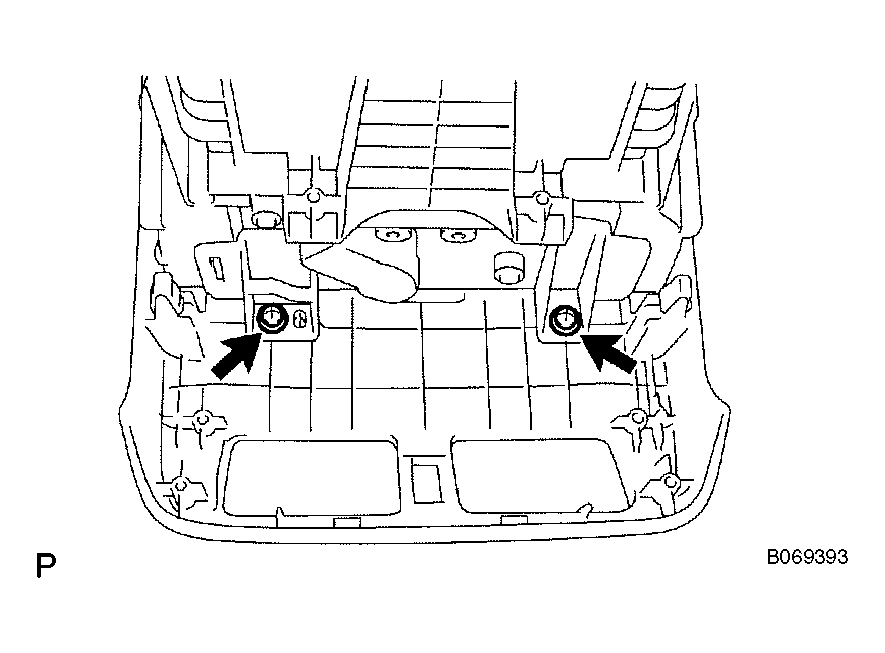

3. Install the 2 screws.

  Fig 5: Installing Console Box Sub-Assembly Upper Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 4 screws and the console box sub-assembly upper.

  Fig 6: Identifying Console Box Sub-Assembly Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX REGISTER ASSEMBLY

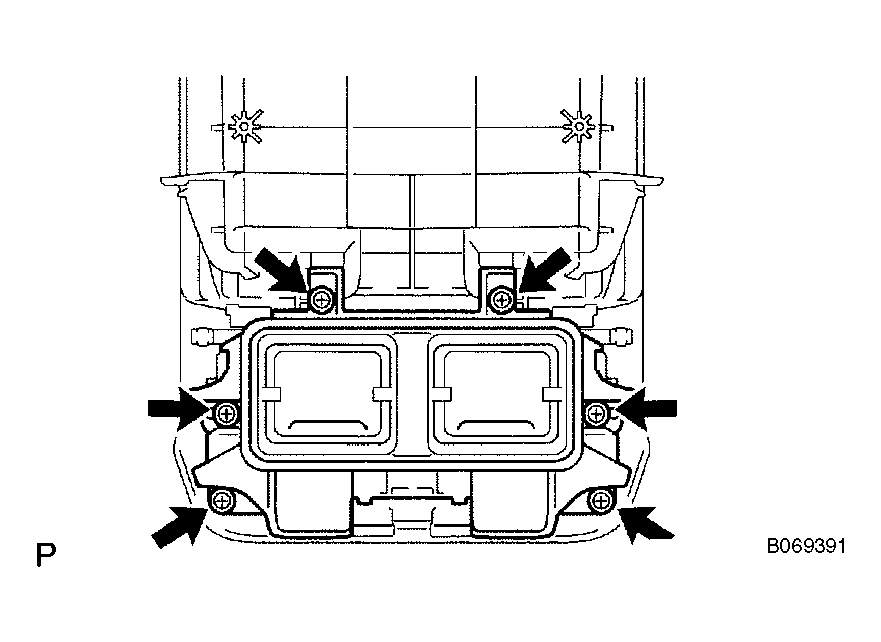

1. Install the 6 screws and the console box register assembly.

  Fig 7: Identifying Console Box Register Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE UPPER PANEL GARNISH FRONT

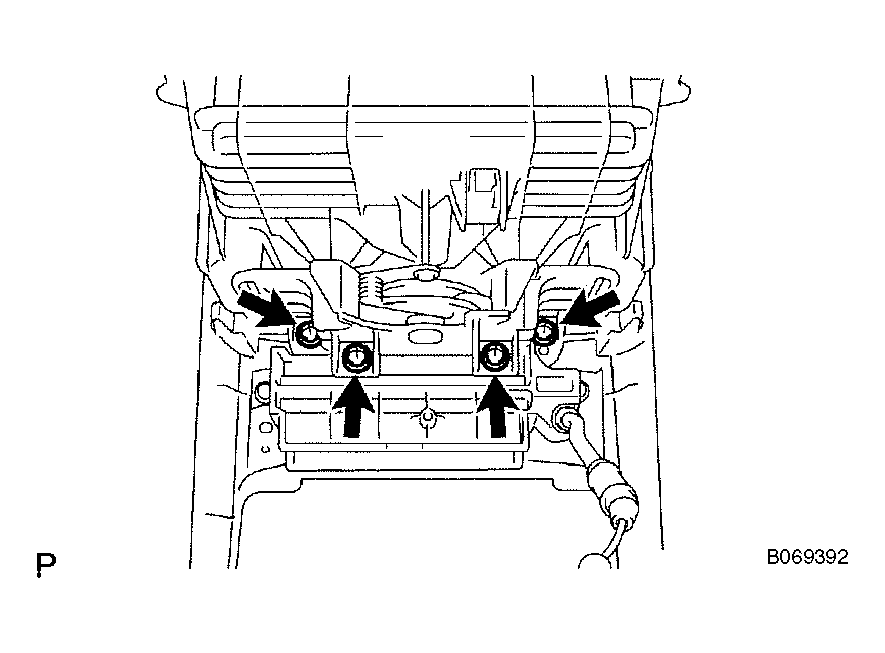

1. Install the 4 screws and the console upper panel garnish front.

  Fig 8: Identifying Console Upper Panel Garnish Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CONSOLE BOX HOLDER CUP

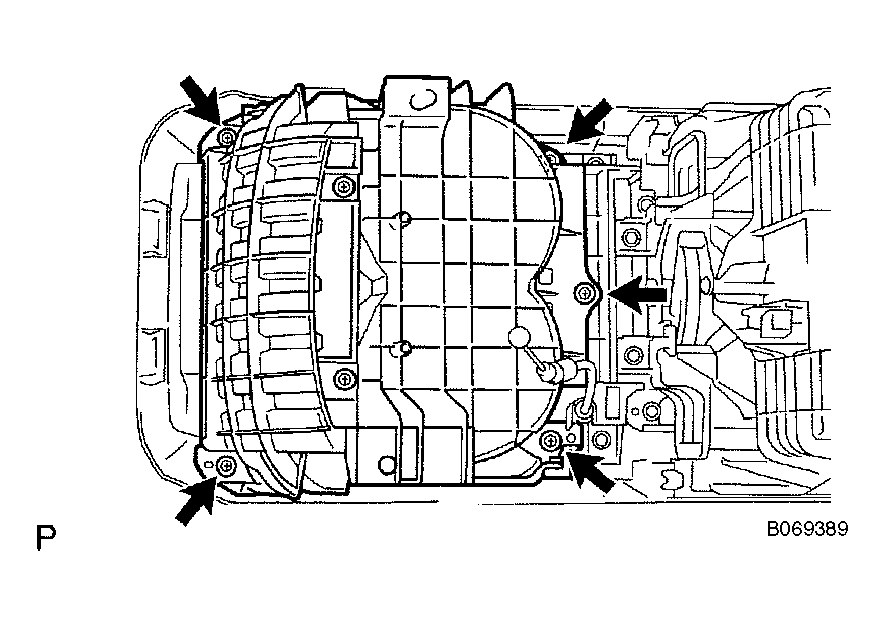

1. Install the 5 screws and the rear console holder cup.

  Fig 9: Identifying Rear Console Box Holder Cup
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

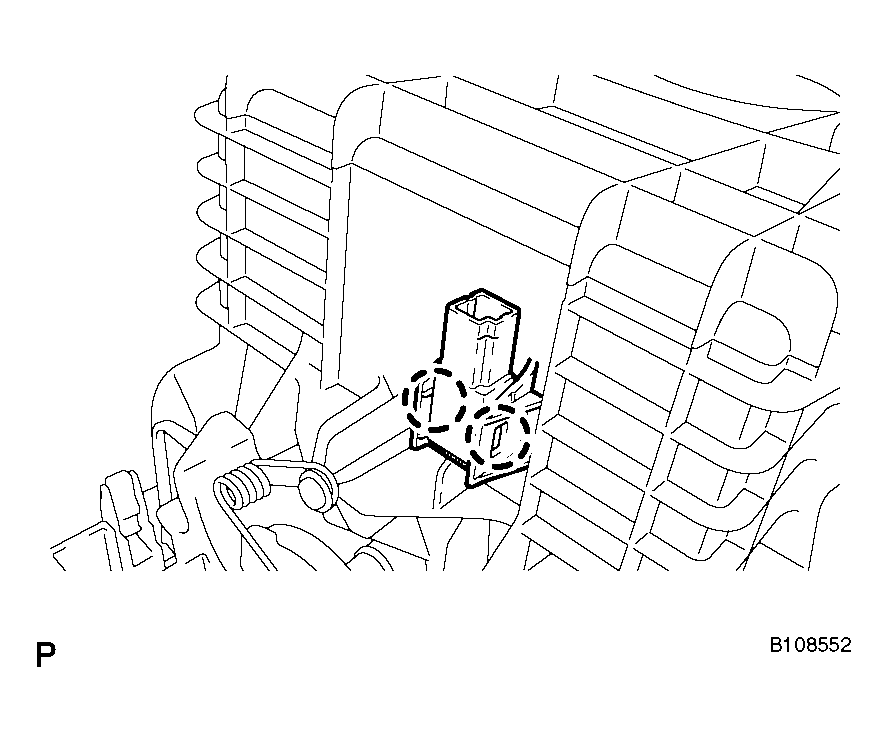

1. Engage the 2 claws and install the console box illumination light assembly.

  Fig 10: Identifying Console Box Illumination Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX LIGHT SUB-ASSEMBLY

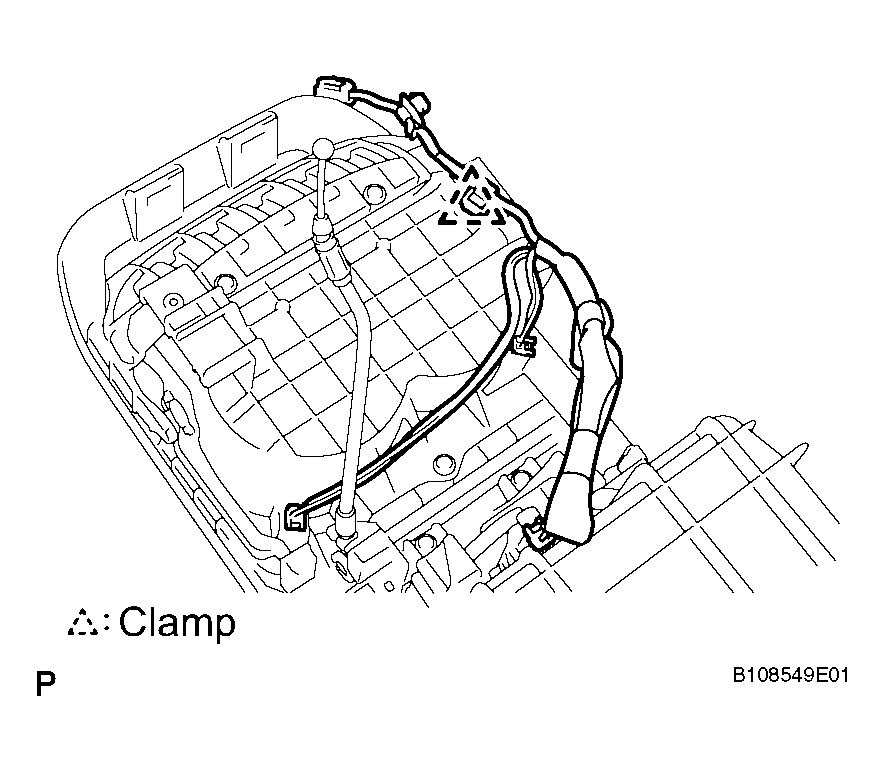

1. Connect each of the clamp and connectors, and install the console box light sub-assembly.

  Fig 11: Identifying Console Box Light Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CONSOLE BOX LOWER

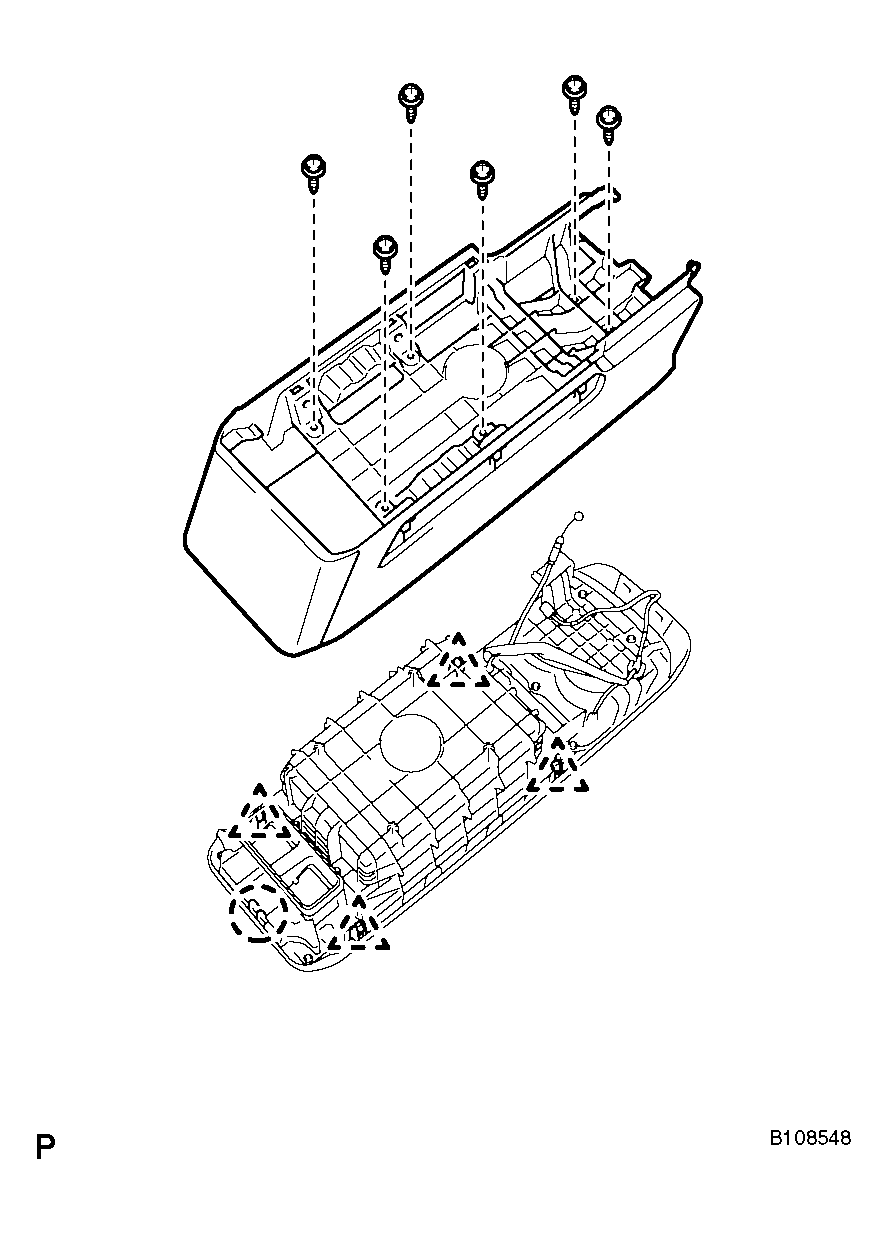

1. Engage the 4 clips and the claw.
2. Install the 6 screws and the rear console box lower.

  Fig 12: Identifying Rear Console Box Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BOX NO. 1 SIDE PANEL
1. Engage the 8 claws and install the box No. 1 side panel.
Fig 13: Identifying Box No. 1 Side Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CUP HOLDER
1. Install the console box cup holder.
