Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. (See SUPPLEMENTAL RESTRAINT SYSTEM )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assembly.

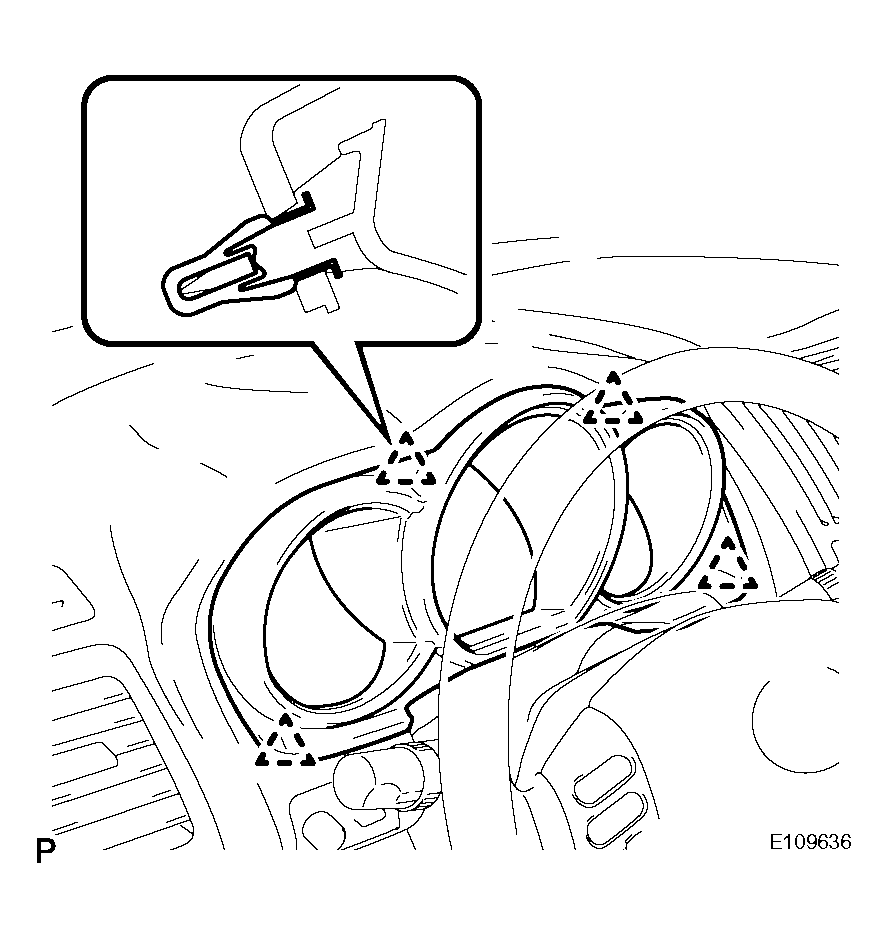

  Fig 1: Identifying Instrument Cluster Finish Panel Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws.
2. Pull out the combination meter assembly, and disconnect the connectors.

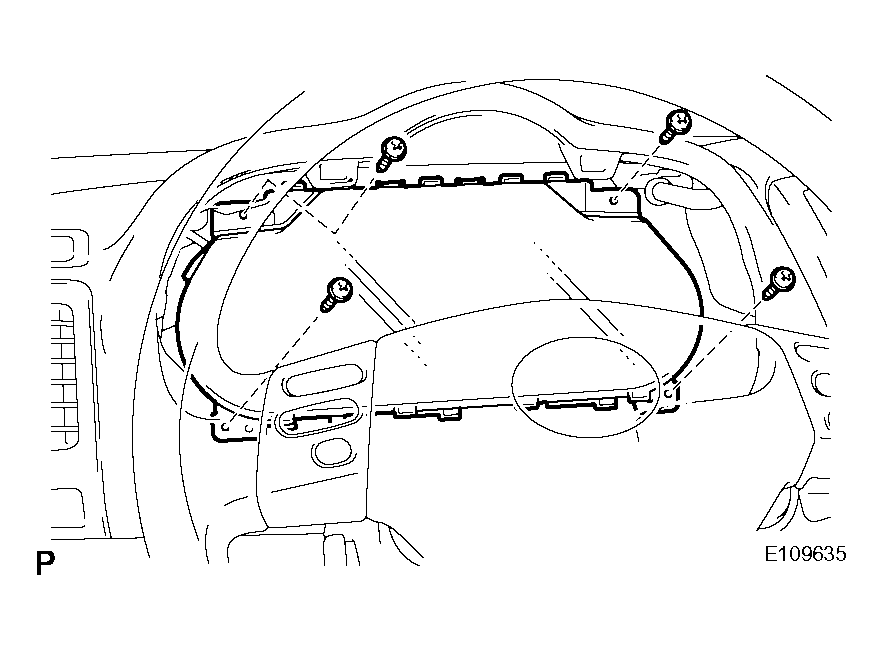

  Fig 2: Identifying Combination Meter Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
