Audio System except MARK LEVINSON: Notes

WARNING: This page is about a different car, the 2007 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

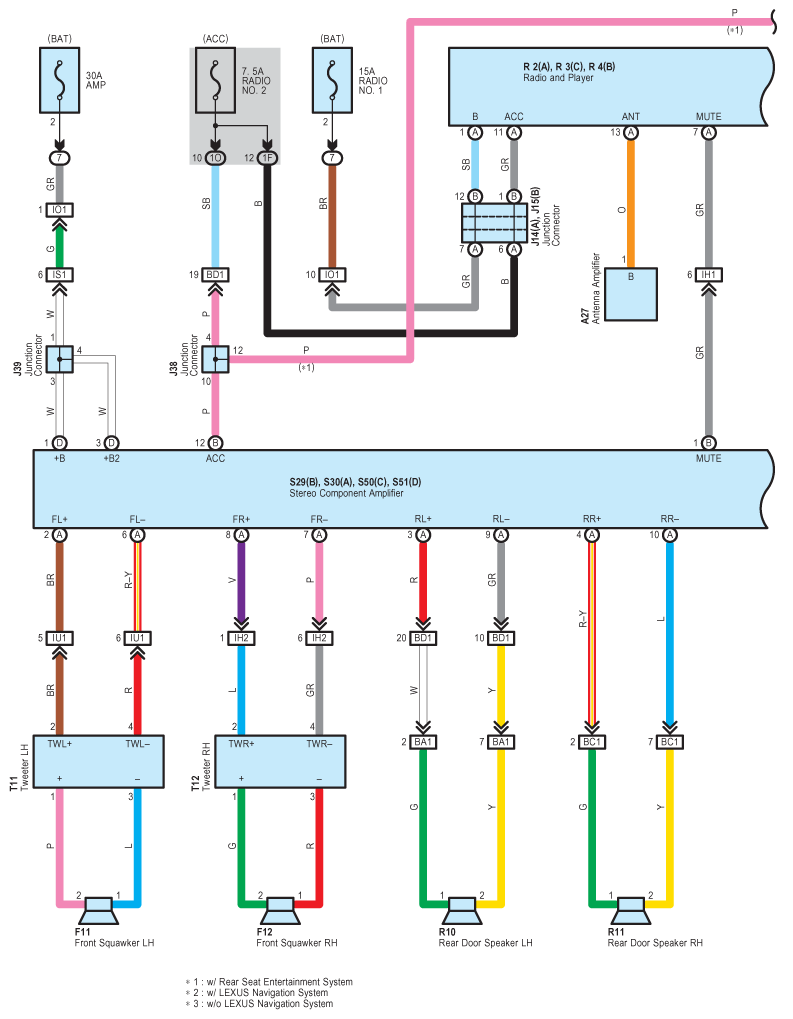

Fig 1: Audio System Except Mark Levinson - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

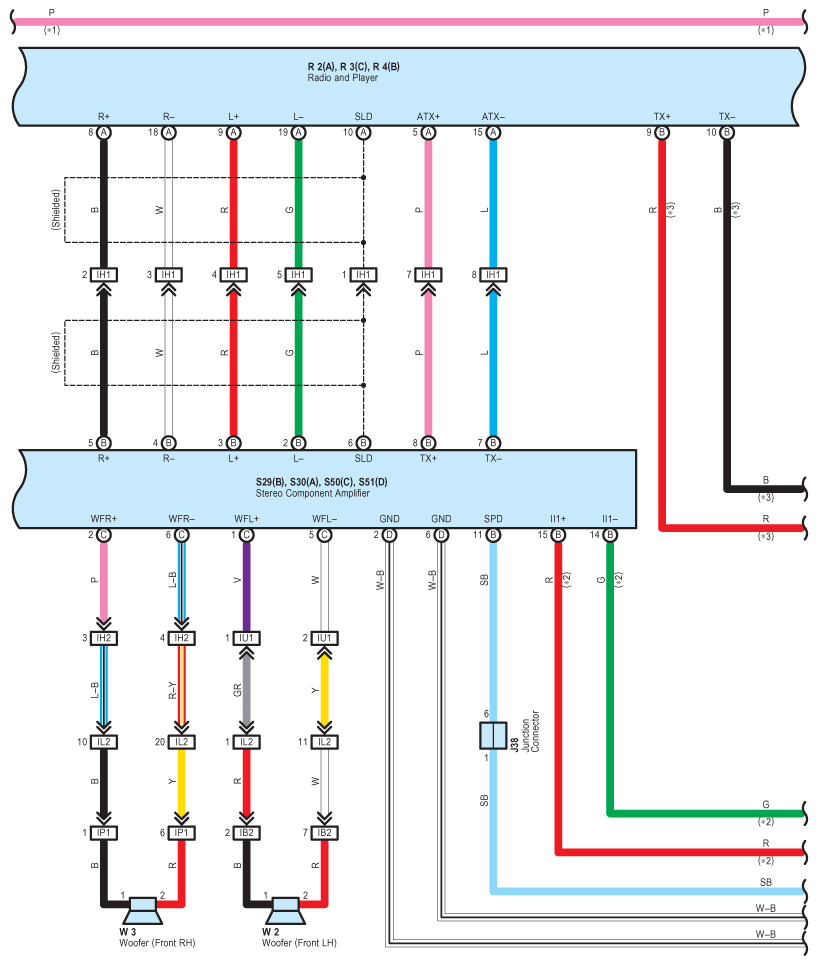

Fig 2: Audio System Except Mark Levinson - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

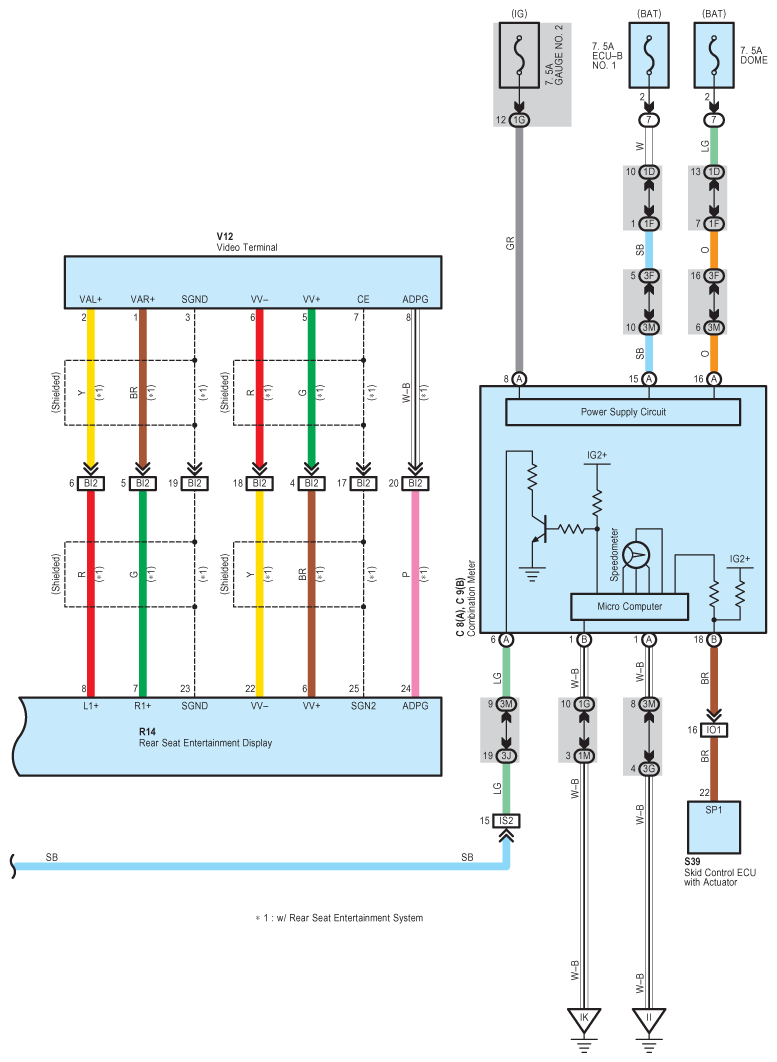

Fig 3: Audio System Except Mark Levinson - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

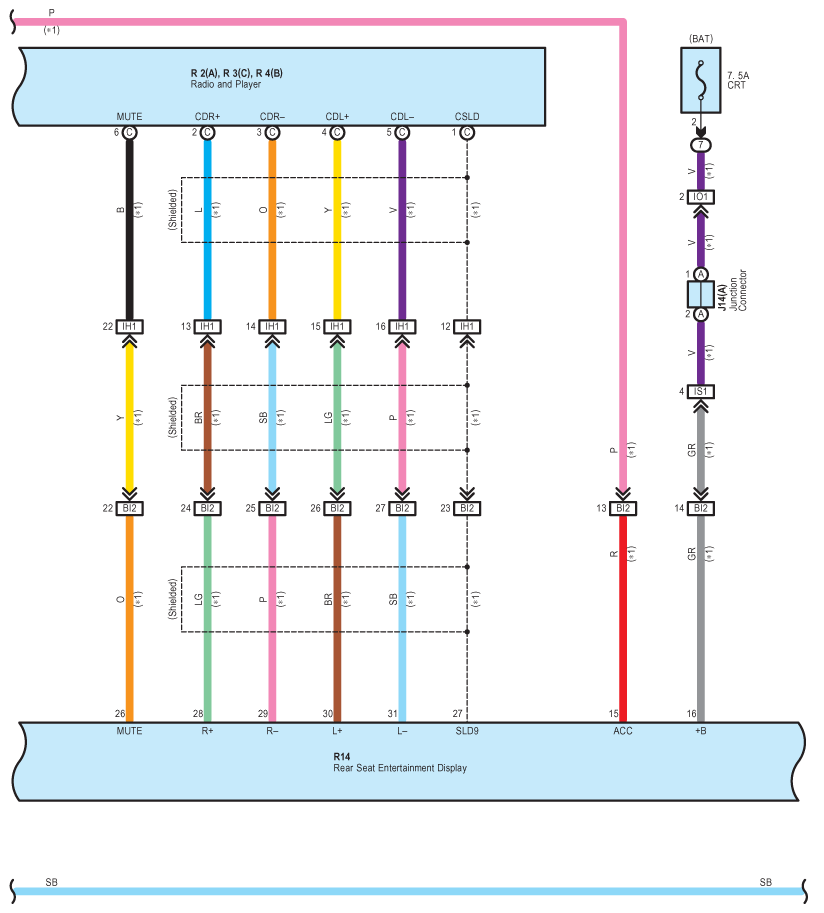

Fig 4: Audio System Except Mark Levinson - Wiring Diagram (4 Of 6)

Fig 5: Audio System Except Mark Levinson - Wiring Diagram (5 Of 6)

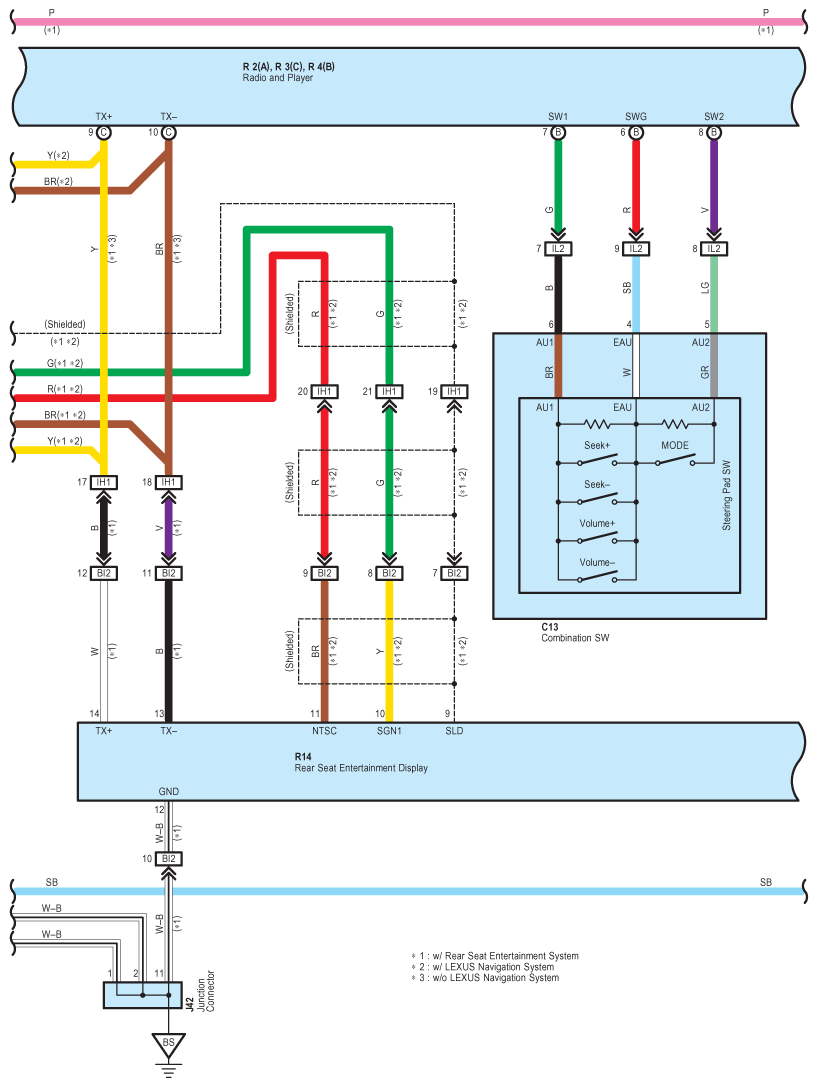

Fig 6: Audio System Except Mark Levinson - Wiring Diagram (6 Of 6)
