Navigation and Parking Assist (Rear View Monitor): Notes

WARNING: This page is about a different car, the 2007 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

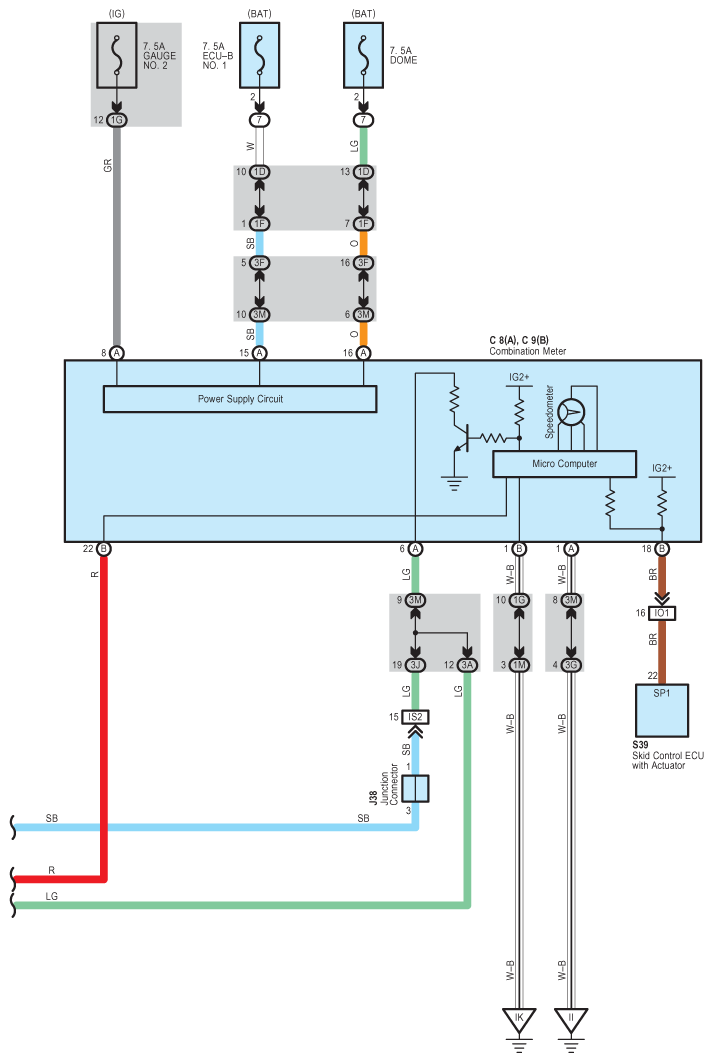

Fig 1: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

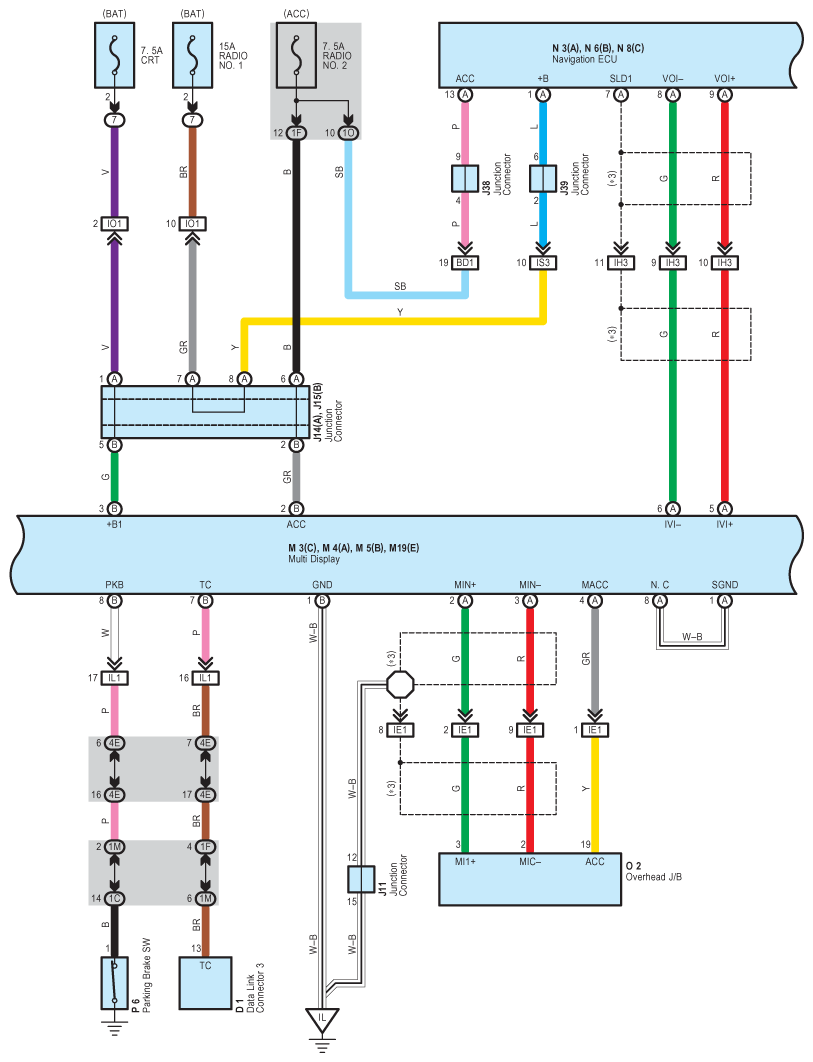

Fig 2: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

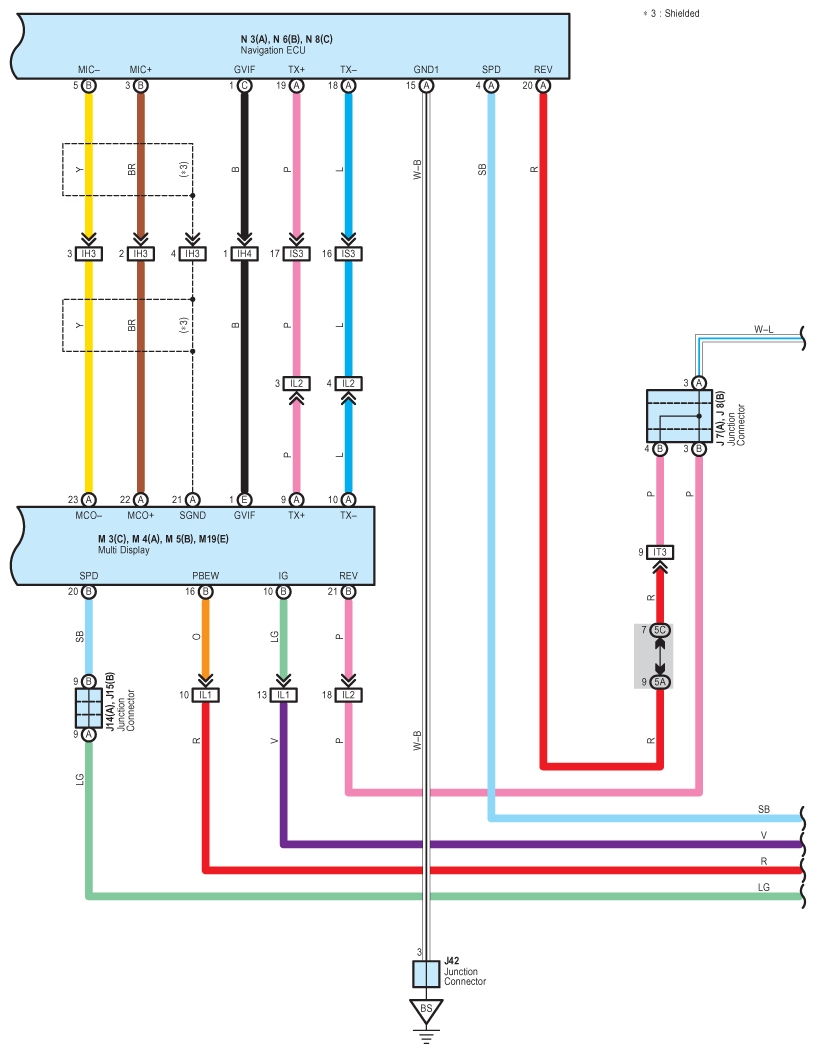

Fig 3: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

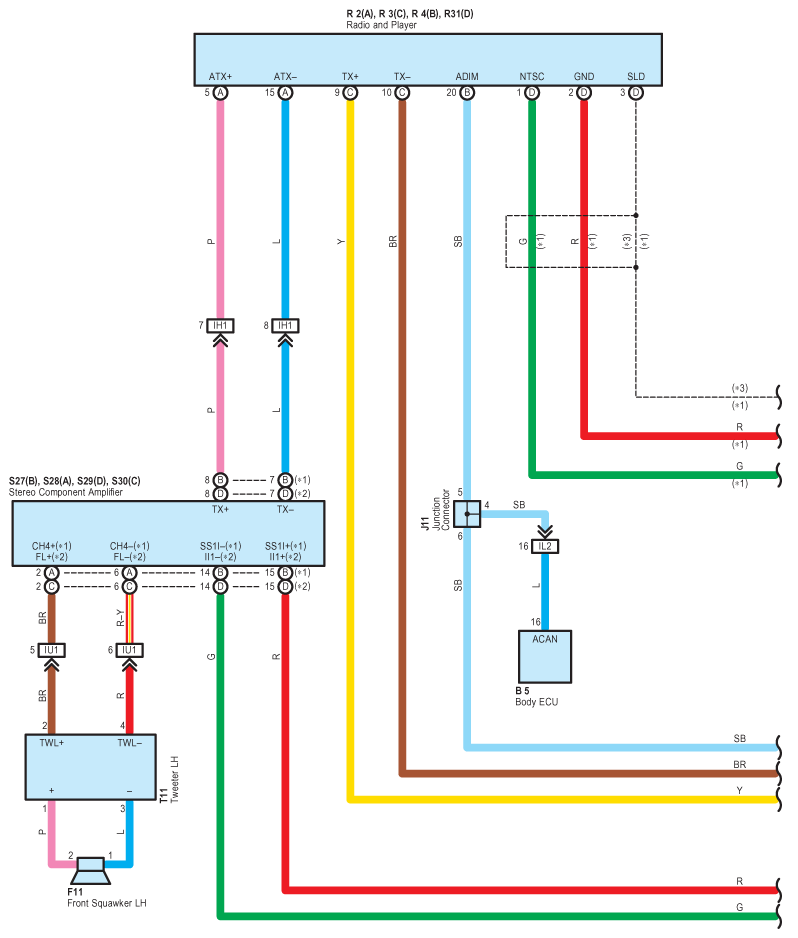

Fig 4: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (4 Of 6)

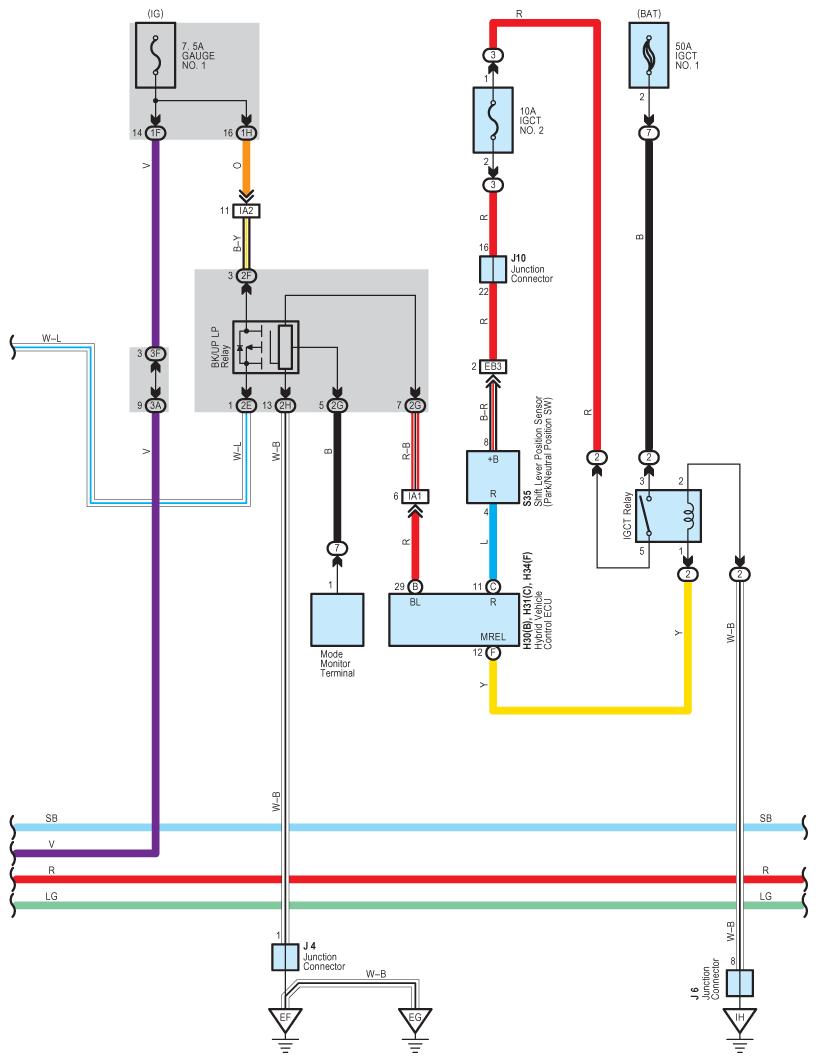

Fig 5: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (5 Of 6)

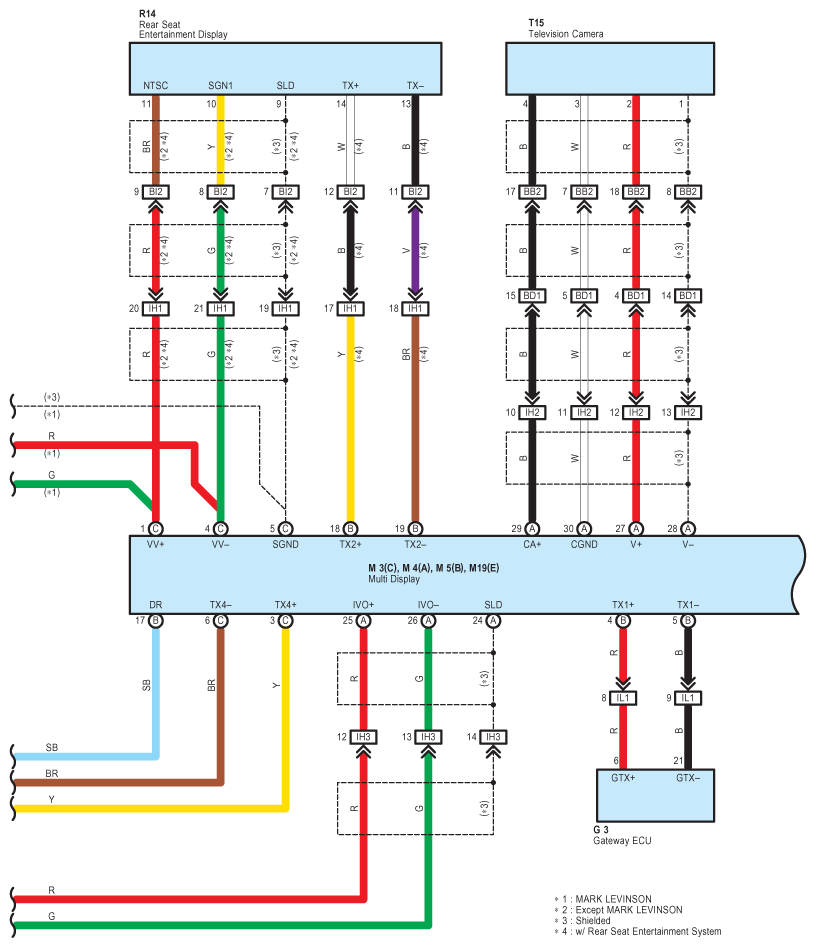

Fig 6: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (6 Of 6)
