Shift Lever Position Sensor: Adjustment

ADJUST PARK/NEUTRAL POSITION SWITCH
1. Loosen the 2 bolts of park/neutral position switch and set the shift lever to the N position.

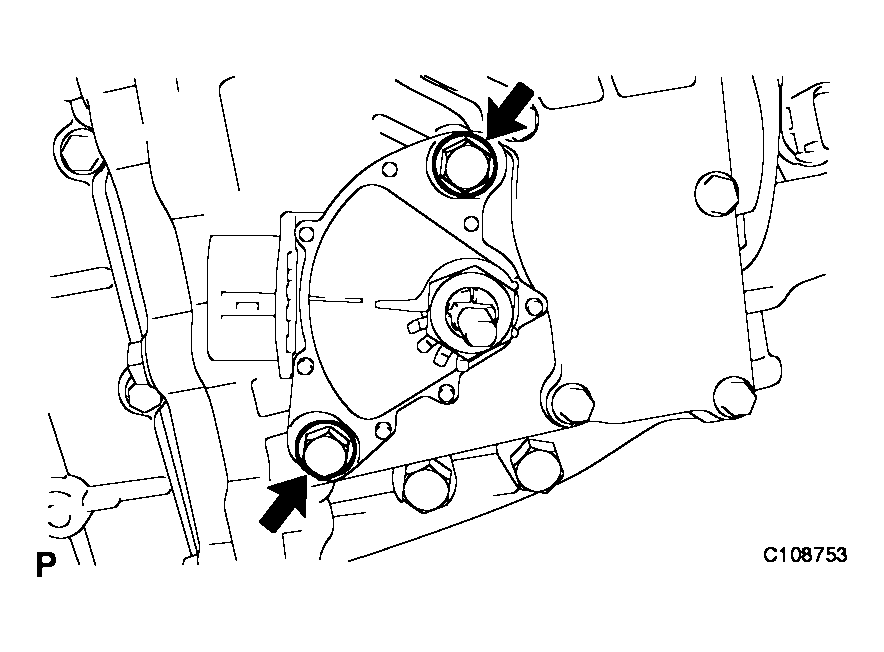

  Fig 1: Identifying Park/Neutral Position Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the protruding part and neutral basic line.
  NOTE: There is play on the nut stopper side (protruding part). Align the center point of the range of the play with the neutral basic line.

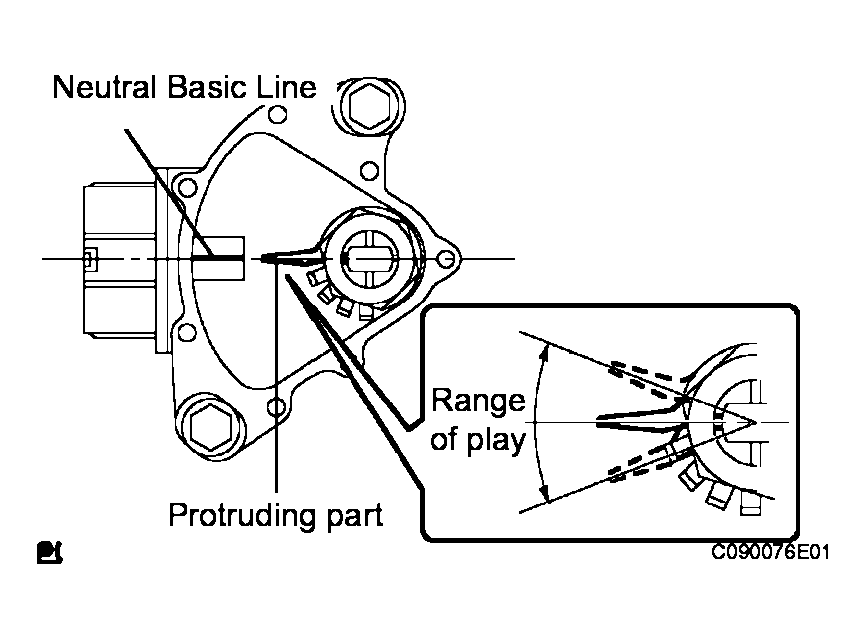

  Fig 2: Aligning Protruding Part And Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the 2 bolts in the order shown in the illustration.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

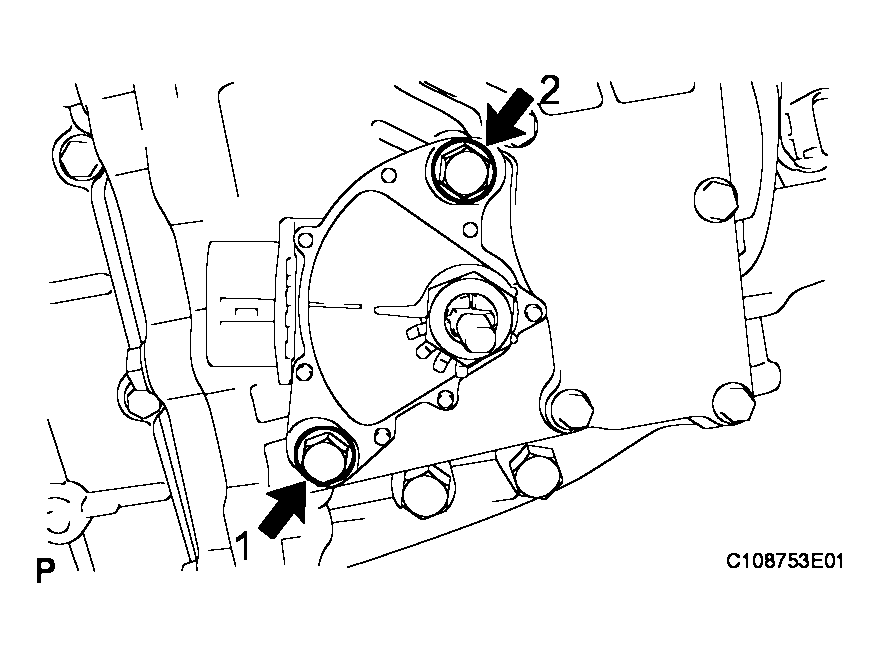

  Fig 3: Identifying Park/Neutral Position Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT PARK/NEUTRAL POSITION SWITCH (See INSPECTION )
