Shift Lever Position Sensor: Removal

DISCONNECT CABLE FROM BATTERY NEGATIVE TERMINAL
REMOVE ENGINE UNDER COVER NO. 1 (See REMOVAL )
DRAIN HYBRID TRANSAXLE FLUID (w/ Oil Cooler) (See HYBRID TRANSAXLE FLUID )
SEPARATE OIL COOLER TUBE SUB-ASSEMBLY (w/ Oil Cooler)
1. Separate the 2 oil cooler hoses from the oil cooler tubes.
2. Remove the bolt and oil cooler tube.

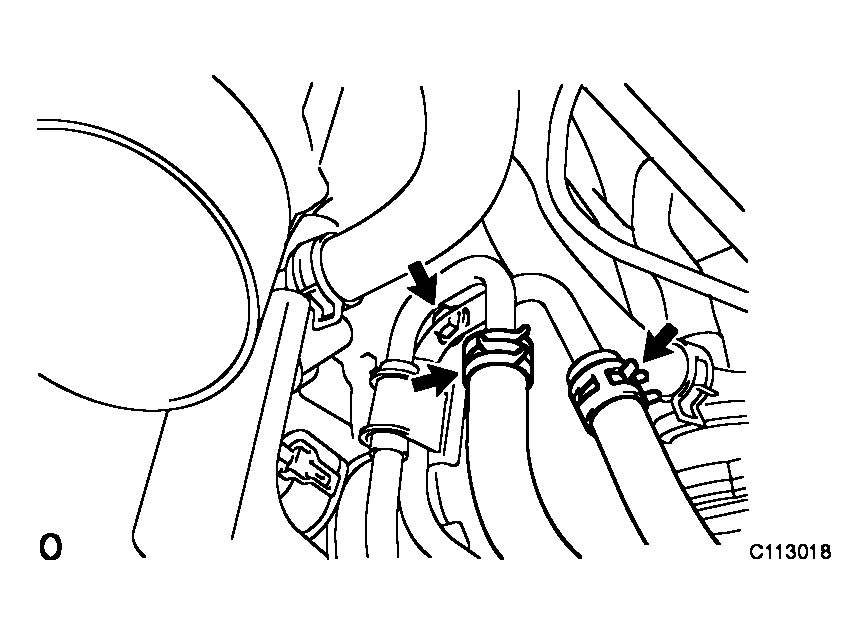

  Fig 1: Identifying Oil Cooler Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a wrench, separate the oil cooler tube.
  SST 09023-12701

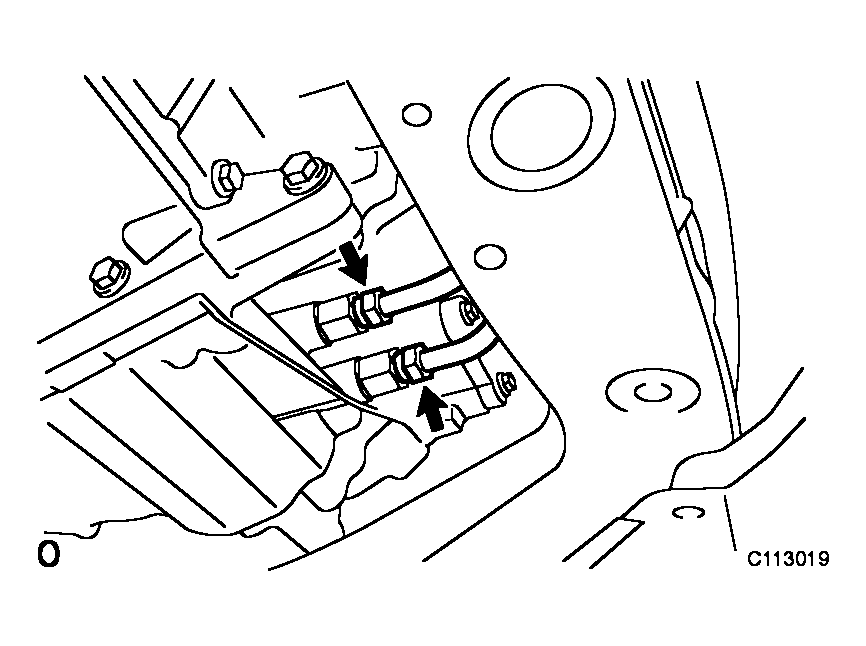

Fig 2: Identifying Oil Cooler Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the nut from the control shaft lever.

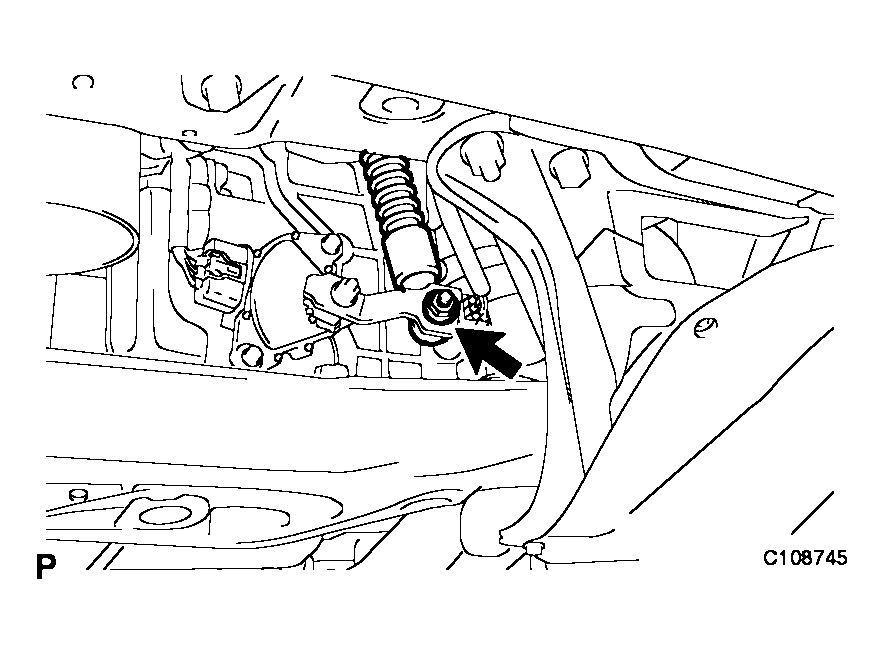

  Fig 3: Identifying Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 2 claws, disconnect the control cable with clip from the control cable bracket.

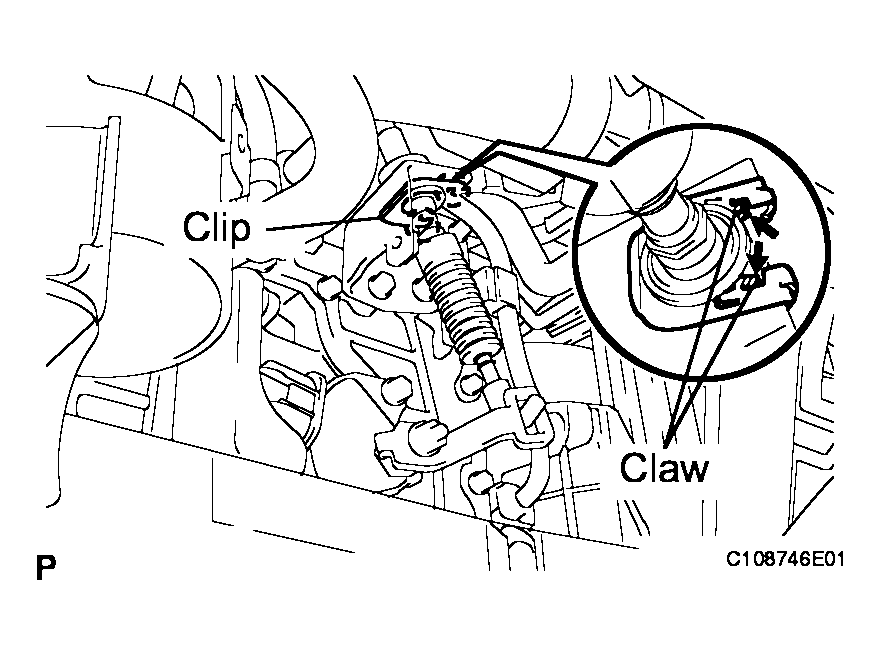

  Fig 4: Identifying Claws And Control Cable Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape up the screwdriver tip before use.
3. Remove the clip.
REMOVE PARK/NEUTRAL POSITION SWITCH
1. Disconnect the park/neutral position switch connector.

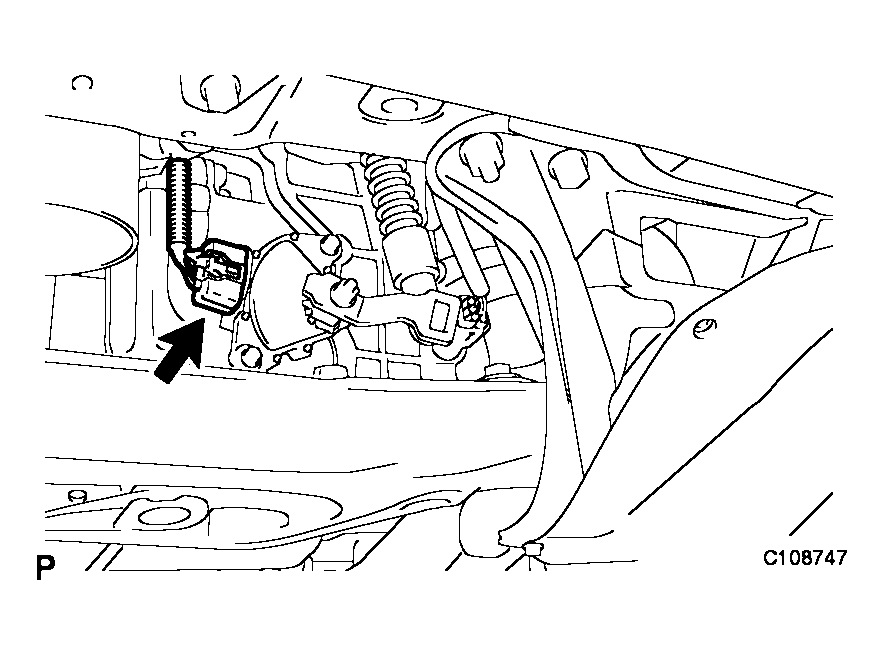

  Fig 5: Identifying Park/Neutral Position Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, washer and control shaft lever.

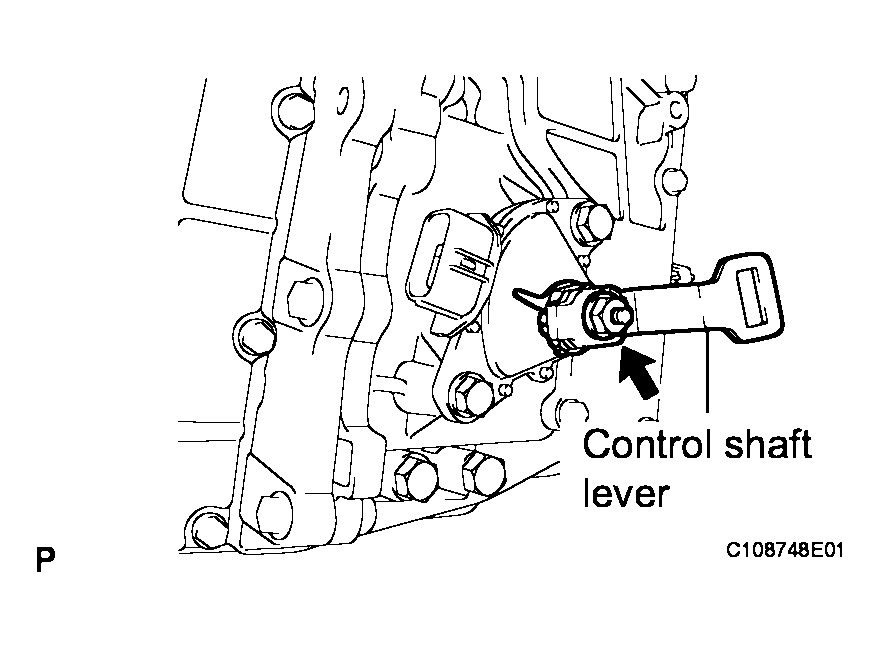

  Fig 6: Identifying Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, pry out the lock plate.

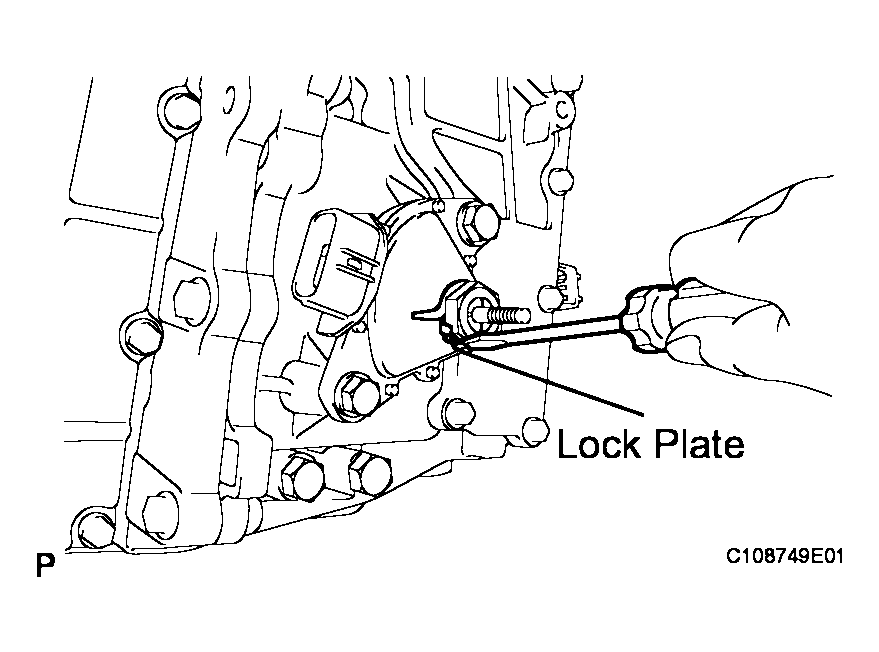

  Fig 7: Prying Out Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the lock nut and lock plate.

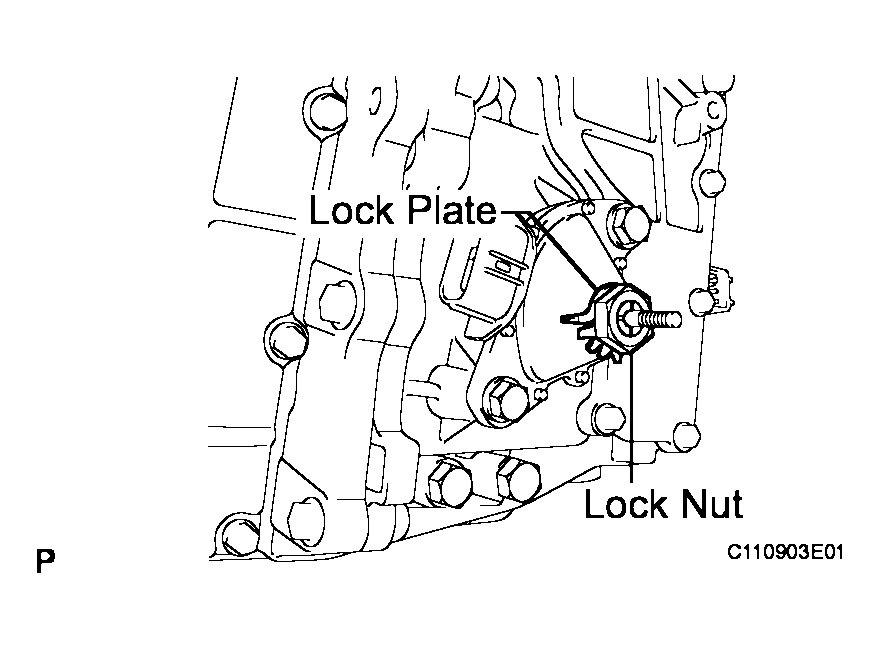

  Fig 8: Identifying Lock Nut And Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and pull out the park/neutral position switch.

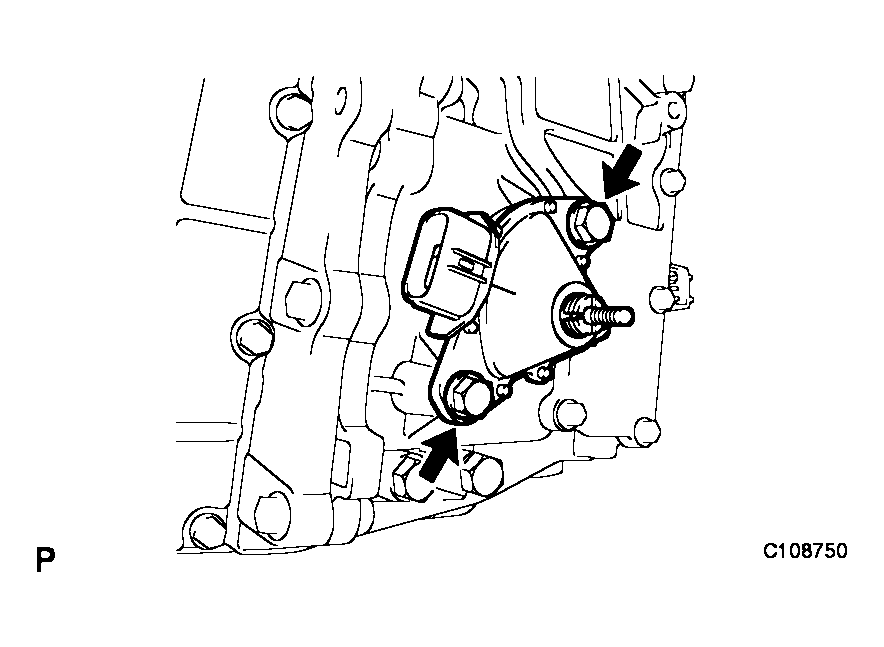

  Fig 9: Identifying Park/Neutral Position Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
