Shift Lever: Disassembly

REMOVE POSITION INDICATOR HOUSING
1. Using a screwdriver, remove the position indicator housing from the shift lever assembly.
  NOTE: Do not damage the position indicator housing.

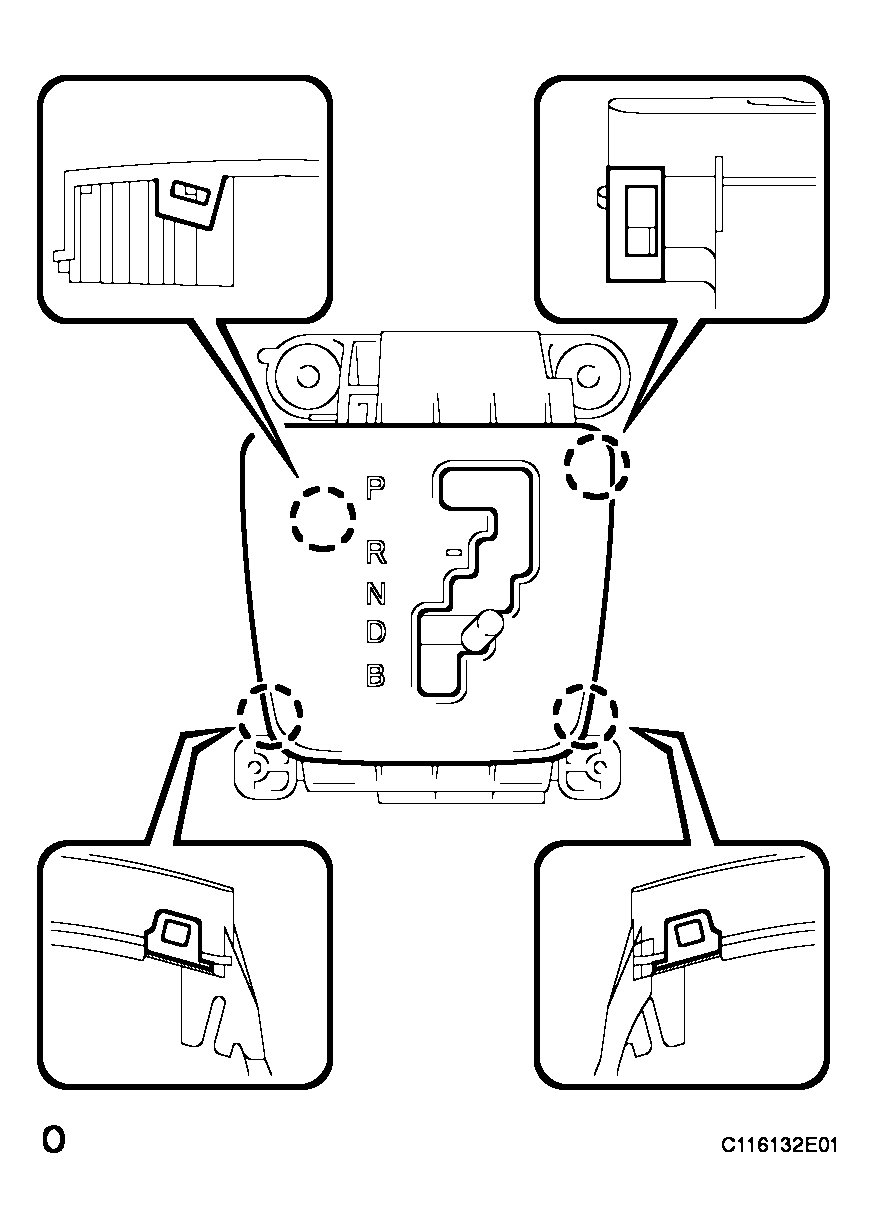

  Fig 1: Identifying Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the shift lock release button cover from the position indicator housing assembly.
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the shift lock release button, spring and cover from the position indicator housing.
  NOTE: Do not damage the position indicator housing.

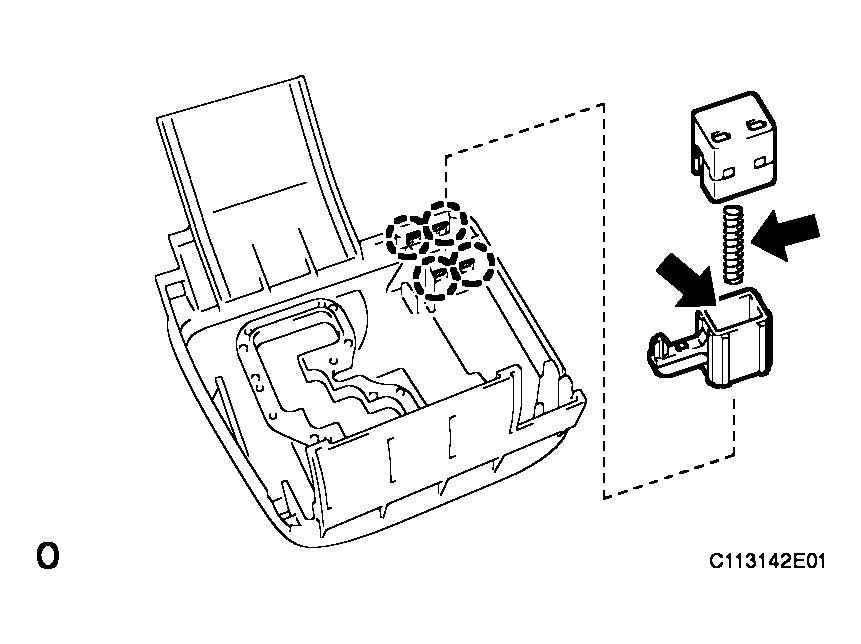

  Fig 2: Identifying Shift Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE
1. Using a screwdriver, remove the position indicator light guide from the shift lever assembly.

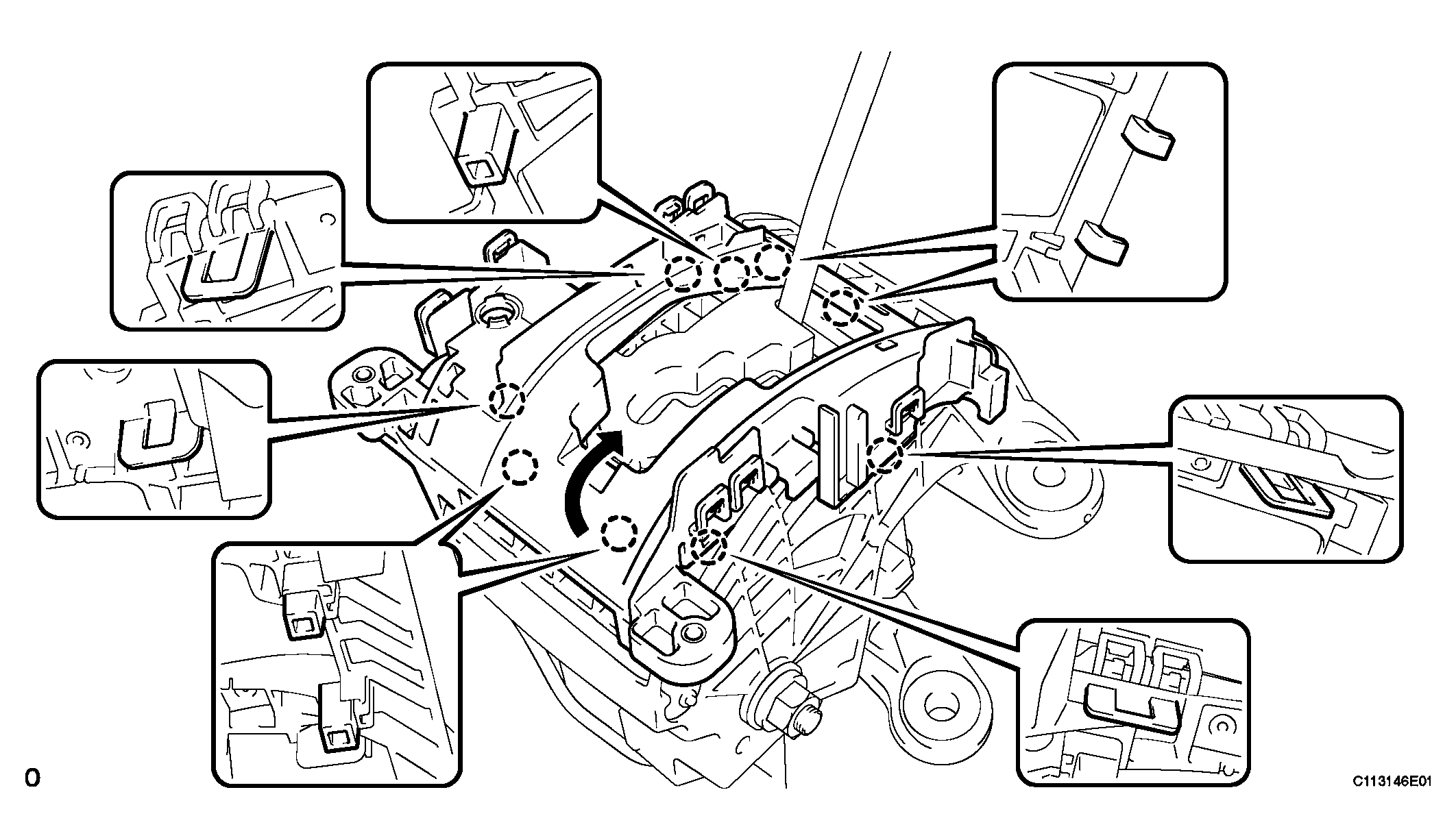

  Fig 3: Identifying Position Indicator Light Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 4: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER NO. 2
1. Remove the position indicator slide cover No. 2 from the position indicator slide cover.

  Fig 5: Identifying Position Indicator Slide Cover No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the shift lever assembly.

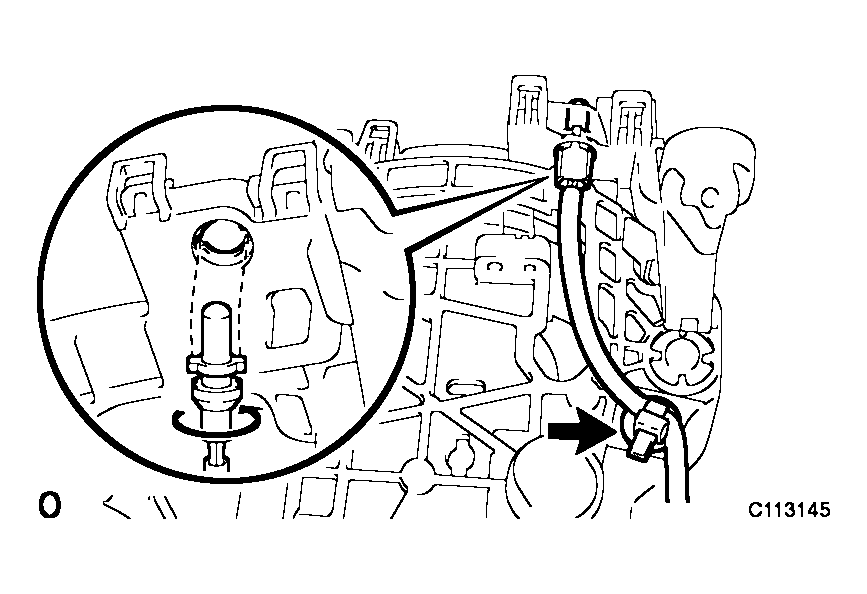

Fig 6: Identifying Indicator Light Wire Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER WIRE GUIDE
1. Remove the shift lever wire guide No. 1 from the indicator light wire.
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower from the shift lock control unit.

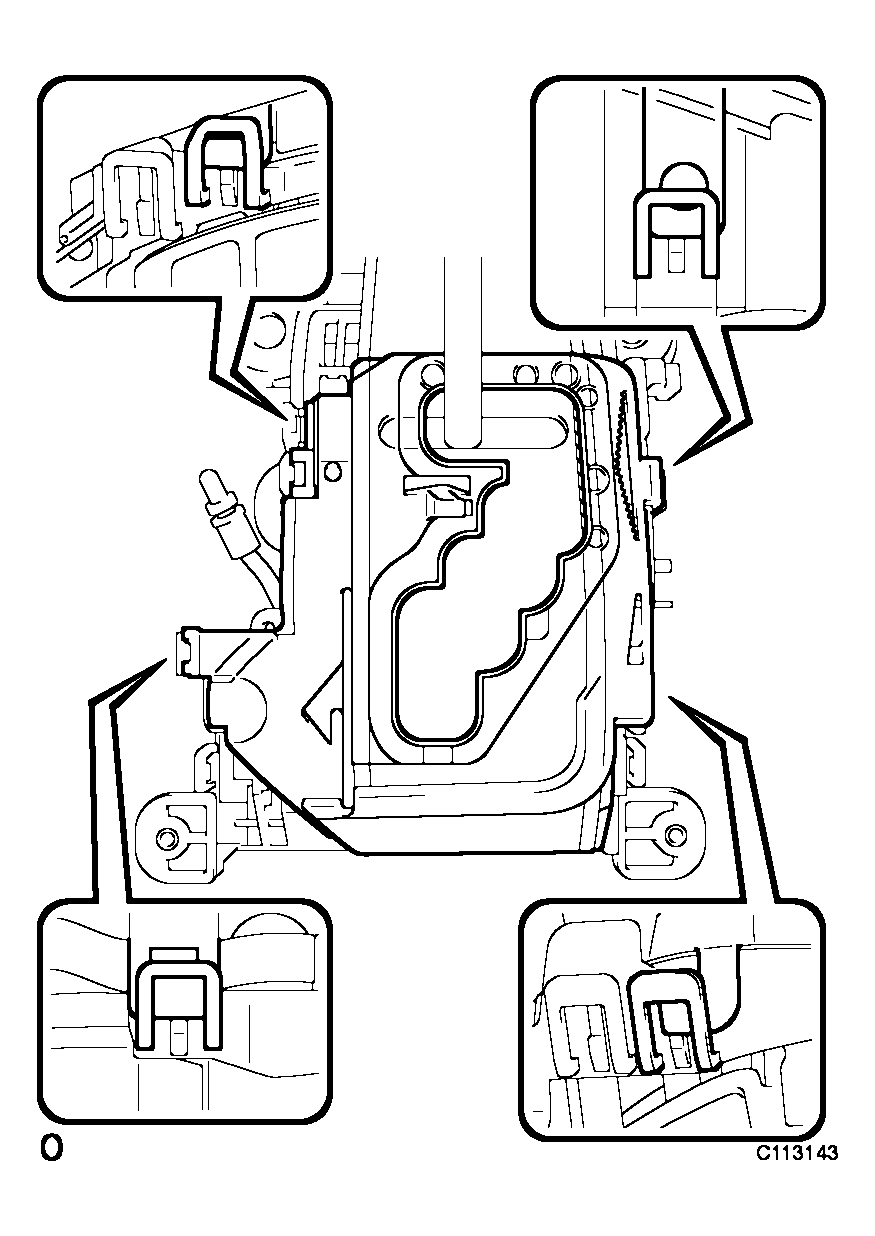

  Fig 7: Identifying Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
