Home › Lexus › 2006 › RX 400h FWD › Repair and Diagnosis › Body & Frame › Windows › Windshield / WINDOWGLASS › Rear Quarter Window Glass › Components

Rear Quarter Window Glass: Components

Fig 1: Identifying Rear Quarter Window Glass Components (1 Of 2)
G04116066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

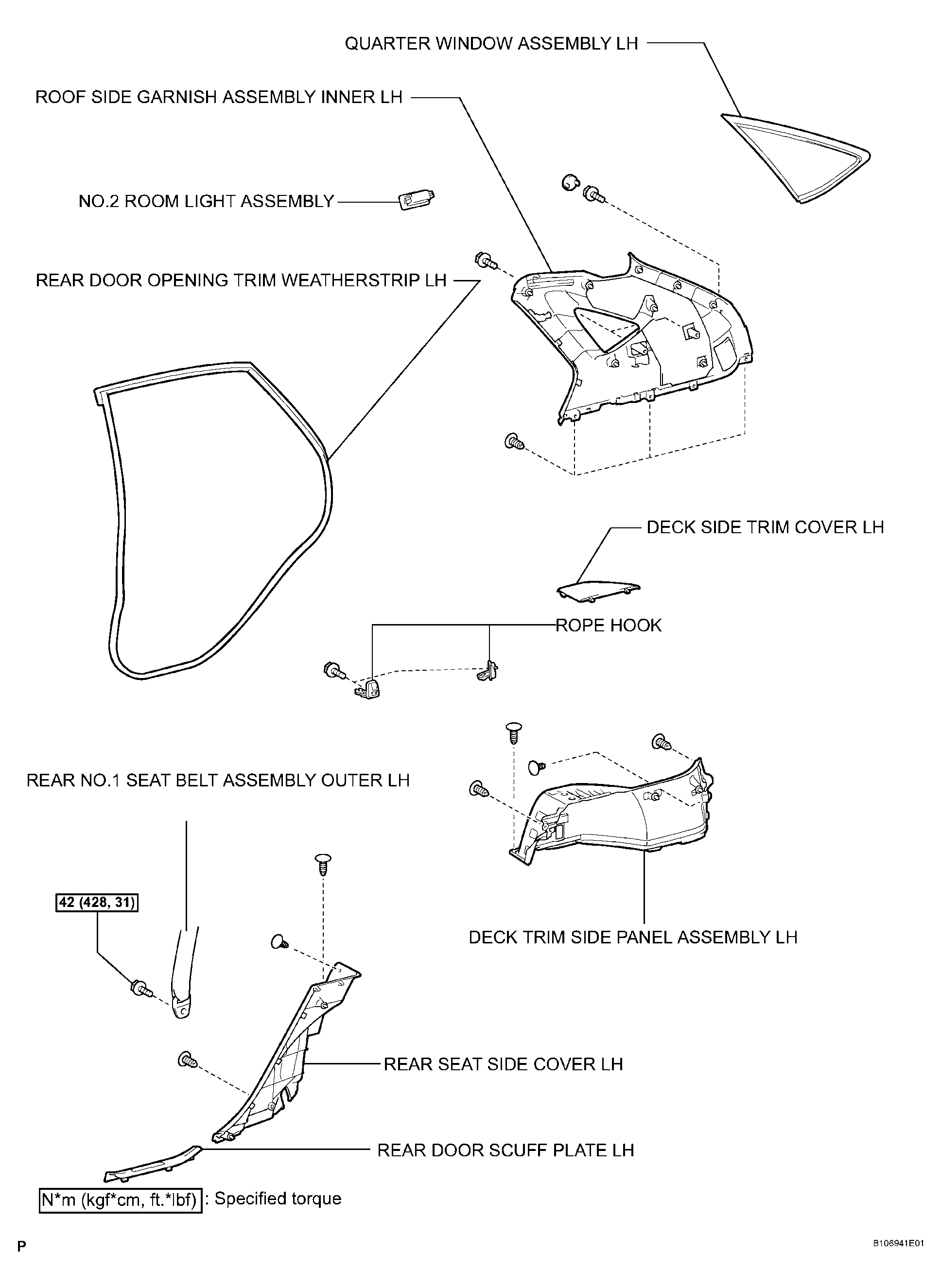

Fig 2: Rear Quarter Window Glass Replacement Components With Torque Specifications (2 Of 2)
G04116067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
