Electric Tension Reducer: Notes

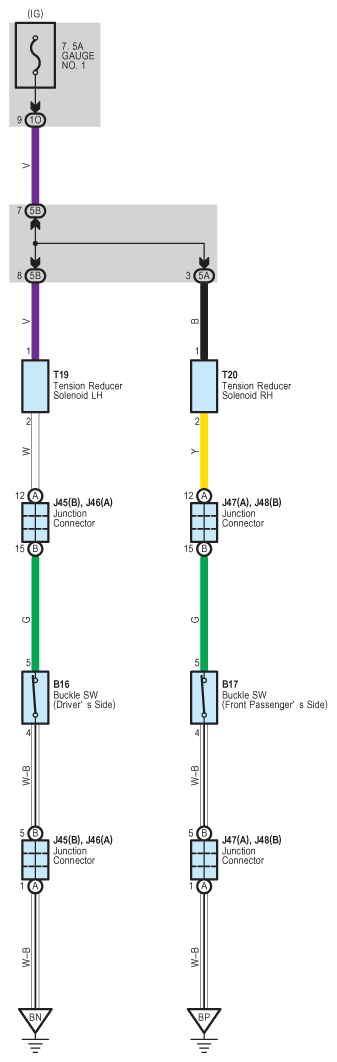

Fig 1: Electric Tension Reducer Wiring Diagram

G08914782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
