Fuel Lid Opener: Notes

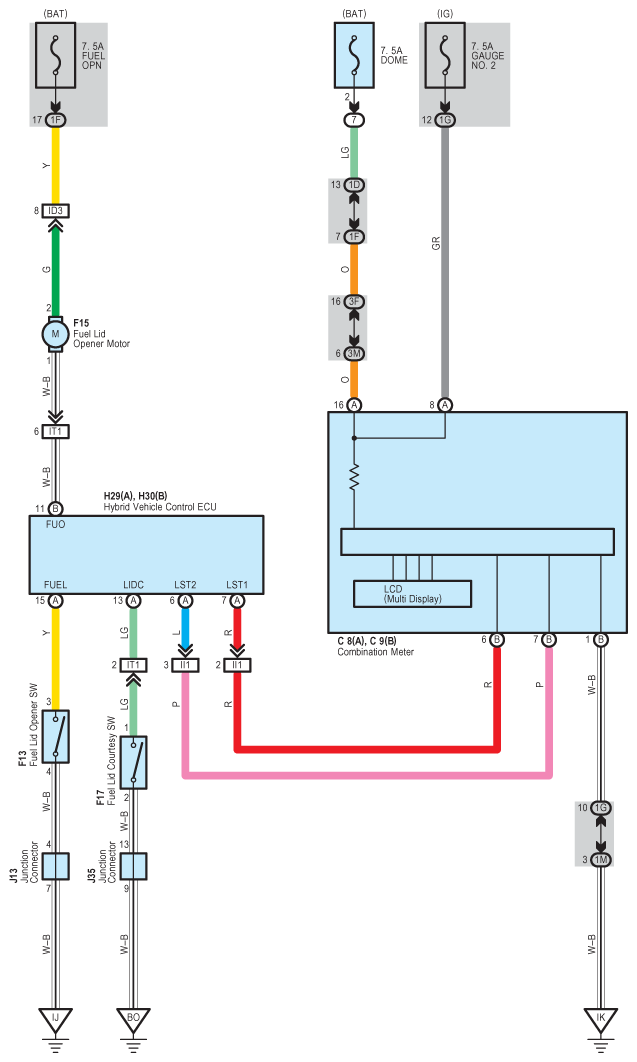

Fig 1: Fuel Lid Opener Wiring Diagram

G08914879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
