Rear Combination Lamp Lens: Components

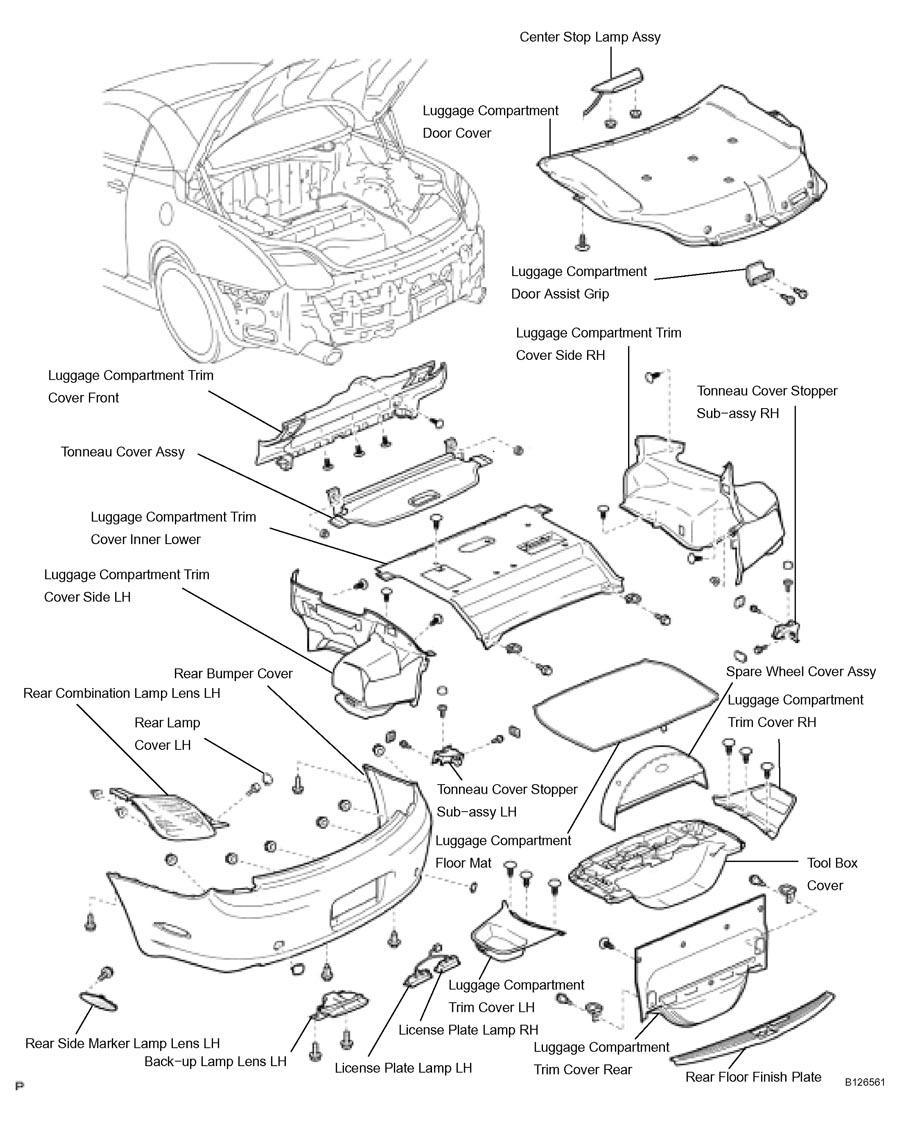

Fig 1: Identifying Rear Combination Lamp Lens Components

G04109552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
