LEXUS Navigation System - Diagnostics
›
Location
LEXUS Navigation System - Diagnostics: Location

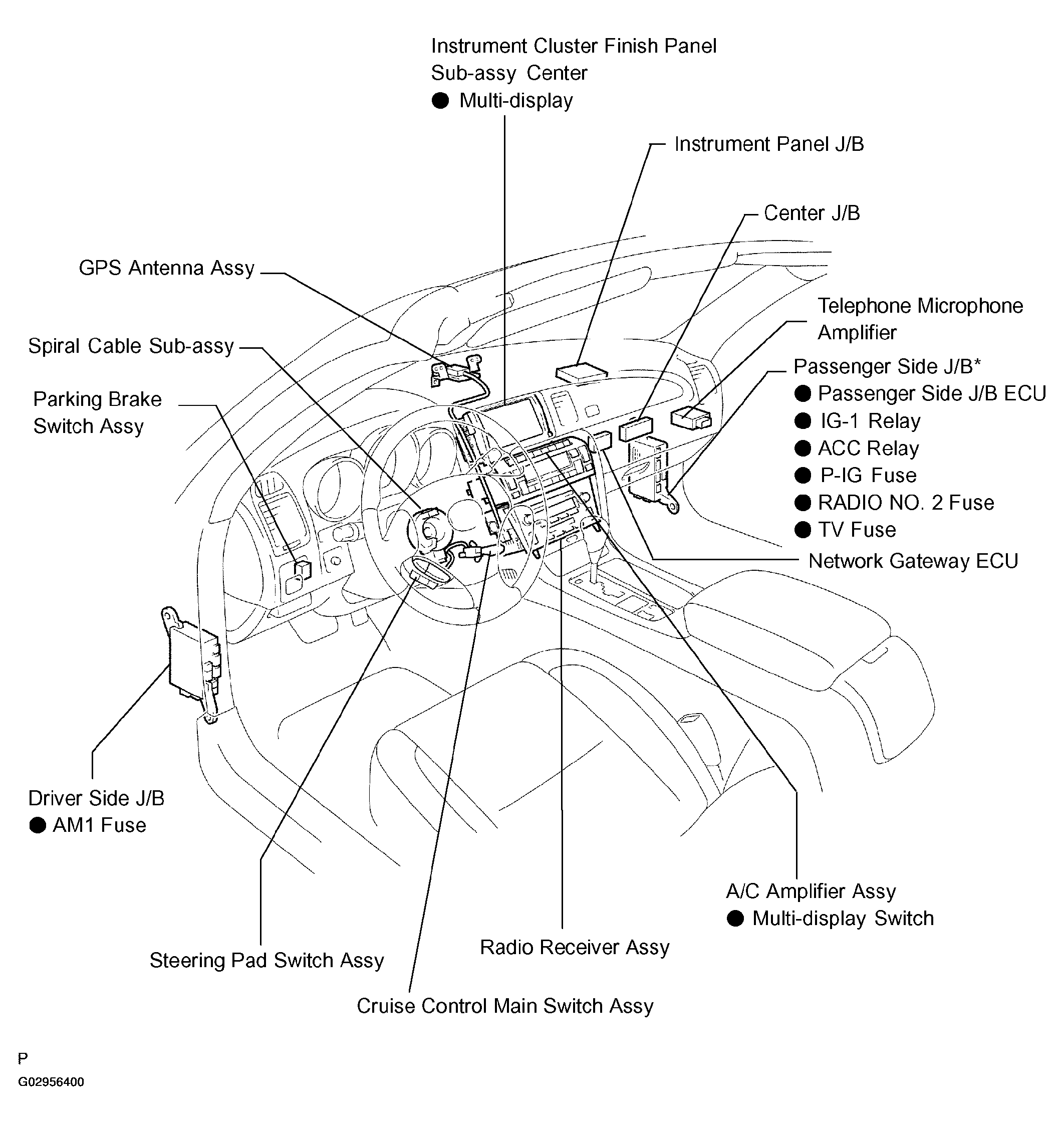

Fig 1: Identifying Lexus Navigation System Components & Replacements Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

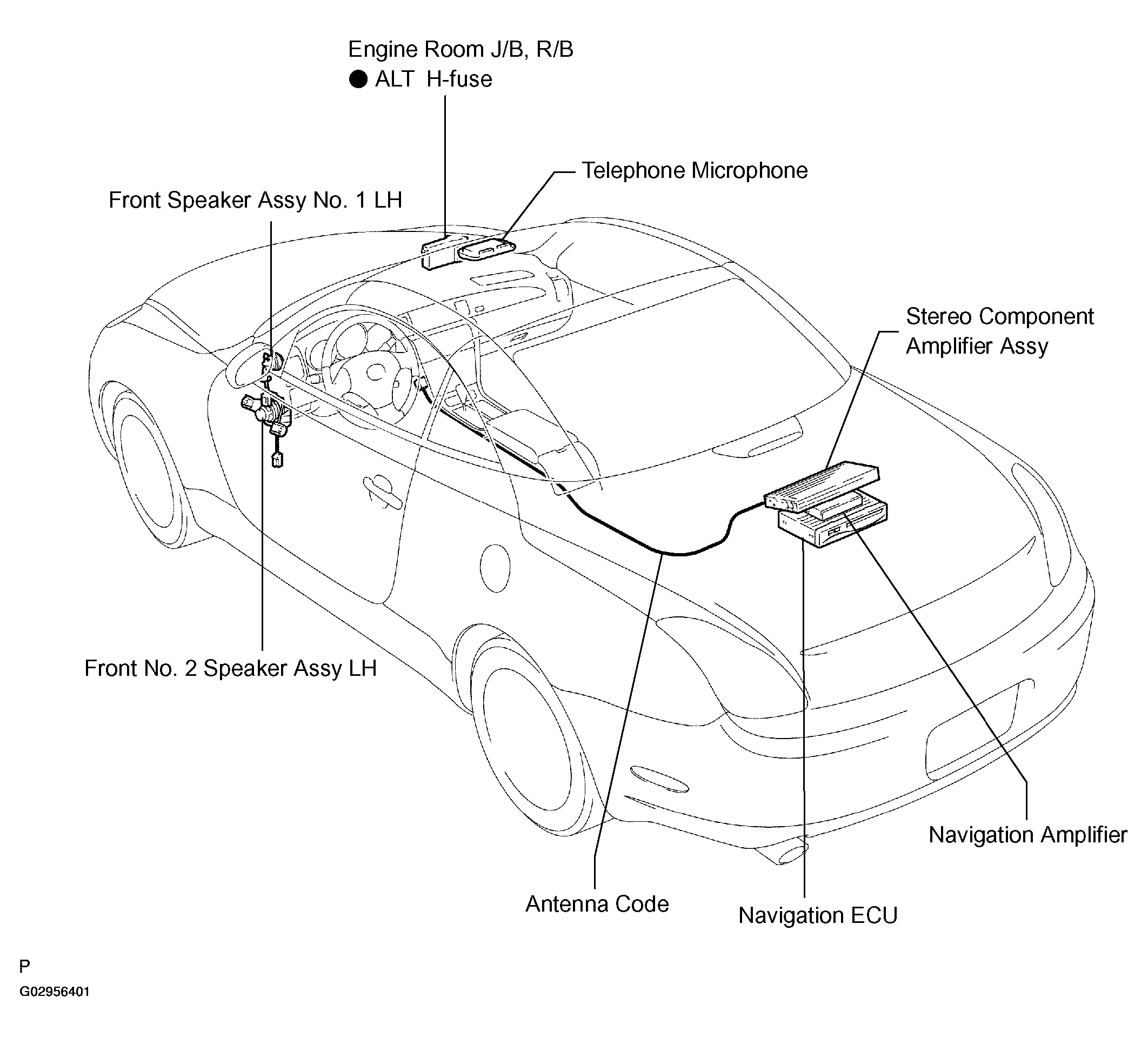

Fig 2: Identifying Lexus Navigation System Components & Replacements Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
