Power Mirror Control System - Diagnostics
›
Mirror Retract Switch Circuit
›
Wiring Diagram
Mirror Retract Switch Circuit: Wiring Diagram

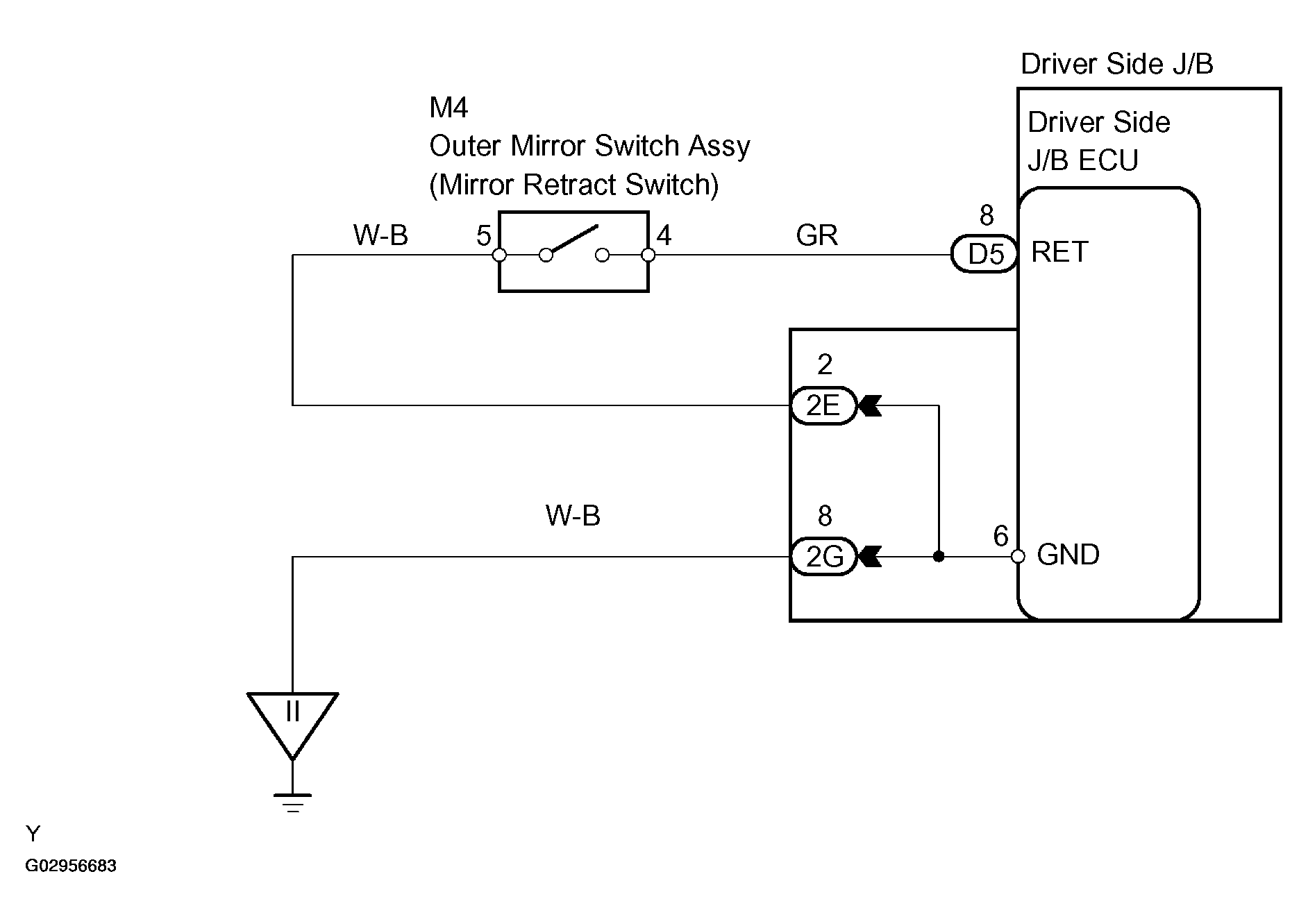

Fig 1: Mirror Retract Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
