Front Power Seat Control System (W/ Memory) - Diagnostics: Location

Fig 1: Locating Front Power Seat Control System Components & Replacements (W/Memory - 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

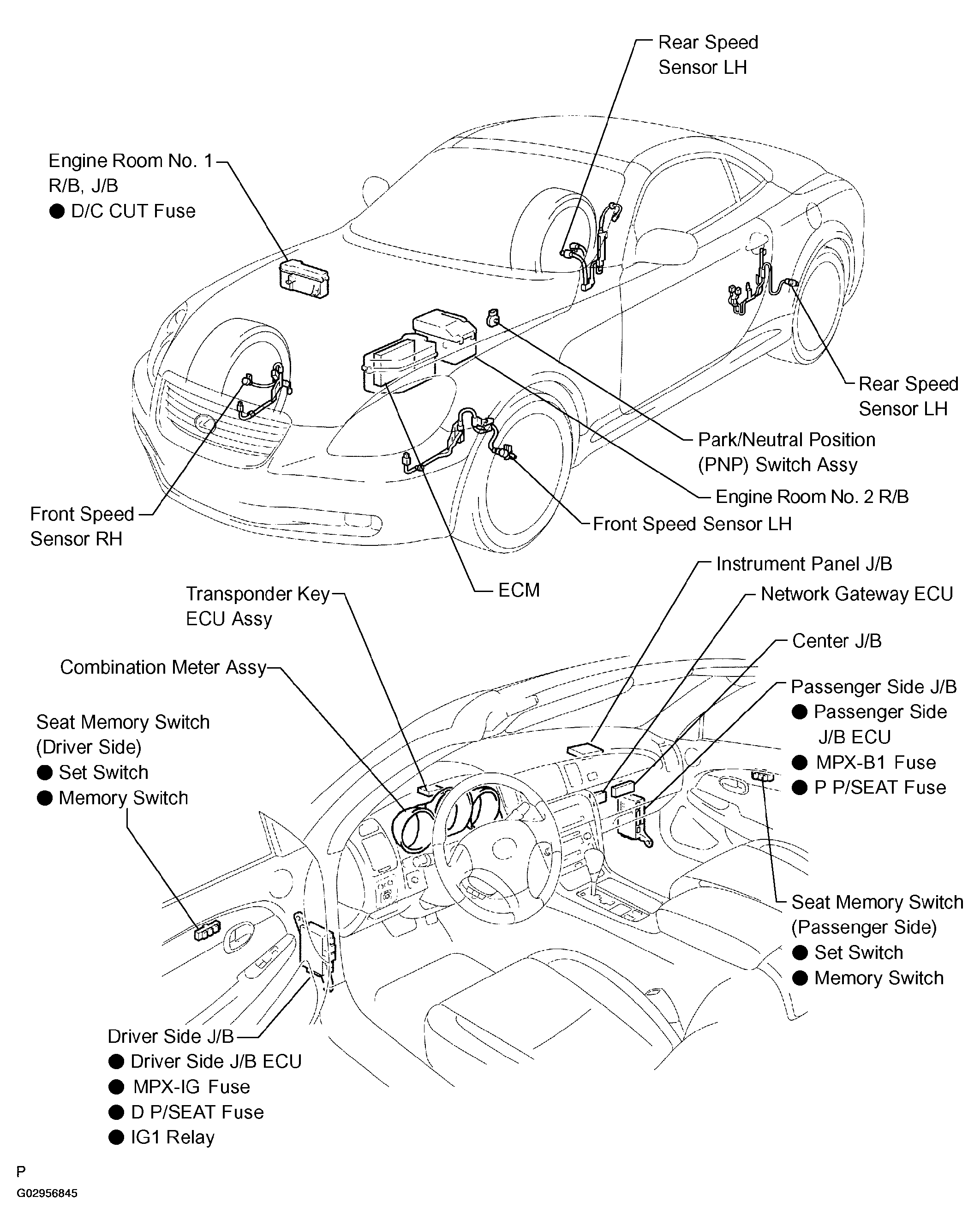

Fig 2: Locating Front Power Seat Control System Components & Replacements (W/Memory - 2 Of 3)

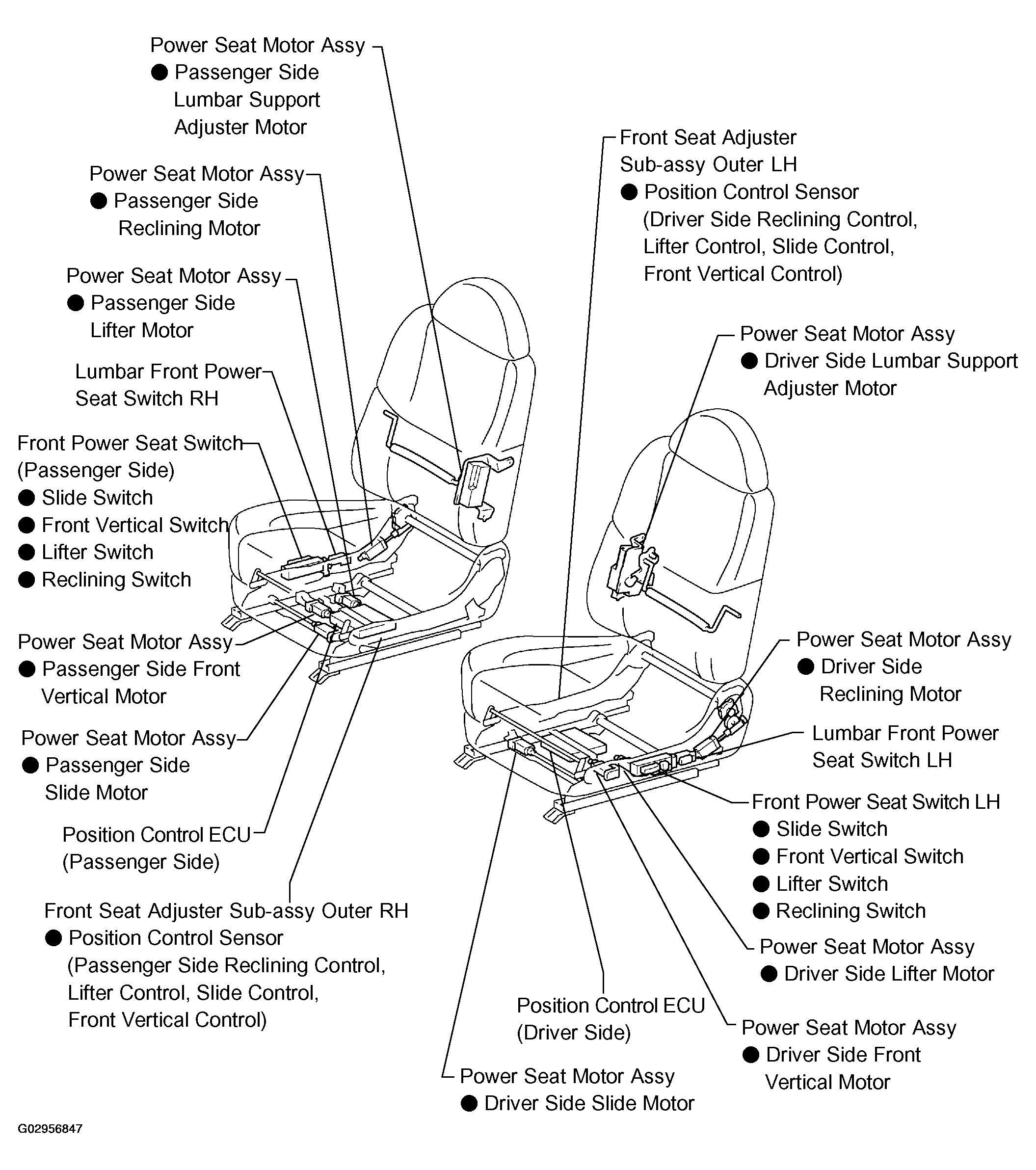

Fig 3: Locating Front Power Seat Control System Components & Replacements (W/Memory - 3 Of 3)
