Front Power Seat Control System (W/ Memory) - Diagnostics
›
System Diagram
System Diagram

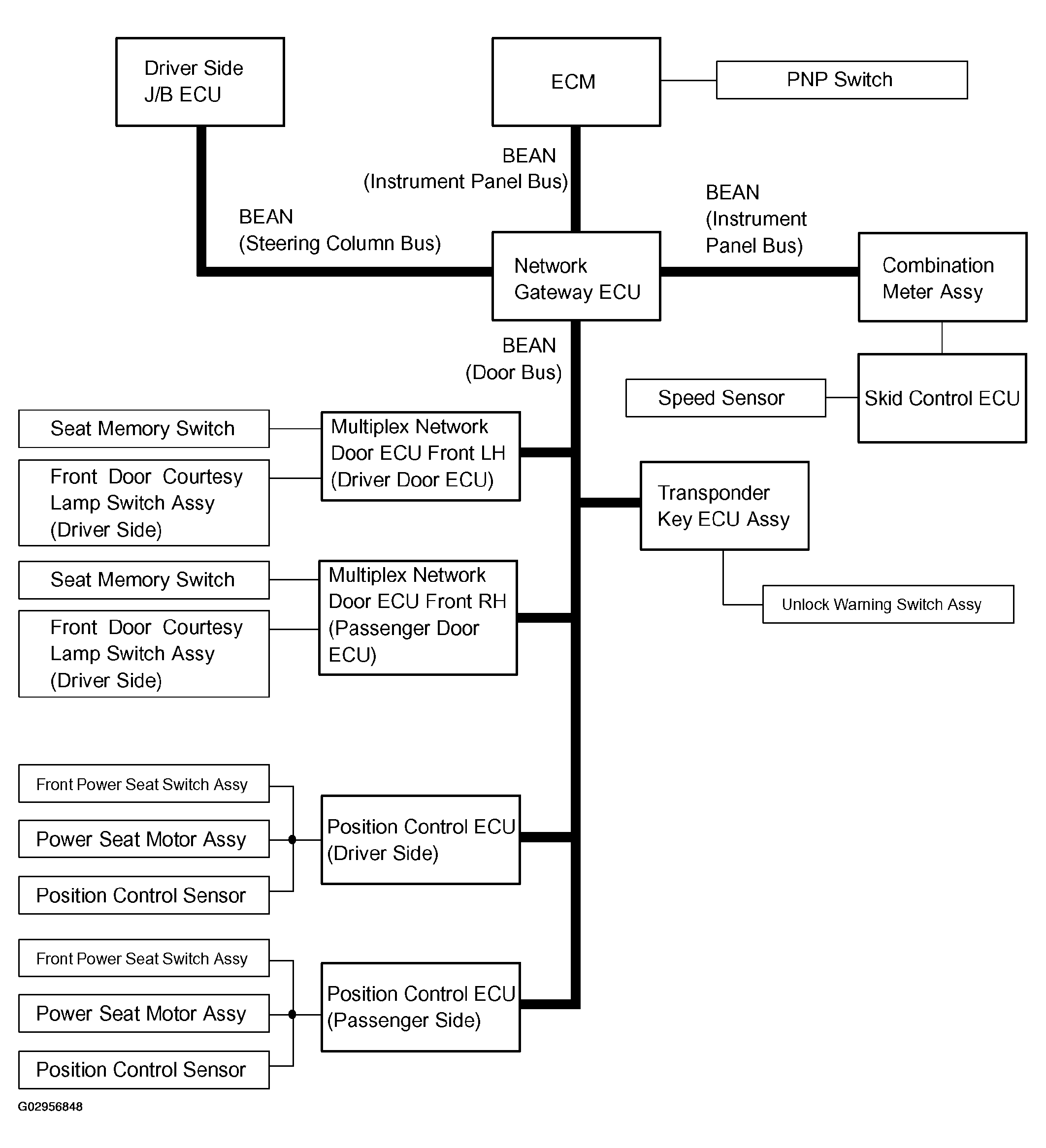

Fig 1: Front Power Seat Control System Diagram
