Automatic Air Conditioning: Notes

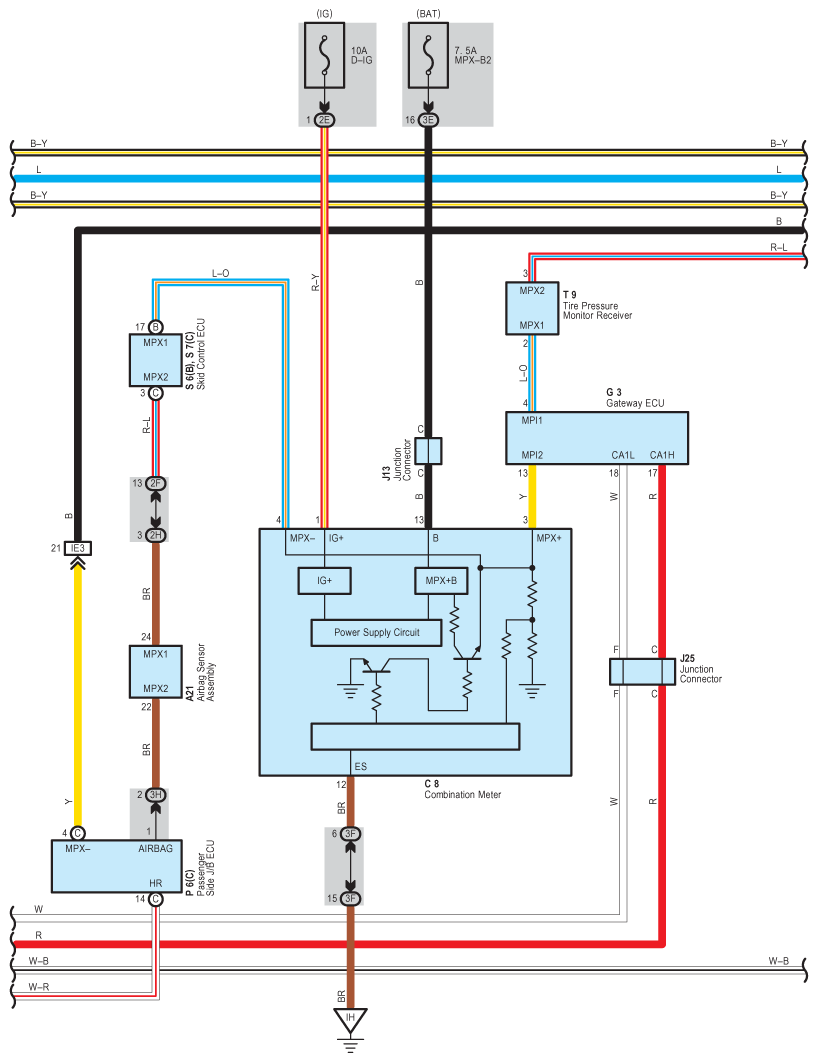

Fig 1: Automatic Air Conditioning - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

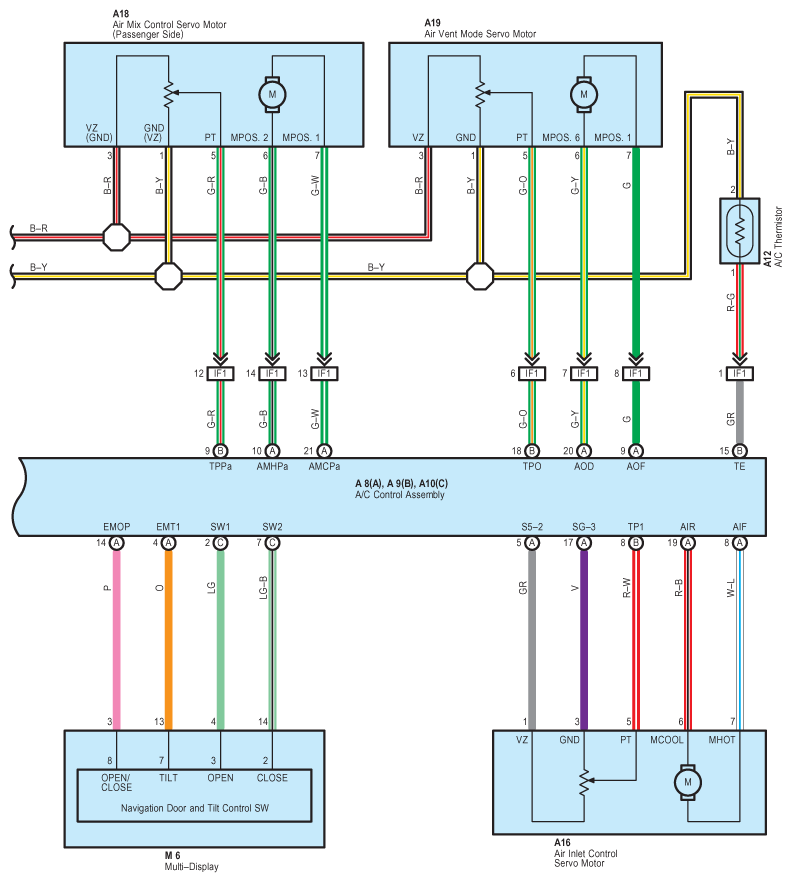

Fig 2: Automatic Air Conditioning - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

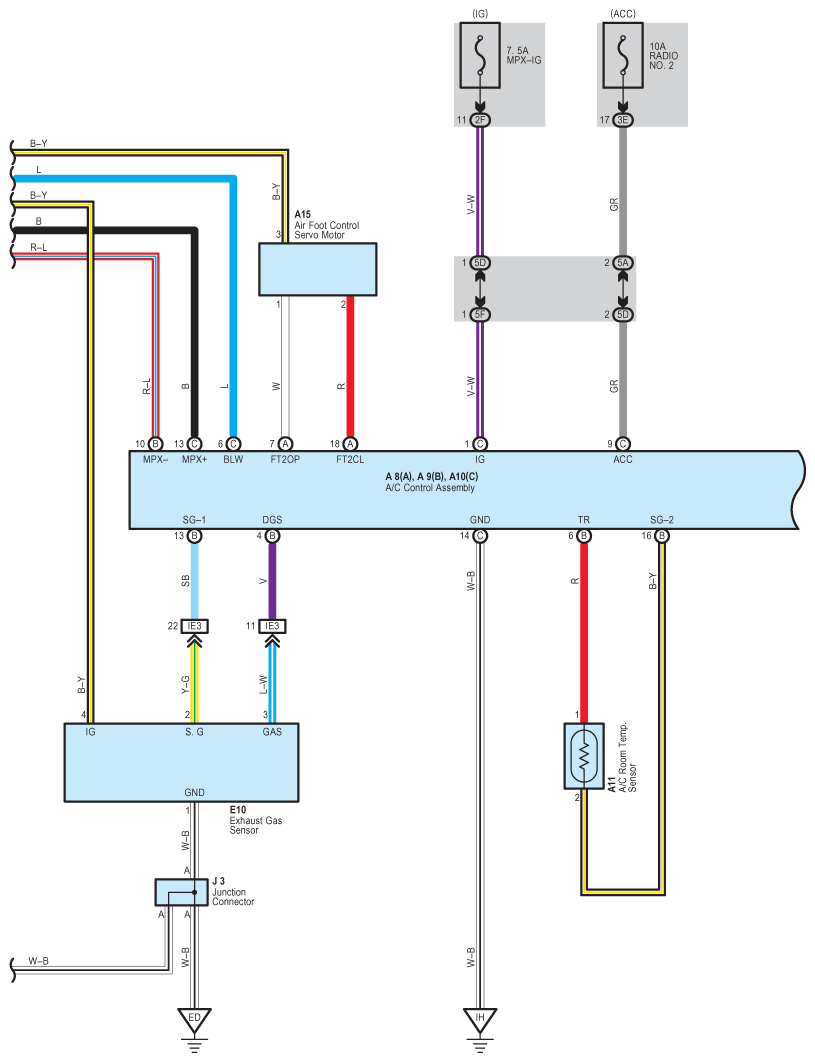

Fig 3: Automatic Air Conditioning - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

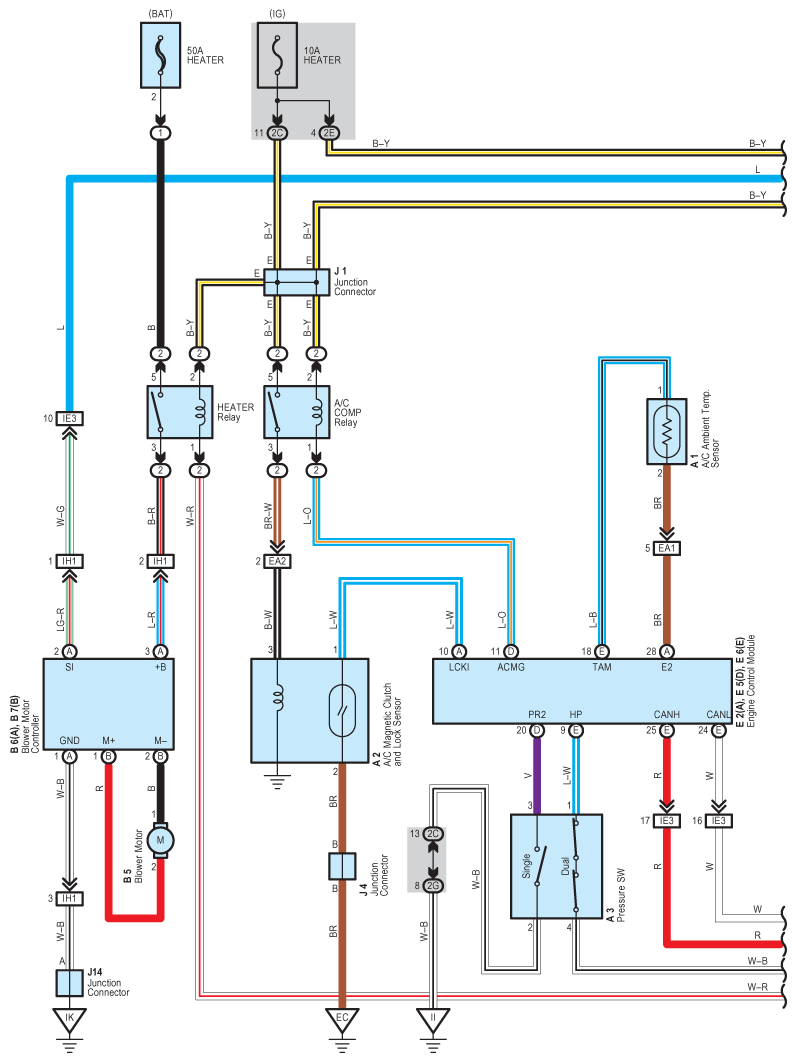

Fig 4: Automatic Air Conditioning - Wiring Diagram (4 Of 5)

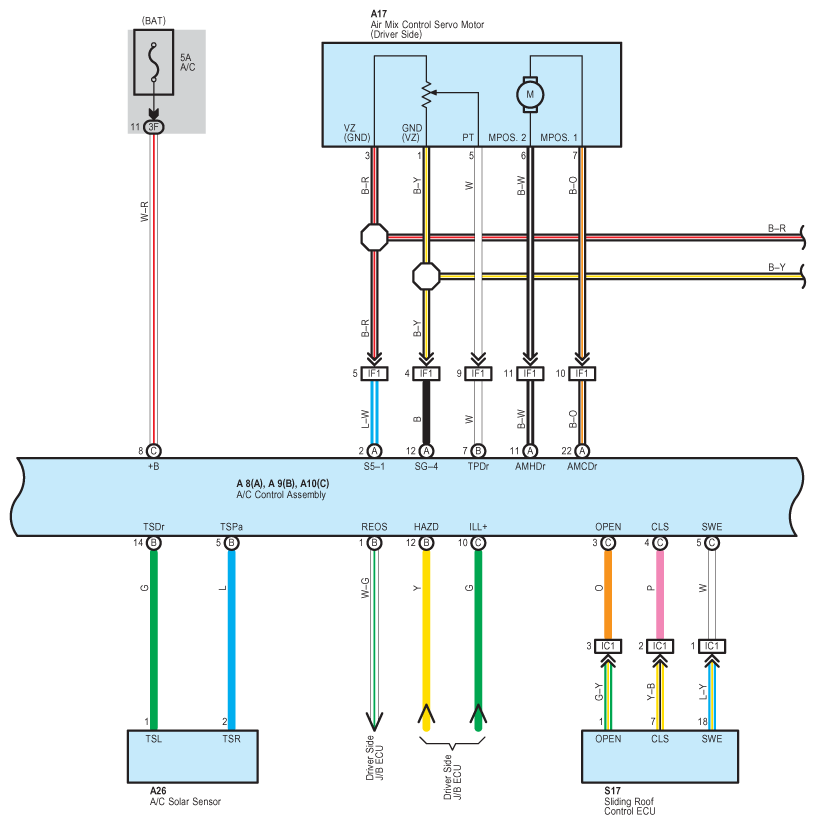

Fig 5: Automatic Air Conditioning - Wiring Diagram (5 Of 5)
