Cruise Control: Notes

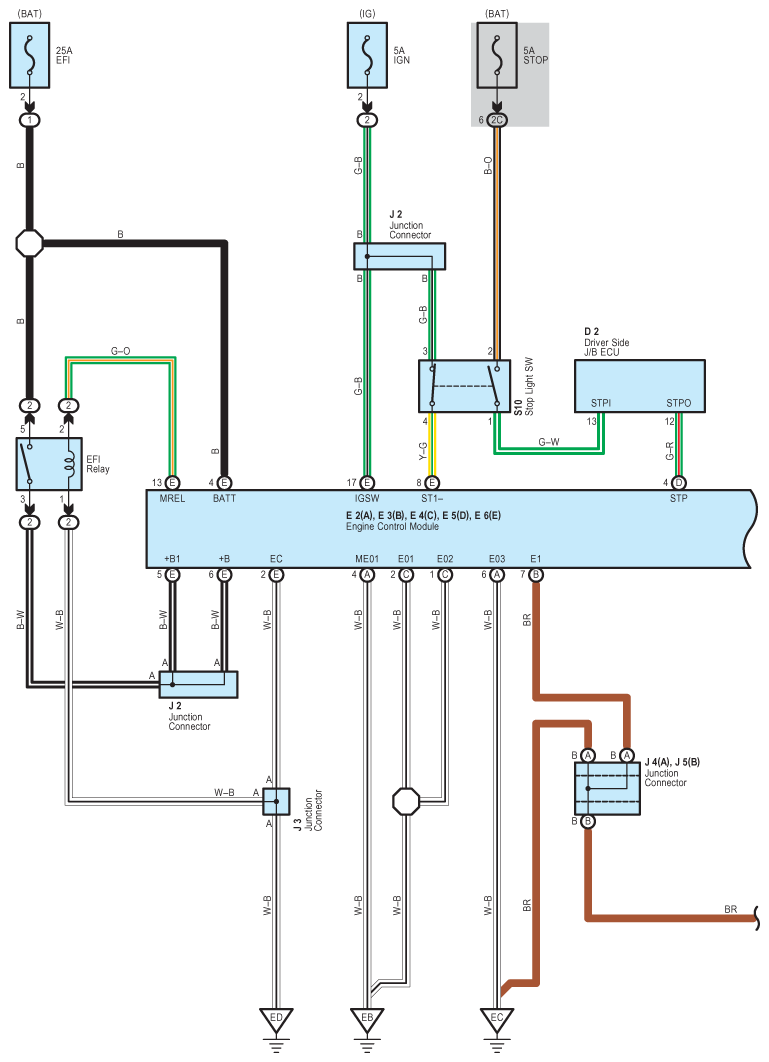

Fig 1: Cruise Control - Wiring Diagram (1 Of 5)
G08930523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

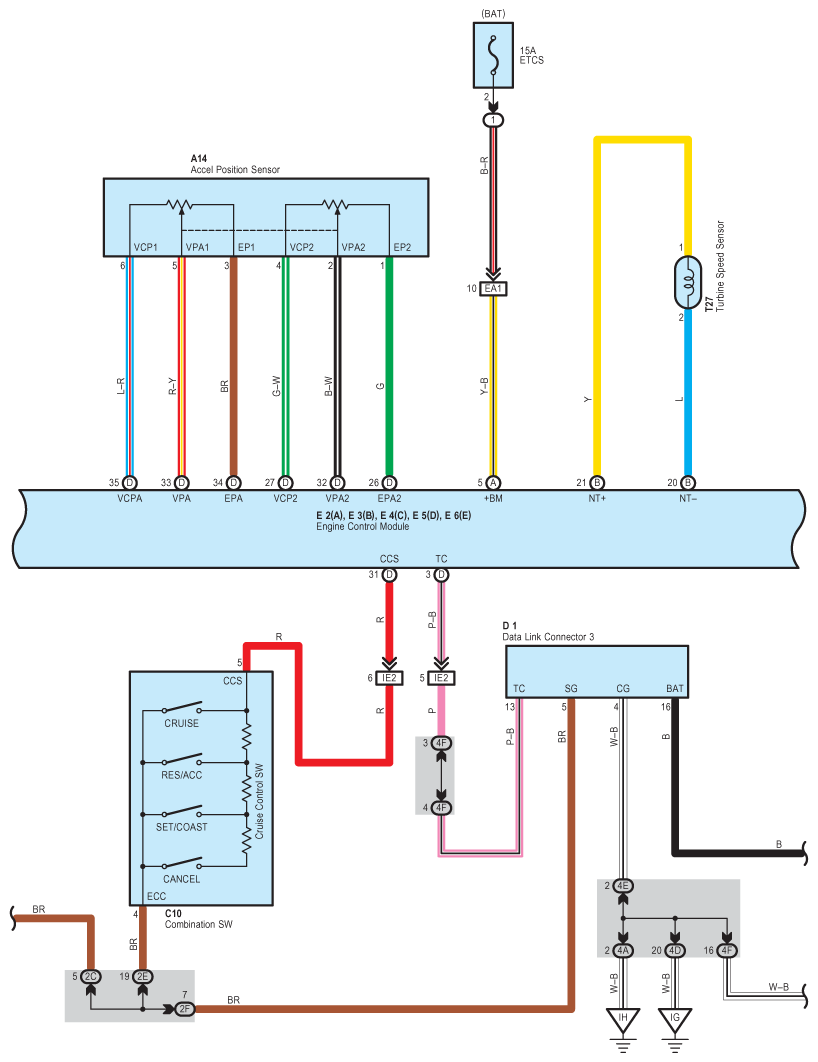

Fig 2: Cruise Control - Wiring Diagram (2 Of 5)
G08930524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

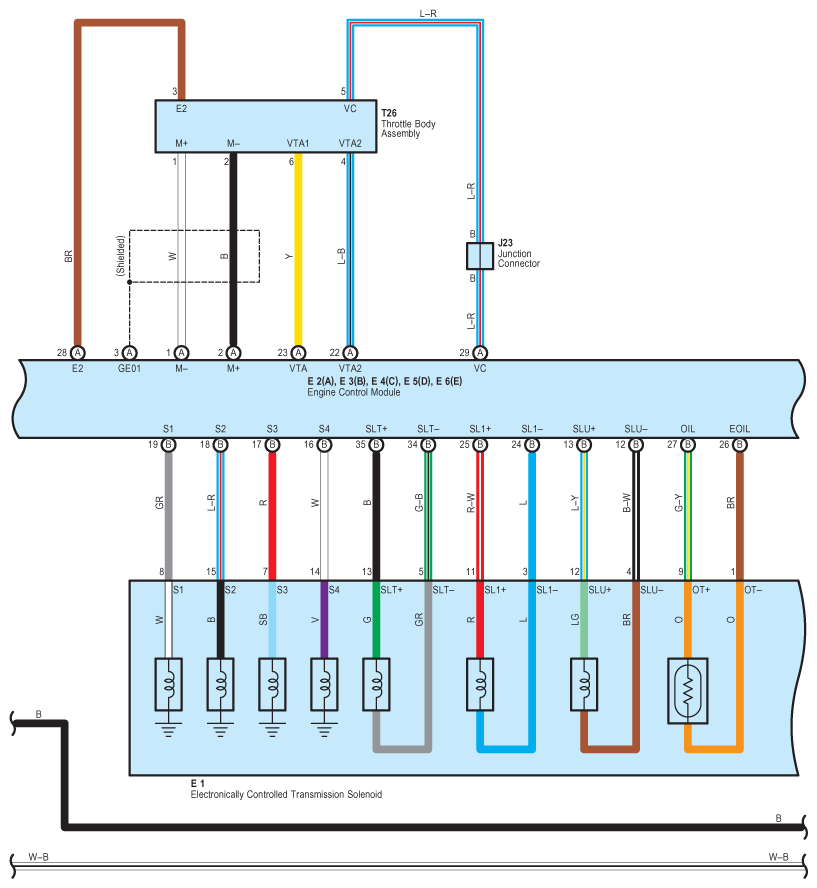

Fig 3: Cruise Control - Wiring Diagram (3 Of 5)
G08930525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

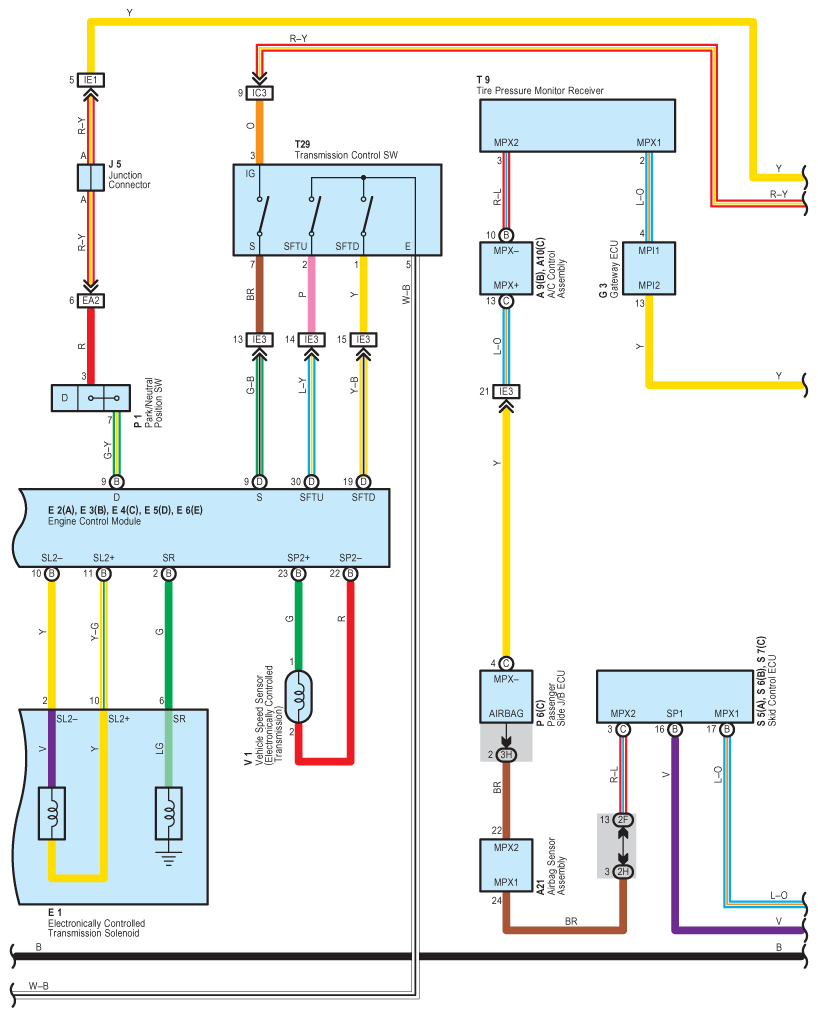

Fig 4: Cruise Control - Wiring Diagram (4 Of 5)
G08930526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

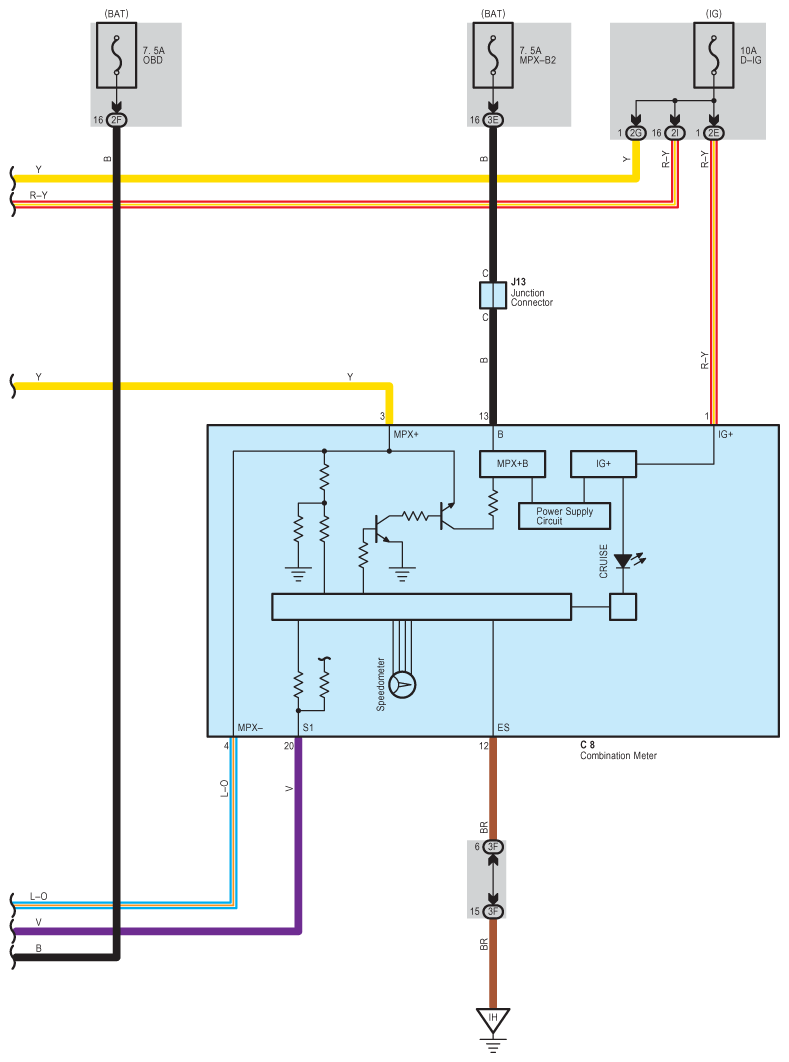

Fig 5: Cruise Control - Wiring Diagram (5 Of 5)
G08930527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
