Home › Lexus › 2006 › SC 430 › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Electric Tension Reducer › Notes

Electric Tension Reducer: Notes

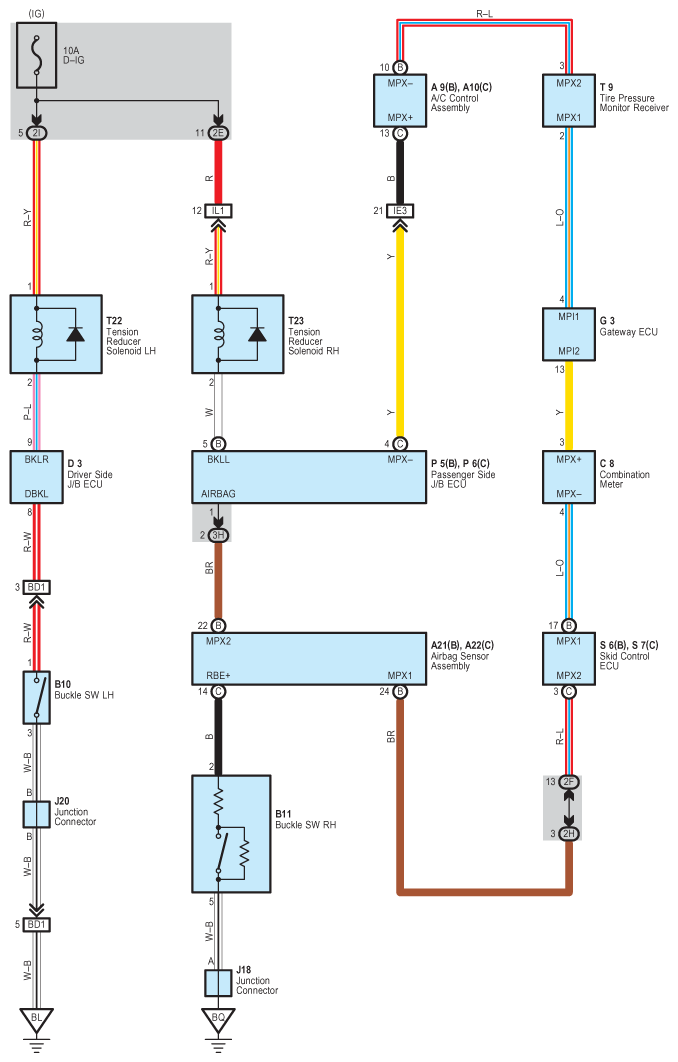

Fig 1: Electric Tension Reducer - Circuit Diagram
G08930554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
