Radiator Fan: Notes

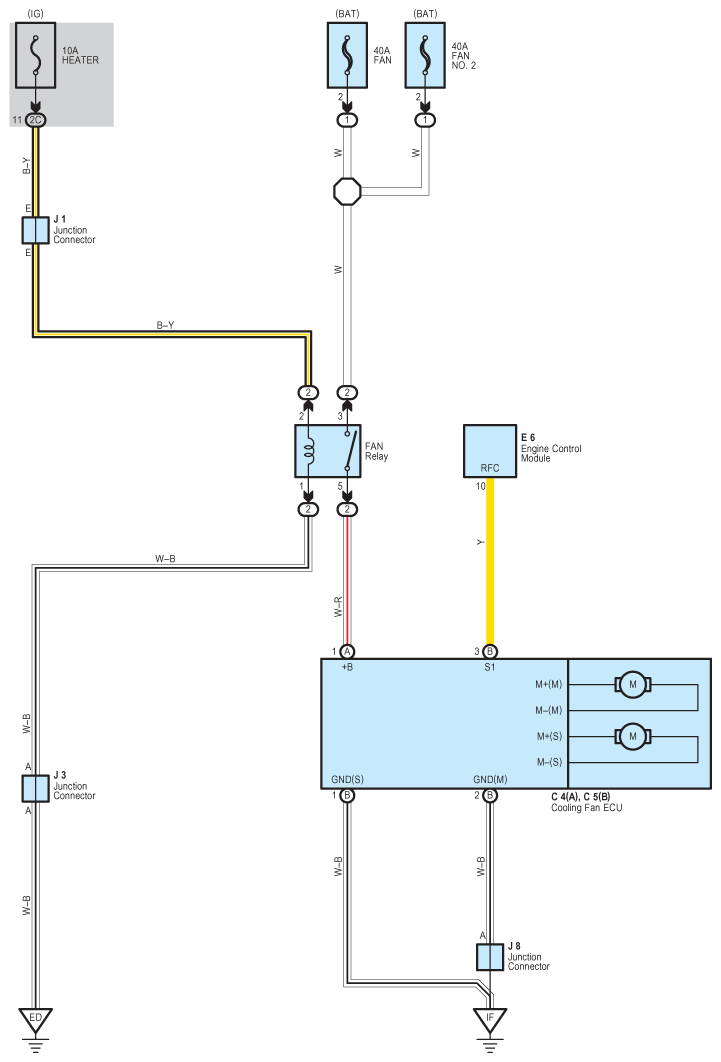

Fig 1: Radiator Fan - Circuit Diagram

G08930575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
