OEM System Circuits: Taillight: Notes

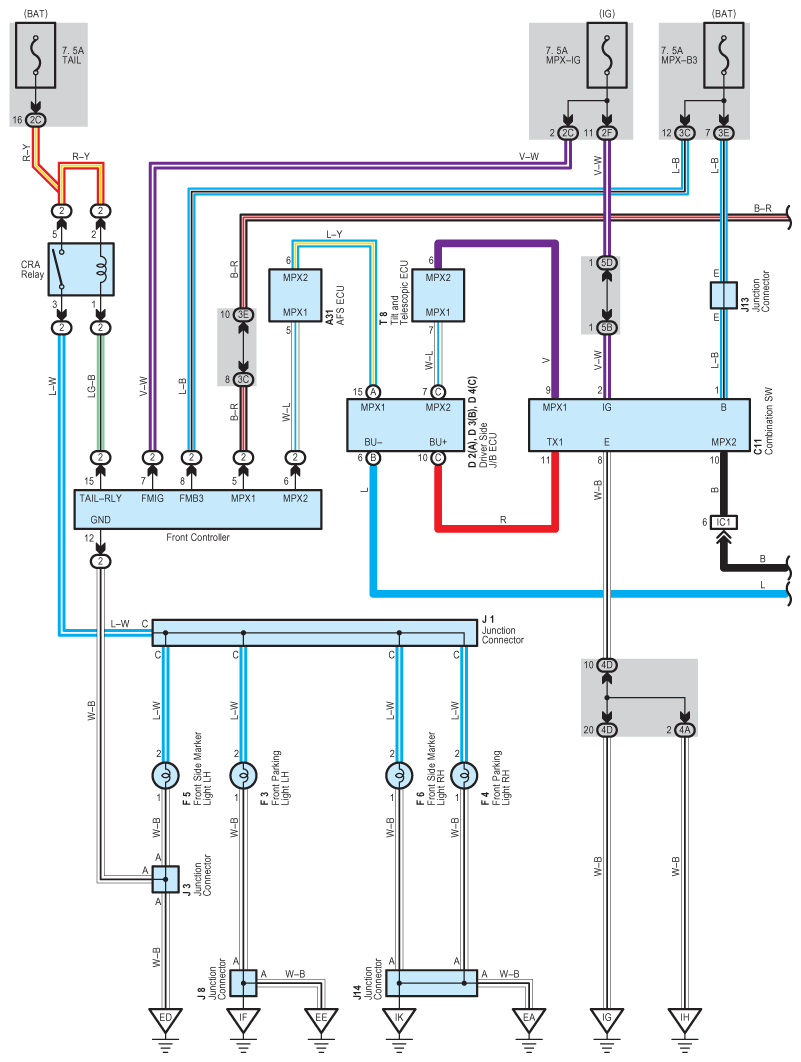

Fig 1: Taillight - Wiring Diagram (1 Of 3)

G08930459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

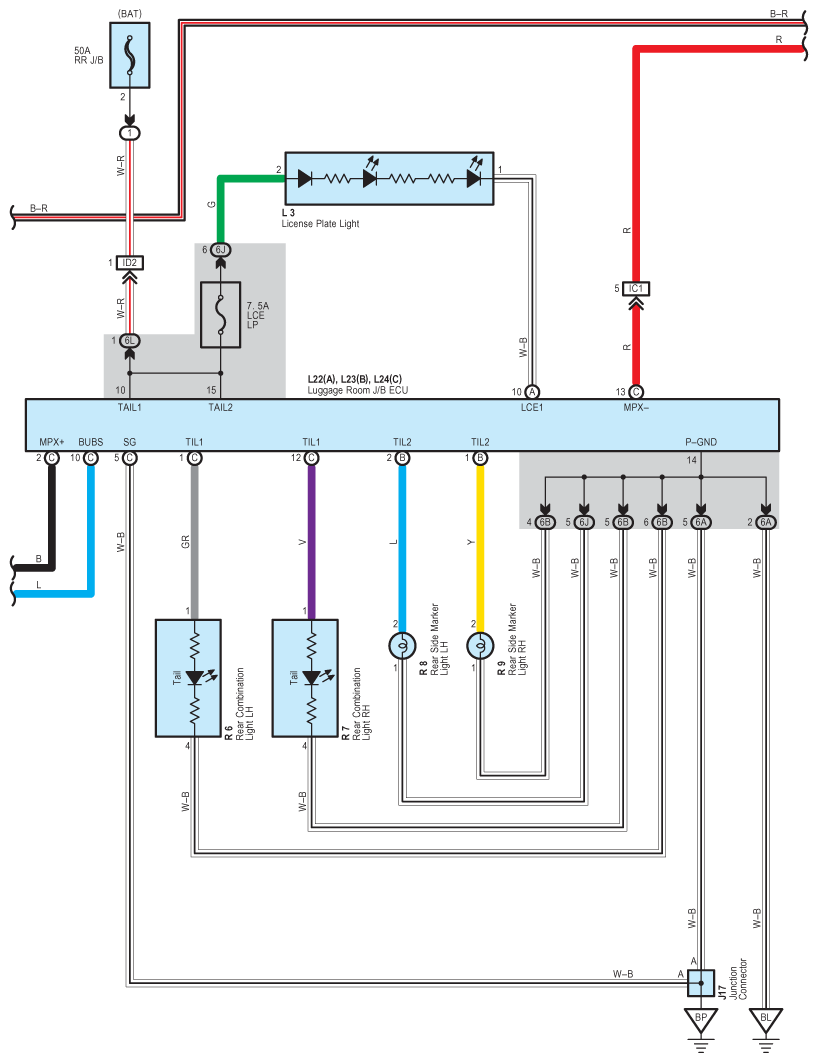

Fig 2: Taillight - Wiring Diagram (2 Of 3)

G08930460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

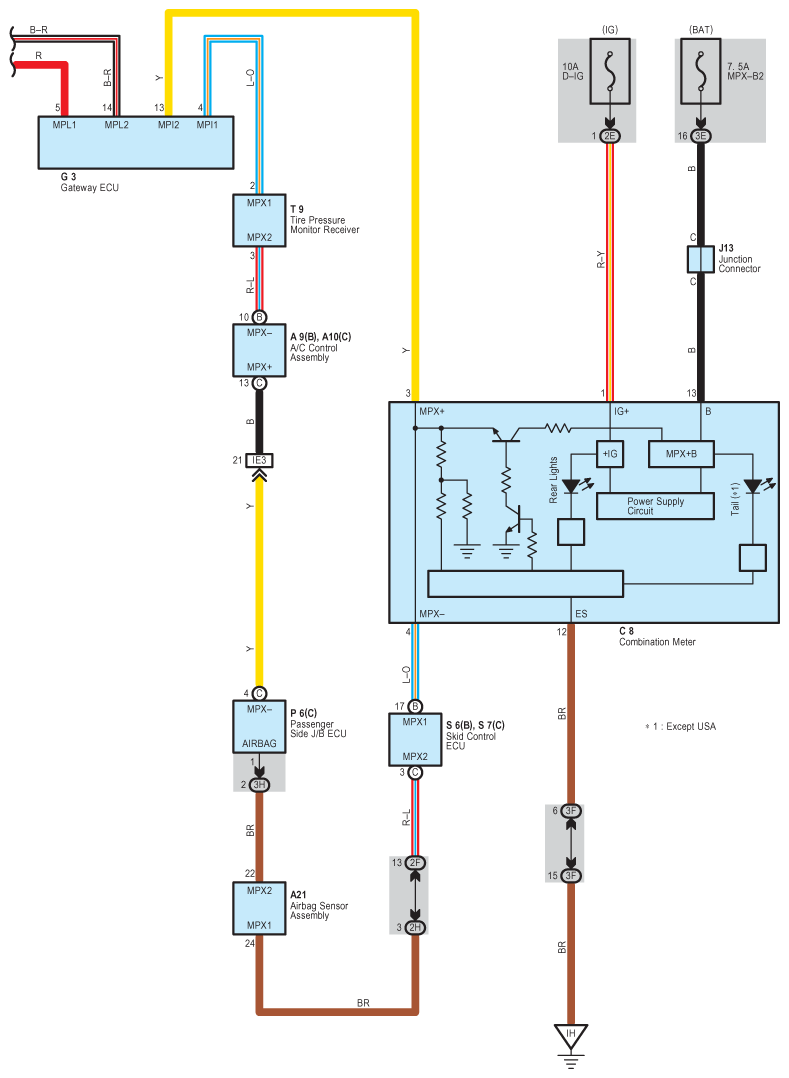

Fig 3: Taillight - Wiring Diagram (3 Of 3)

G08930461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
