Combination Meter ASSY: Overhaul

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT   )
  2. REMOVE COMBINATION METER ASSY (See  REPLACEMENT   )
  3. REMOVE COMBINATION METER GLASS
    1. Detach the 9 claws and remove the glass.

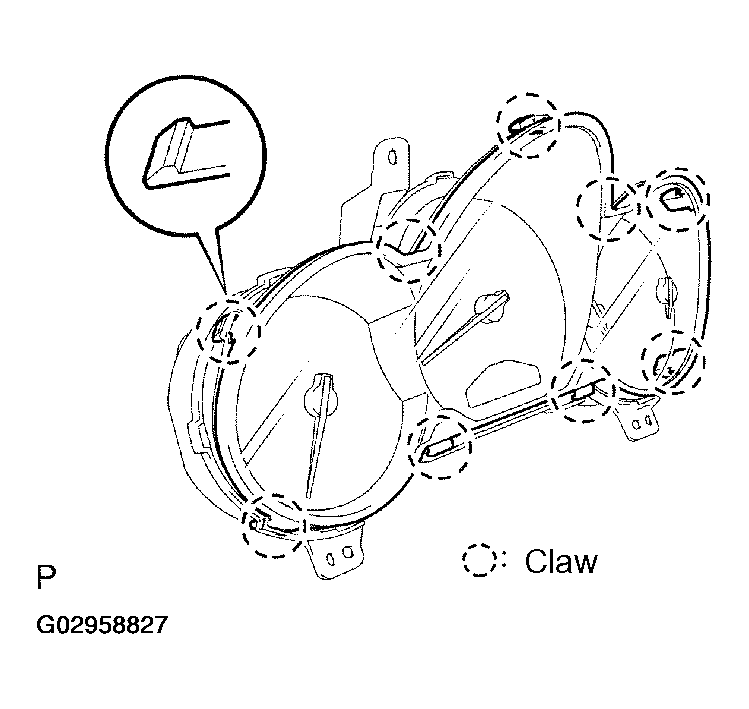

      Fig 1: Removing Combination Meter Glass
      G02958827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
