Cooling Fan
›
Cooling Fan System
›
System Diagram
System Diagram

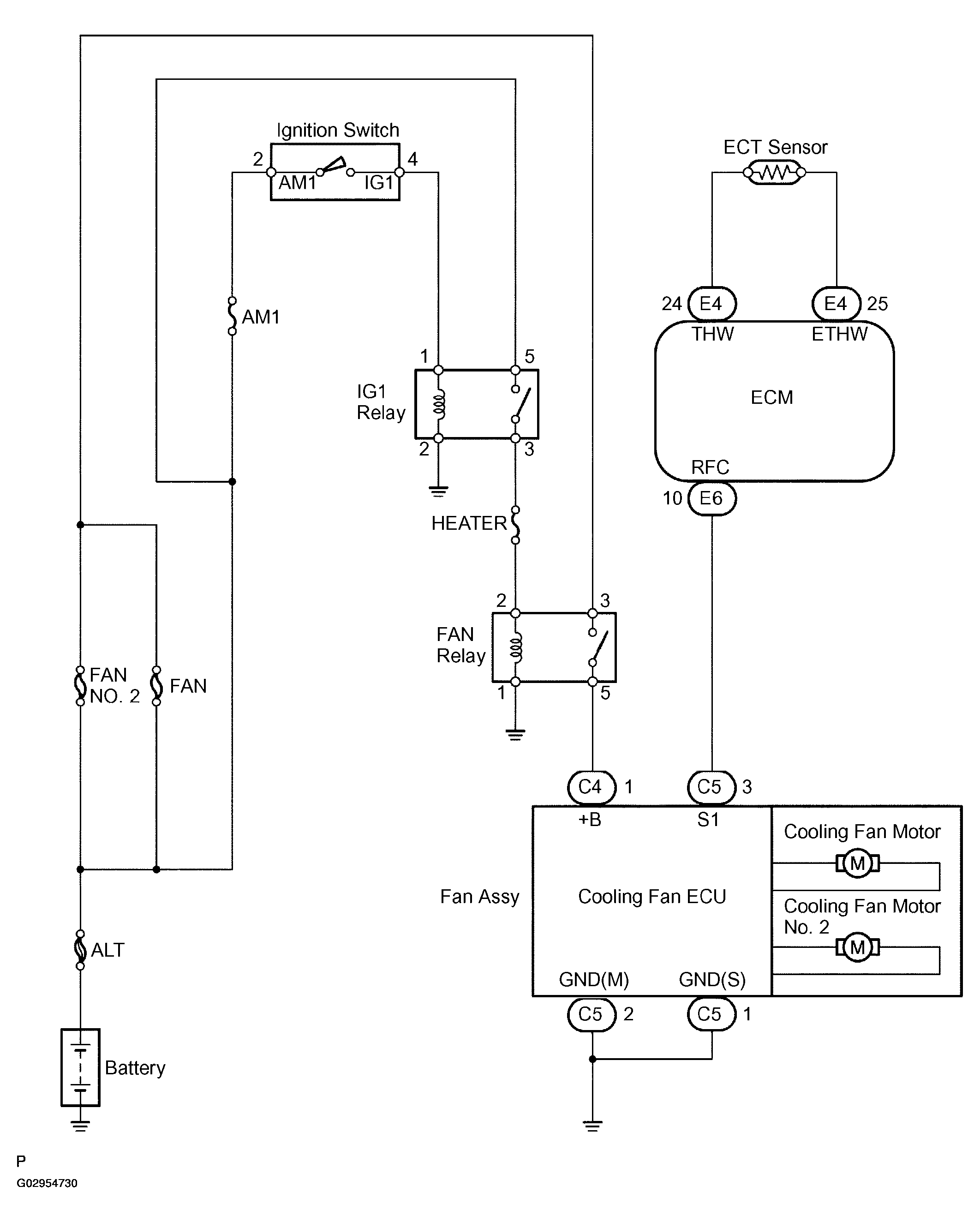

Fig 1: System Diagram - Cooling Fan System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
