Water Pump ASSY: Components

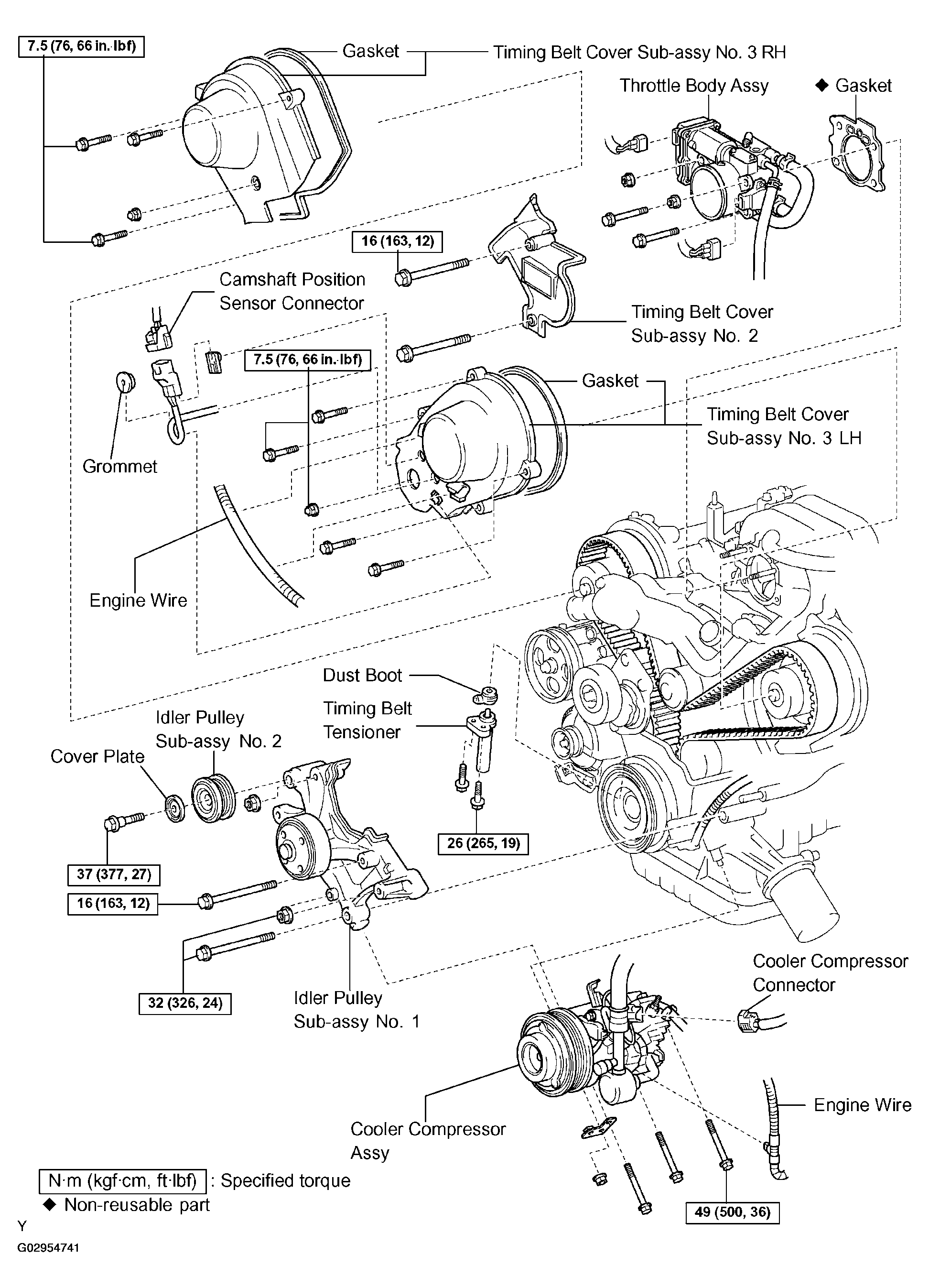

Fig 1: Identifying Water Pump Assy Components & Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

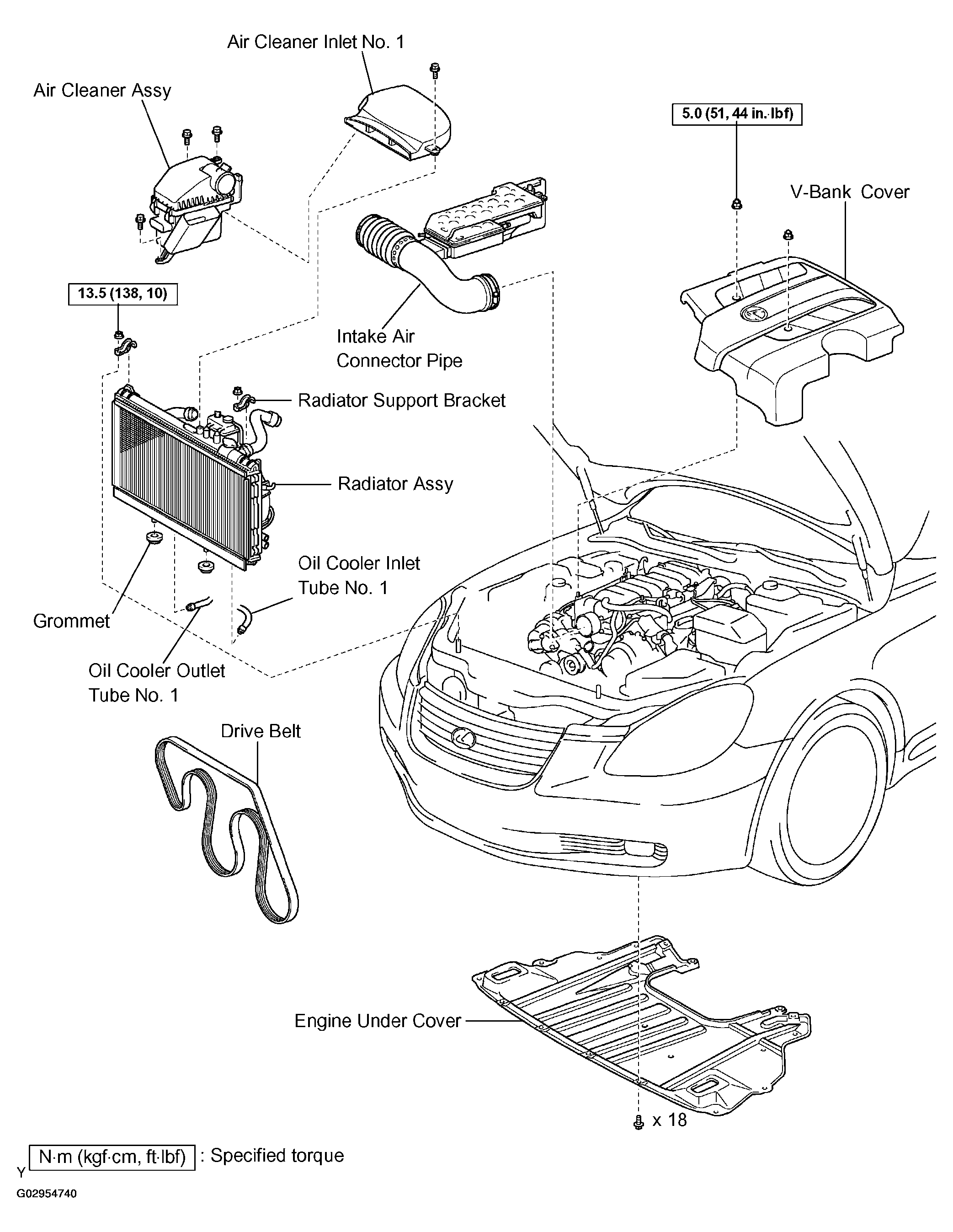

Fig 2: Identifying Water Pump Assy Components & Replacements (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

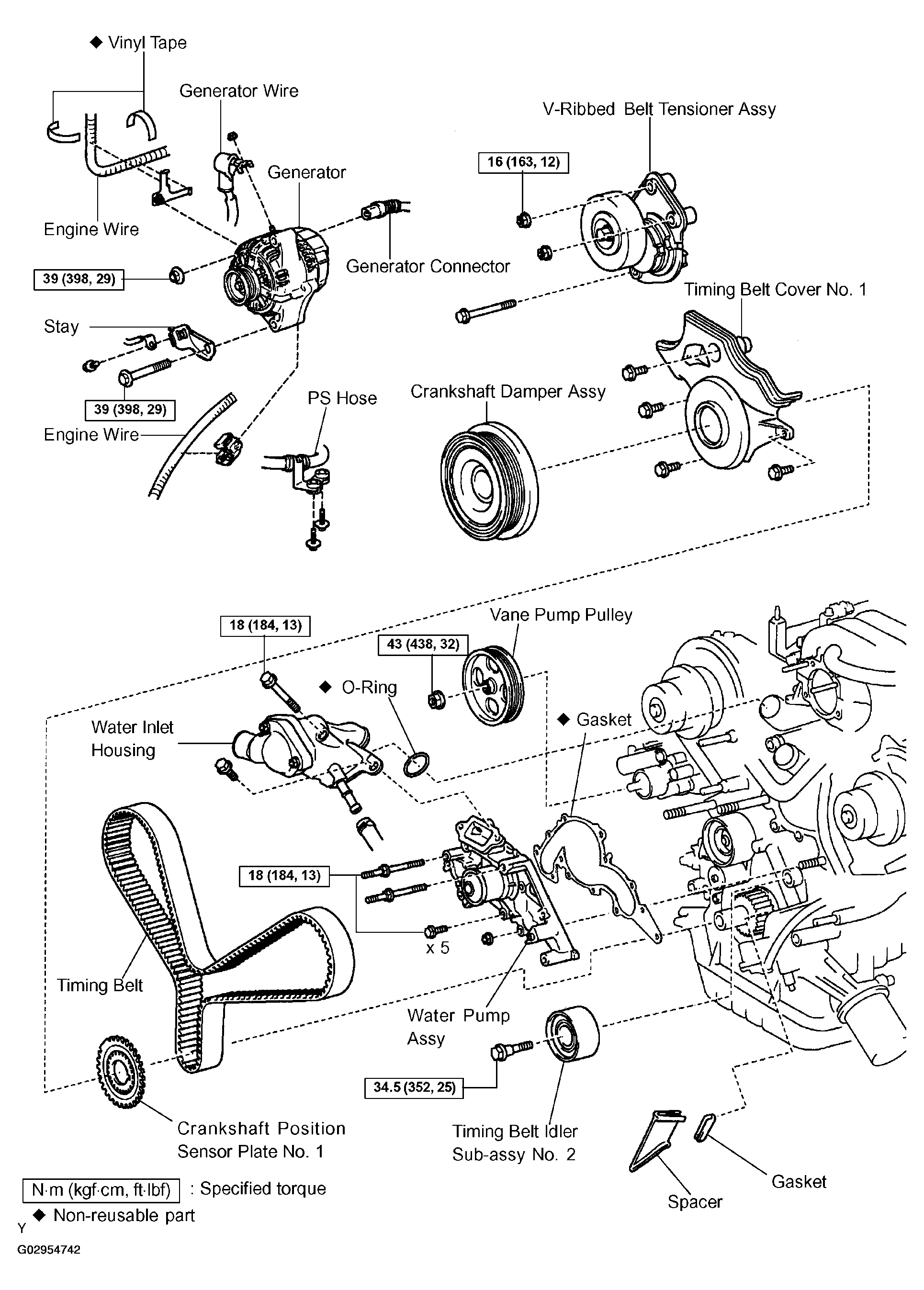

Fig 3: Identifying Water Pump Assy Components & Replacements (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
