DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem
›
Wiring Diagram
DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem: Wiring Diagram

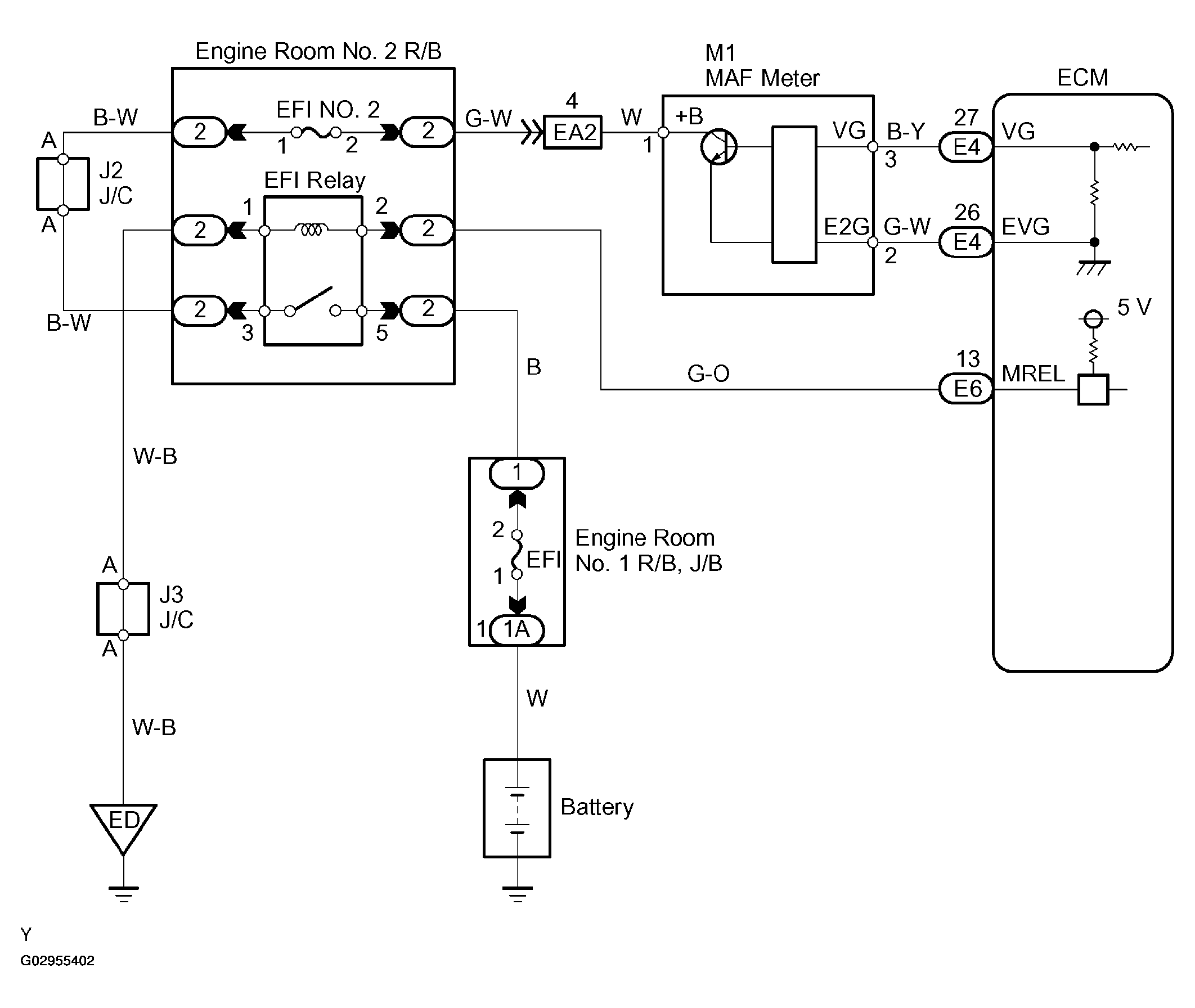

Fig 1: Mass Or Volume Air Flow Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
