SFI System - Diagnostics
›
DTC P0110, P0112, P0113: Intake Air Temperature Circuit, Intake Air Temperature Circuit Low Input/High
›
Monitor Strategy
Monitor Strategy

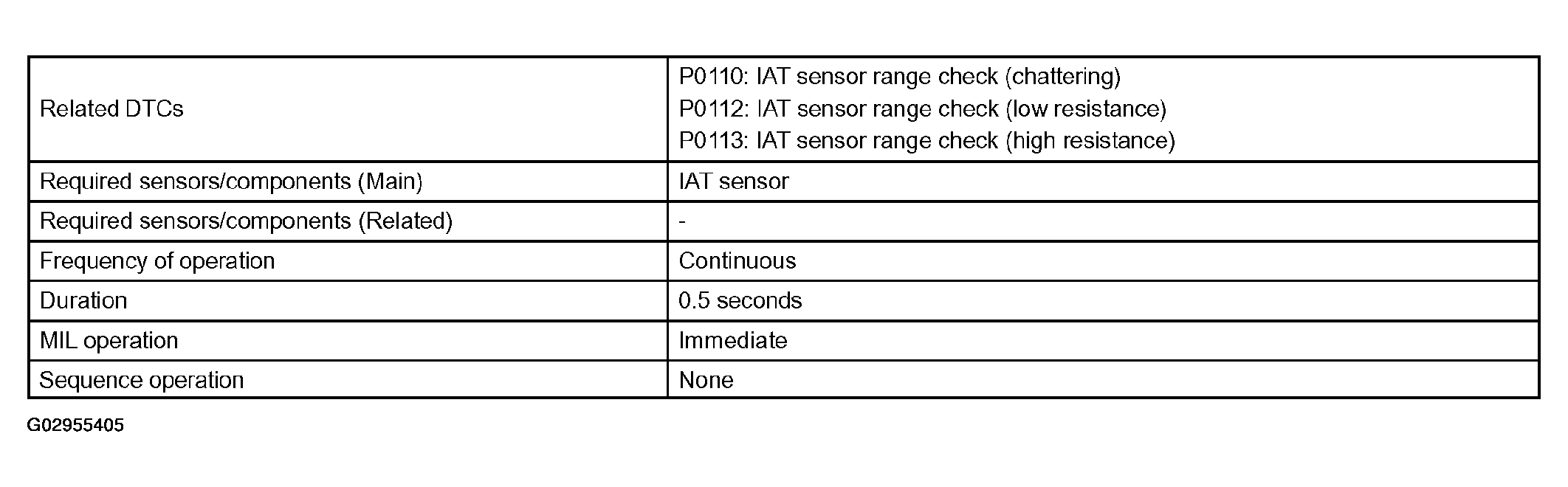

Fig 1: Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
