Mil Circuit: Wiring Diagram

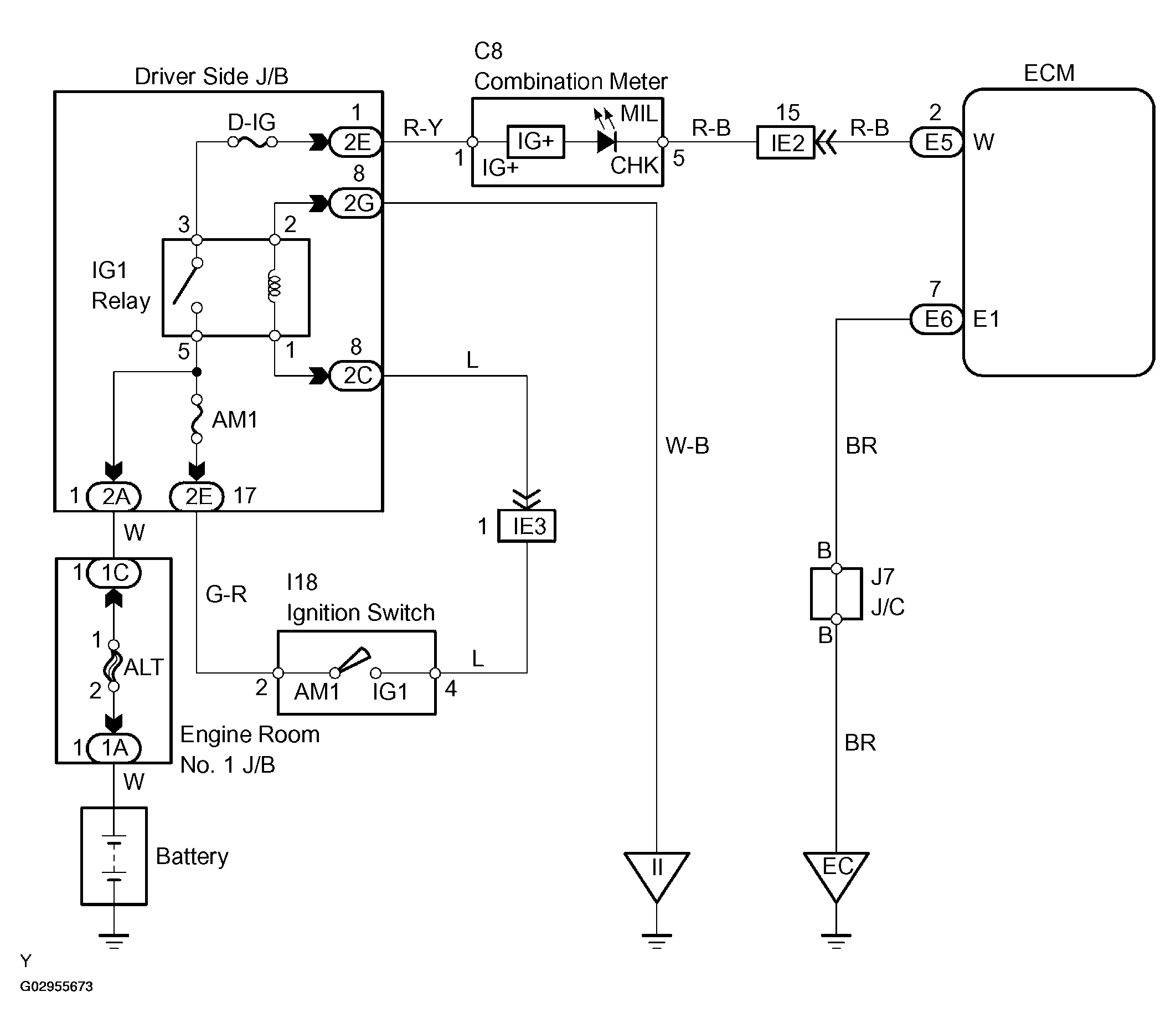

Fig 1: Malfunction Indicator Lamp Wiring Diagram

G02955673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
