Shift Lock System
›
Location
Shift Lock System: Location

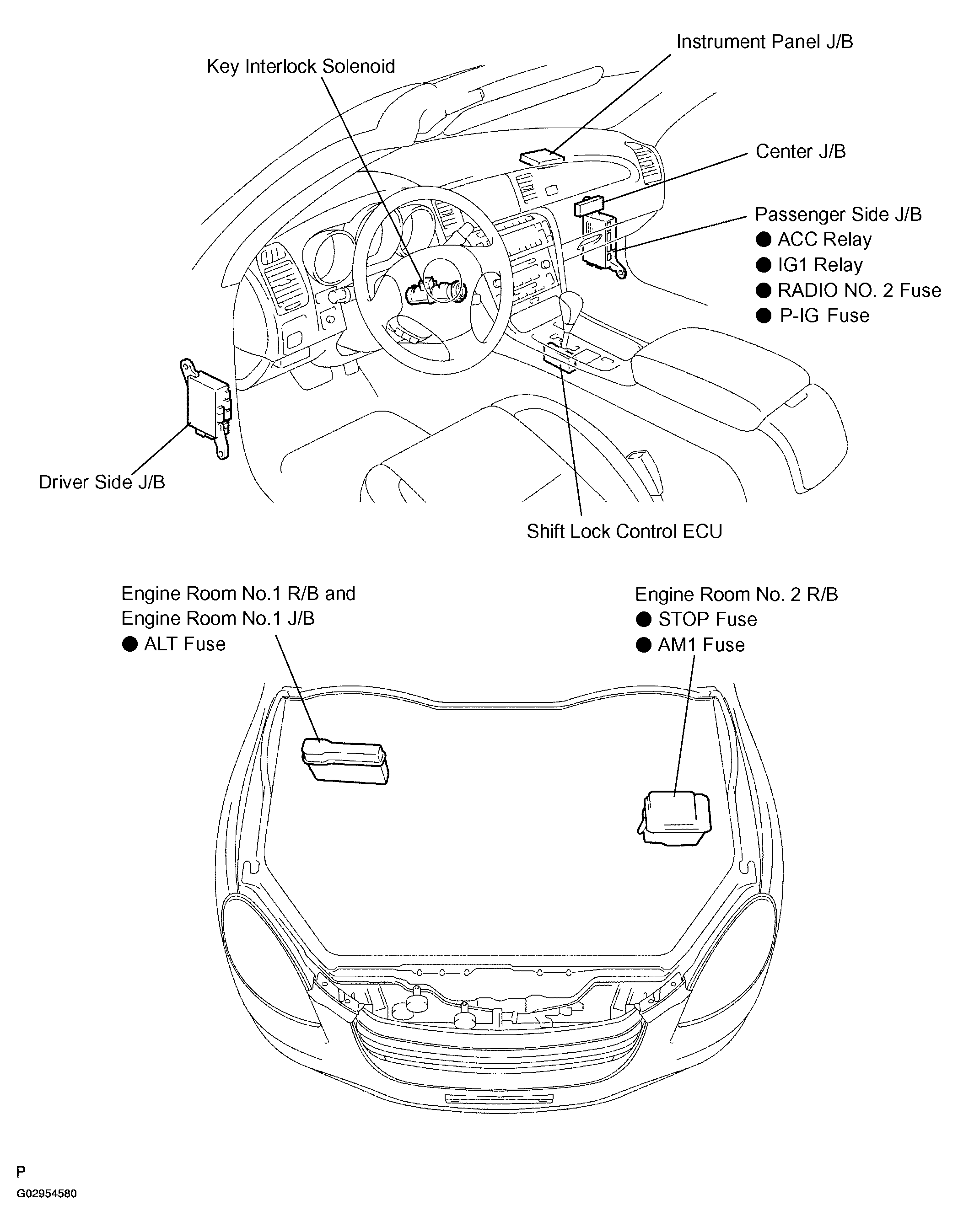

Fig 1: Identifying Location Of Shift Lock System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
