Electronic Controlled Automatic Transmission (ECT) -- Diagnostics: Location

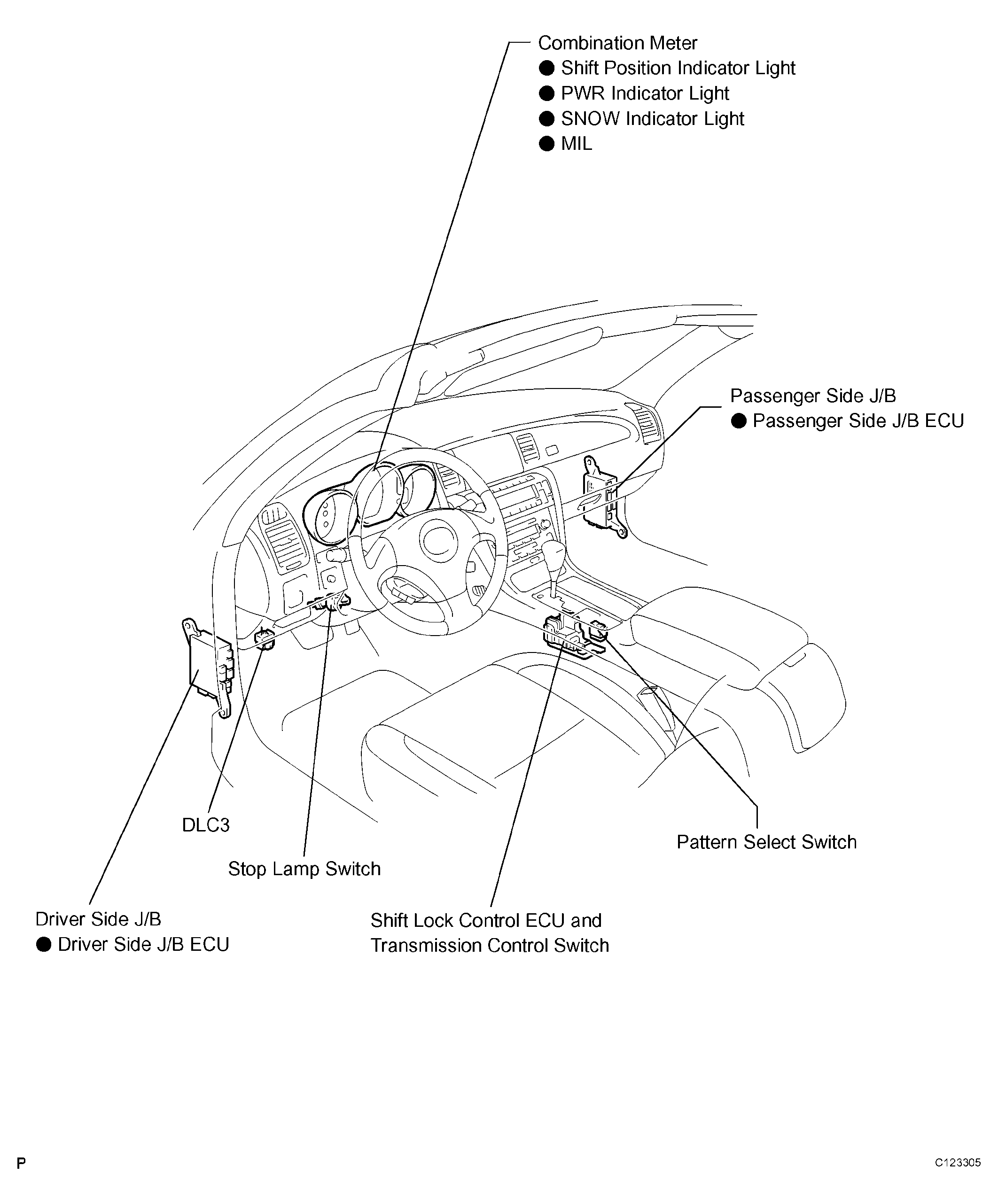

Fig 1: Identifying Electronic Controlled Automatic Transmission (ECT) Location (1 Of 2)
G04105416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

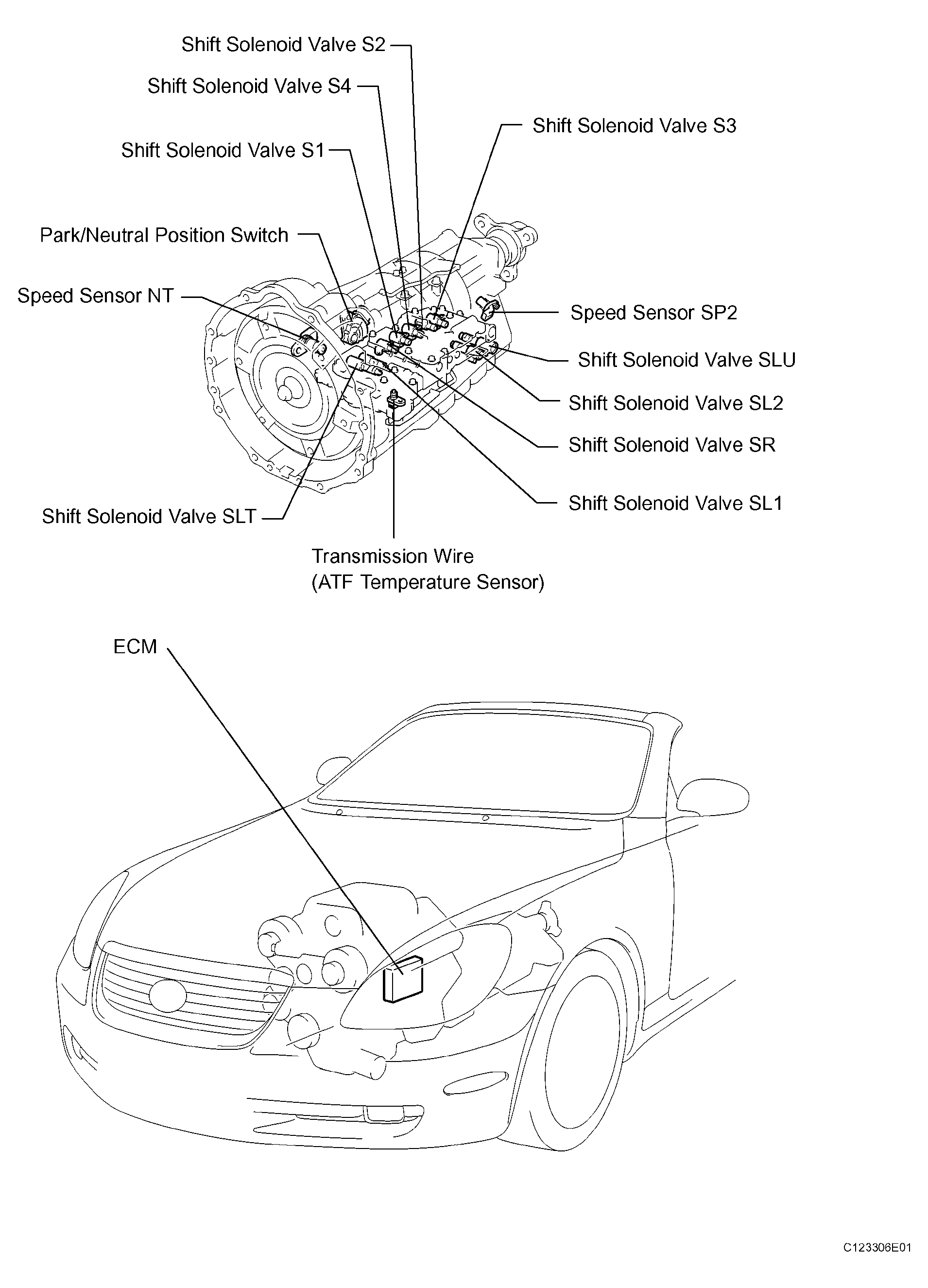

Fig 2: Identifying Electronic Controlled Automatic Transmission (ECT) Location (2 Of 2)
G04105417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
