Pattern Select Switch Circuit (PWR): Wiring Diagram

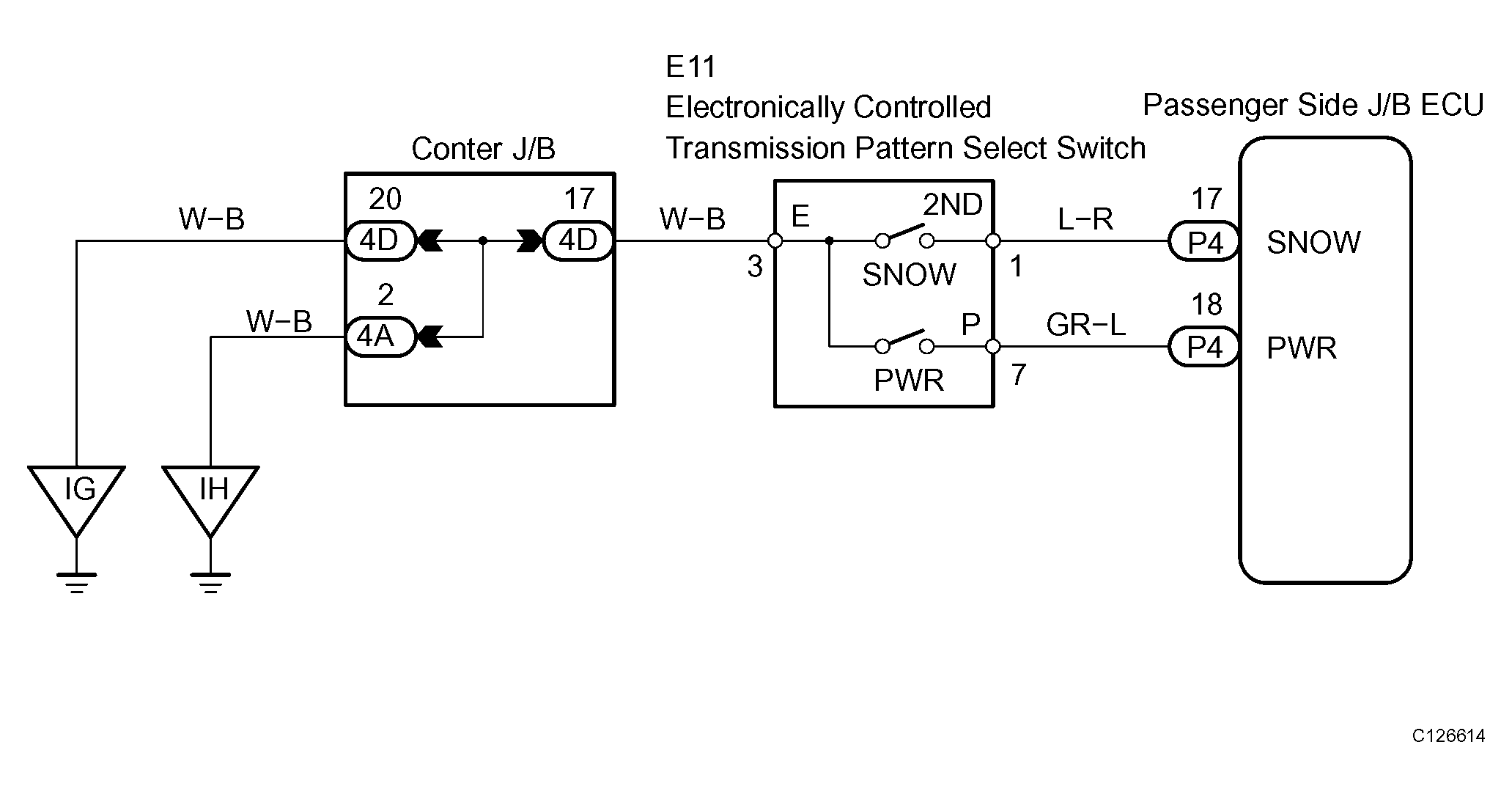

Fig 1: Wiring Diagram - Pattern Select Switch Circuit (PWR)
G04105537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
