System Diagram

The configuration of the electronic control system in the A761E automatic transmission is as shown in the following chart.

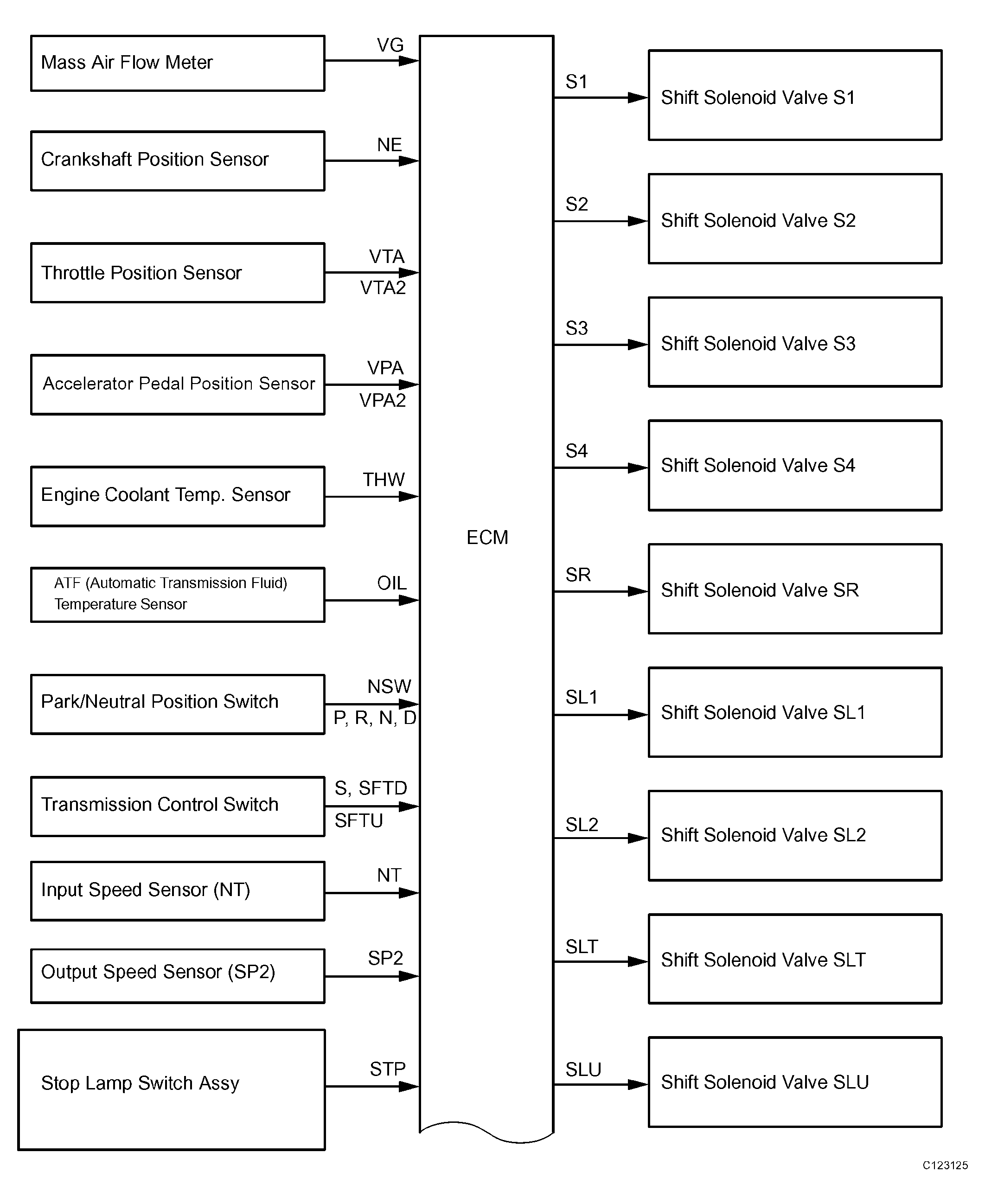

Fig 1: Electronic Controlled Automatic Transmission (ECT) System Diagram (1 Of 2)
G04105418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

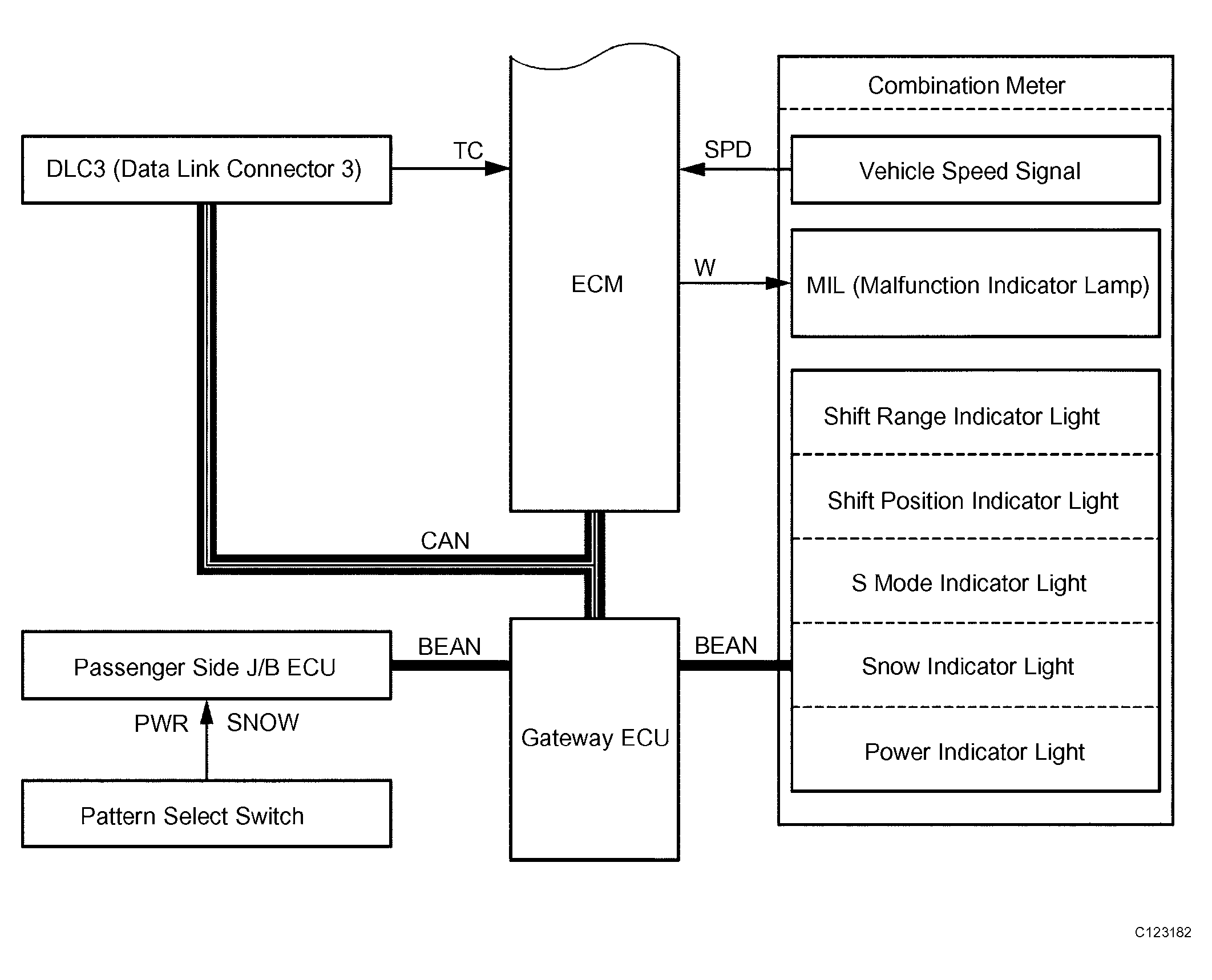

Fig 2: Electronic Controlled Automatic Transmission (ECT) System Diagram (2 Of 2)
G04105419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
