Electronic Controlled Automatic Transmission (ECT) -- Diagnostics
›
Transmission Control Switch Circuit
›
Wiring Diagram
Transmission Control Switch Circuit: Wiring Diagram

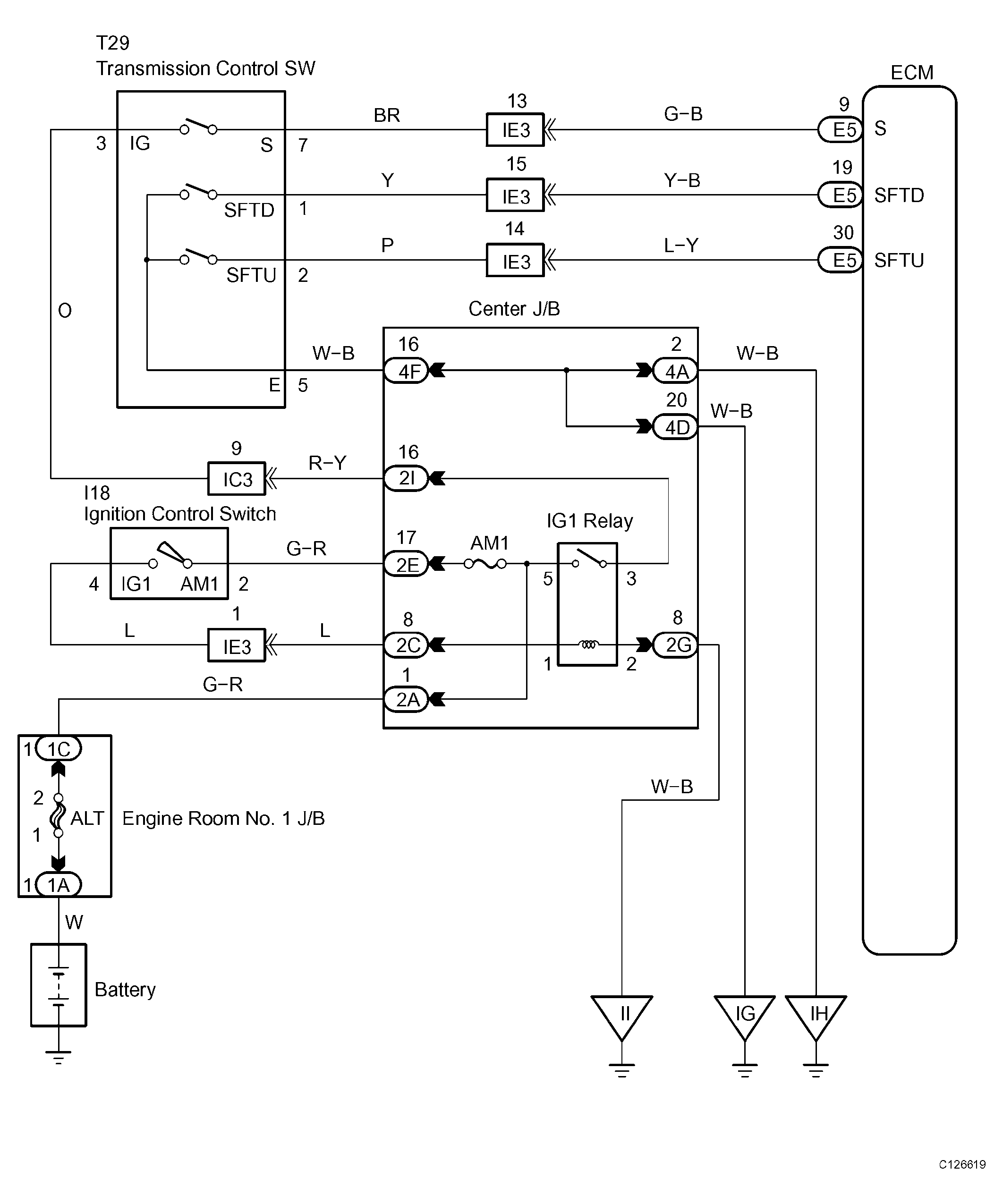

Fig 1: Wiring Diagram - Transmission Control Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
