Headlight Assembly: Components

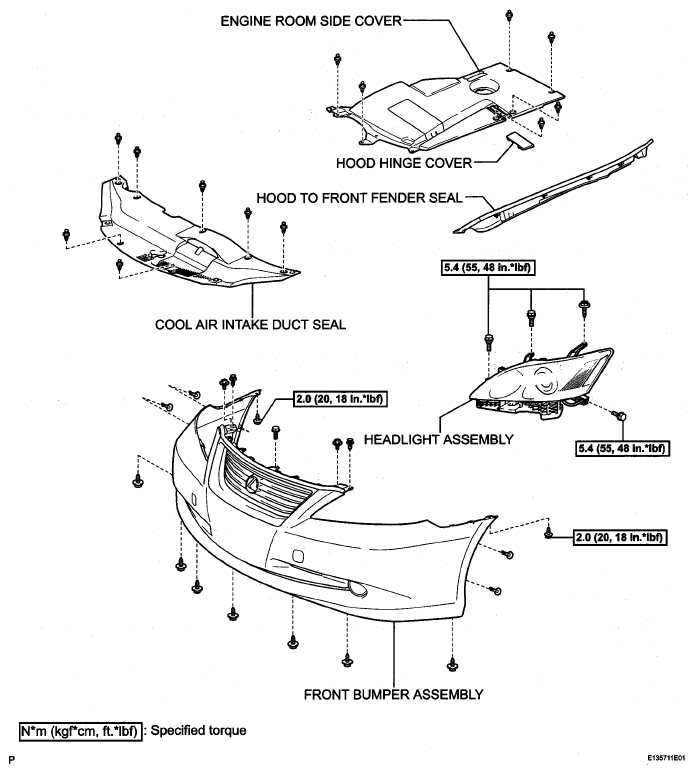

Fig 1: Headlight Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

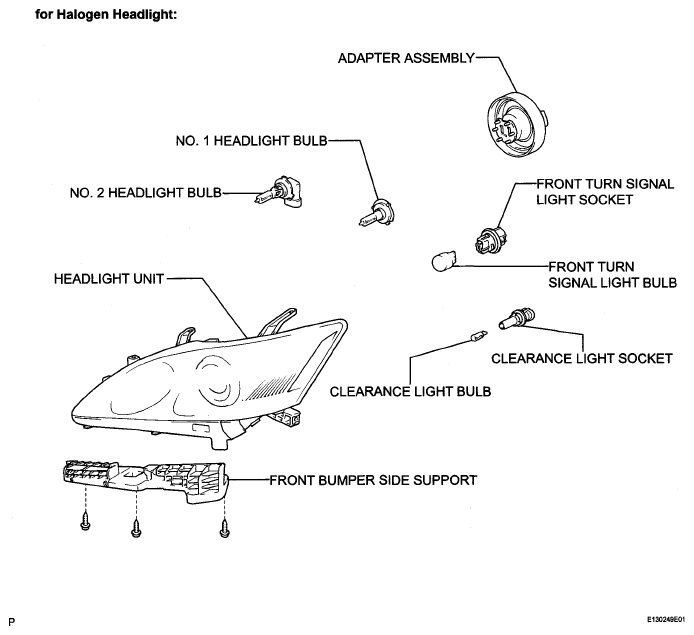

Fig 2: Identifying Headlight Components (Halogen Headlight)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

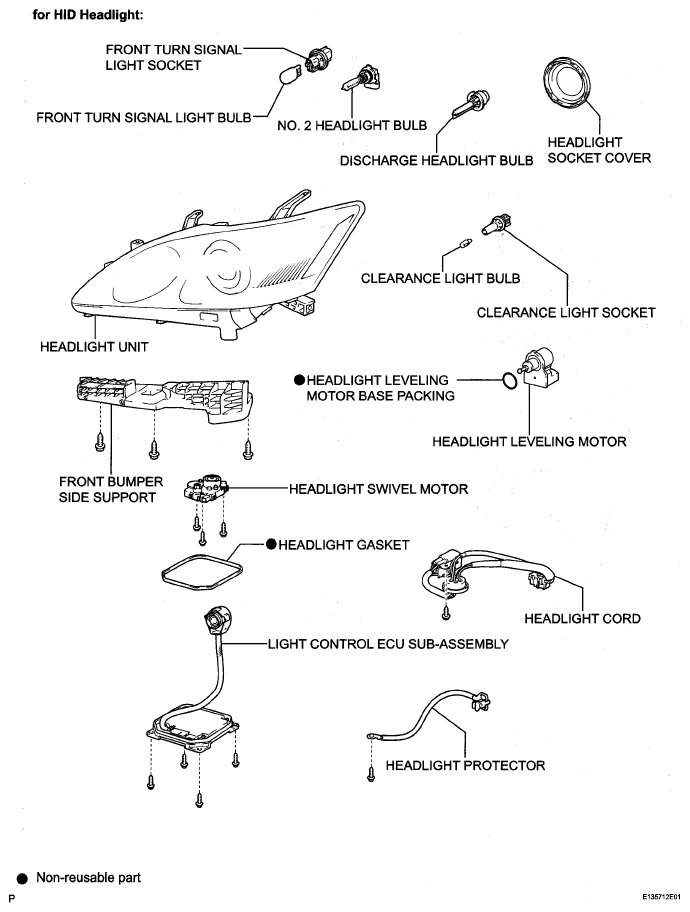

Fig 3: Identifying Headlight Components (HID Headlight)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
