Stop Light Switch: Components

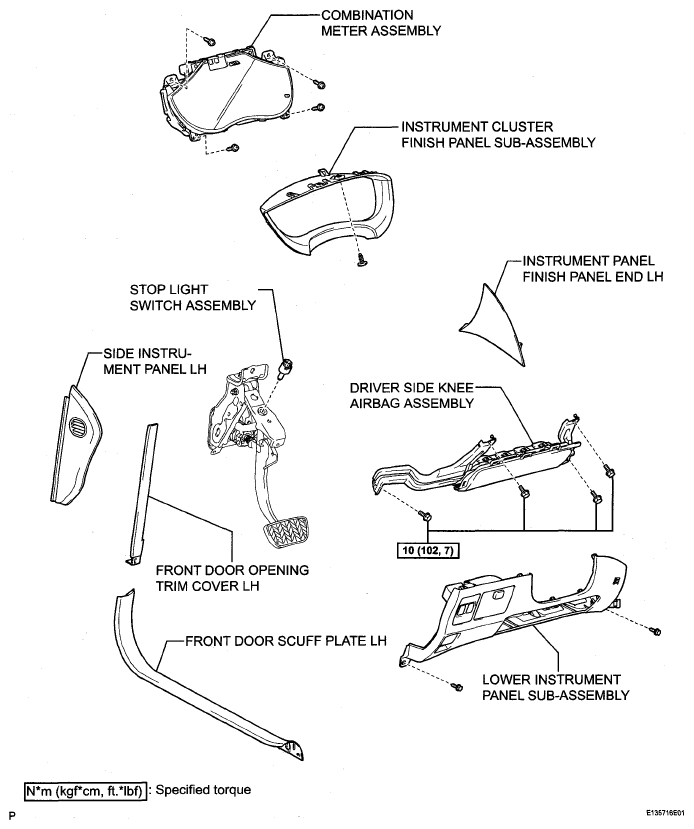

Fig 1: Stop Light Switch Replacement Components With Torque Specifications
G05252516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
