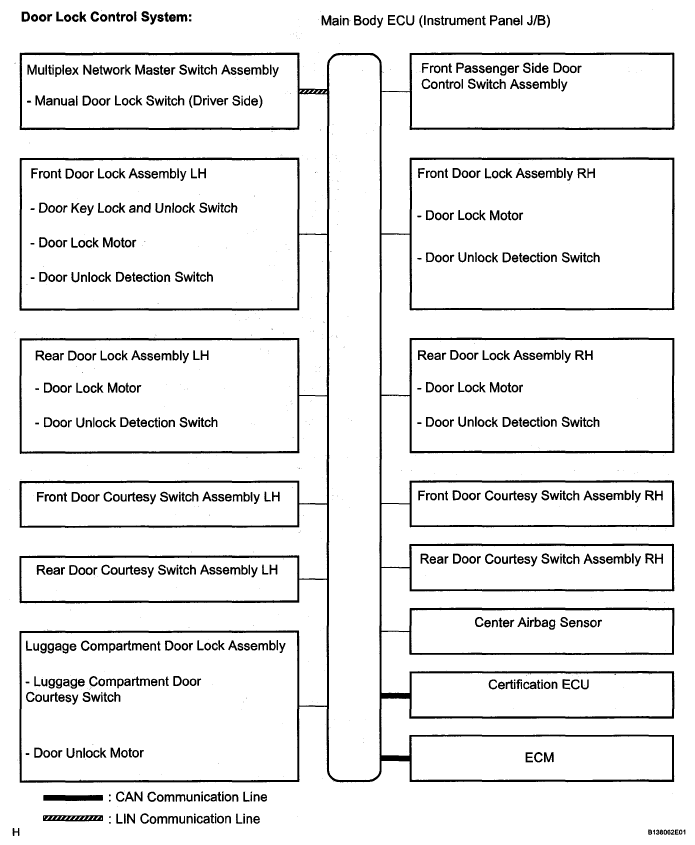

System Diagram
TRANSMITTER SIGNALS CHART
| Transmitting ECU (Transmitter) | Receiving ECU (Receiver) | Signals | Communication method |
|---|---|---|---|
| ECM | Main Body ECU | Park/Neutral Position Switch Signal | CAN |
| Certification ECU | Main Body ECU | Door Lock / Unlock Request Signal | CAN |
| Multiplex Network Master Switch | Main Body ECU | Driver Side Door Manual Lock Switch Signal | LIN |
| Main Body ECU | Multiplex Network Master Switch |
|
CAN |
