Parts Location

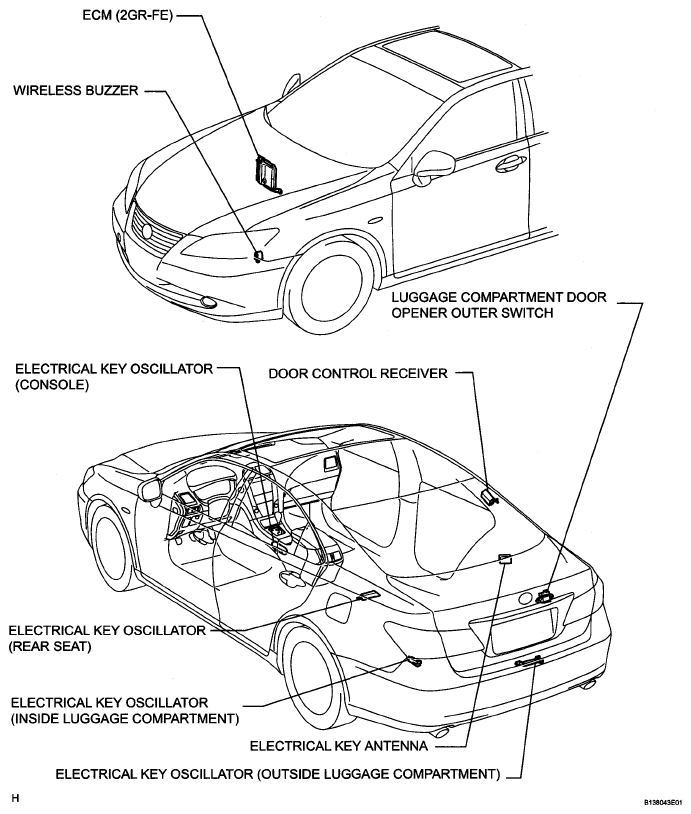

Fig 1: Identifying Smart Access System With Push-Button Start Components (1 Of 3)
G05252725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

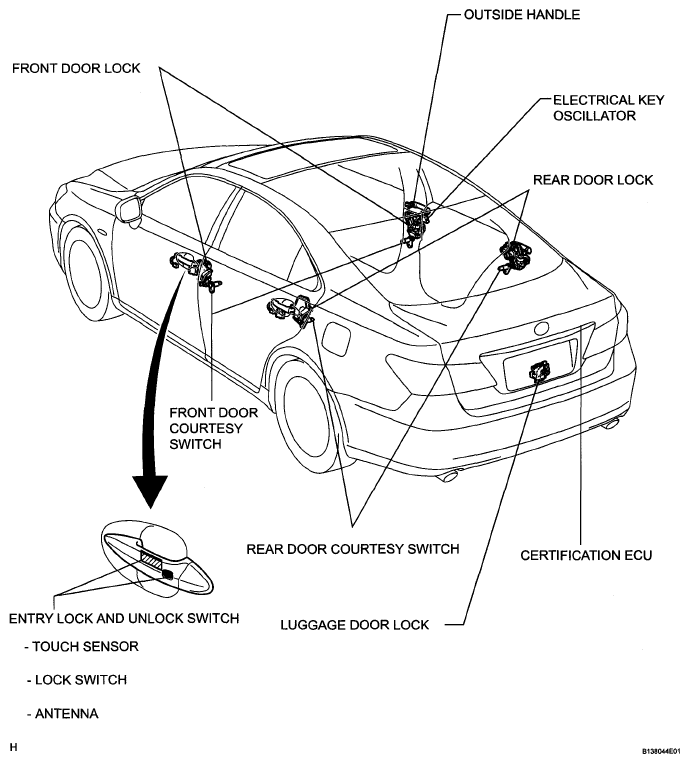

Fig 2: Identifying Smart Access System With Push-Button Start Components (2 Of 3)
G05252726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

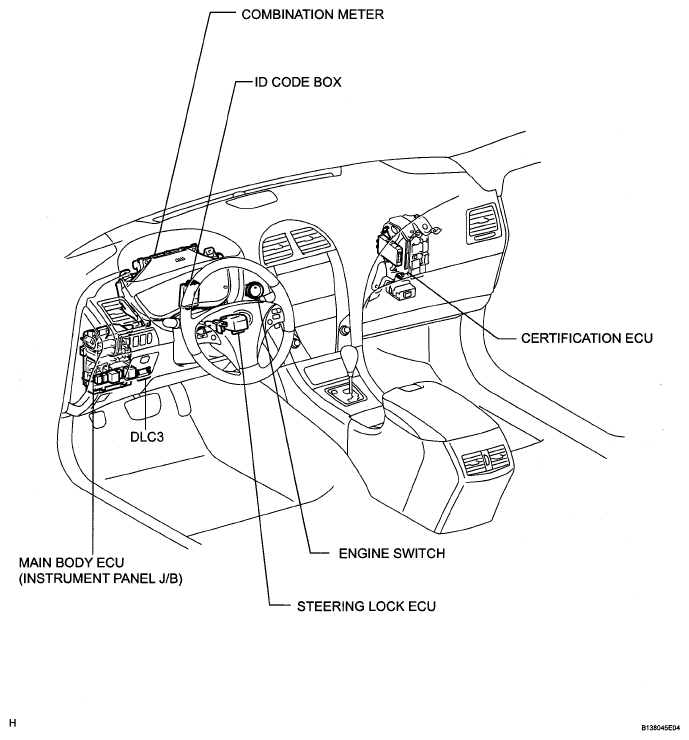

Fig 3: Identifying Smart Access System With Push-Button Start Components (3 Of 3)
G05252727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
